SAXSdb — 1i0x

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1i0x
沉积日期 deposition_date	2001-01-30
结构标题 title	;RIBONUCLEASE T1 IN COMPLEX WITH 2'GMP (FORM II CRYSTAL) ;
关键词 keywords	;Ribonuclease, RNase, metal binding, stability, 2'GMP, HYDROLASE ;; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.36 Å
回转半径 Rg (电子) rg_electron	28.26 Å
零角强度 I(0) i0	43335800.00
分子量 molecular_weight	45924.0 kDa
排除体积 excluded_volume	54889 Å³
包络体积 envelope_volume	72171 Å³
水化壳体积 shell_volume	23676 Å³
包络直径 envelope_diameter	99.4 Å
壳层 Rg shell_rg	32.07 Å
包络 Rg envelope_rg	27.90 Å
形状 Rg shape_rg	28.25 Å
总 Rg total_rg	28.67 Å
总原子数 total_atoms	3221
残基数 n_residues	415
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.4 Å
Rg (实空间) rg_real	28.64 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	4.3340e+07
I(0) 误差 (实空间) i0_real_error	6.8140e+05
Rg (倒空间) rg_reciprocal	28.55 Å
I(0) (倒空间) i0_reciprocal	43330000.0000
解质量估计 total_estimate	0.8035
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	39.6 Å
偏度 Skewness skewness	0.543
峰度 Kurtosis kurtosis	-0.020
角度范围 angular_range	— – 0.2800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	10550000.0000
实空间数据点数 n_real_points	57
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.696; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.798; Smooth: 0.559

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	GUANYL-SPECIFIC RIBONUCLEASE T1
分子量 formula_weight	11094.7 kDa
EC 编号 ec_number	3.1.27.3
突变 mutation	Q25K
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	3750

ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT

来源 Source

来源生物 organism	Aspergillus oryzae
NCBI 分类编号 ncbi_taxonomy_id	5062
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	GUANOSINE-2'-MONOPHOSPHATE
分子量 formula_weight	363.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	529

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1i0xa_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.1 — Microbial ribonucleases
超家族 Superfamily superfamily	d.1.1 — Microbial ribonucleases
家族 Family family	d.1.1.4 — Fungal ribonucleases

结构域编号 domain_id	d1i0xb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.1 — Microbial ribonucleases
超家族 Superfamily superfamily	d.1.1 — Microbial ribonucleases
家族 Family family	d.1.1.4 — Fungal ribonucleases

结构域编号 domain_id	d1i0xc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.1 — Microbial ribonucleases
超家族 Superfamily superfamily	d.1.1 — Microbial ribonucleases
家族 Family family	d.1.1.4 — Fungal ribonucleases

结构域编号 domain_id	d1i0xd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.1 — Microbial ribonucleases
超家族 Superfamily superfamily	d.1.1 — Microbial ribonucleases
家族 Family family	d.1.1.4 — Fungal ribonucleases

CATH v4.4 (4 domains)

结构域编号 domain_id	1i0xA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	30 — Microbial ribonucleases

结构域编号 domain_id	1i0xB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	30 — Microbial ribonucleases

结构域编号 domain_id	1i0xC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	30 — Microbial ribonucleases

结构域编号 domain_id	1i0xD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	30 — Microbial ribonucleases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	58.271 Å
晶胞边长 b length_b	59.696 Å
晶胞边长 c length_c	100.136 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.650 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.1921
R_work r_work	0.1903
R_free r_free	0.2160

fit	/app/data/saxs_computation/i0/1i0x/1i0x.fit
pddf	/app/data/pr_computation/i0/1i0x/1i0x.pr.out
profile	/app/data/saxs_computation/i0/1i0x/1i0x.dat

;RIBONUCLEASE T1 IN COMPLEX WITH 2'GMP (FORM II CRYSTAL) ;

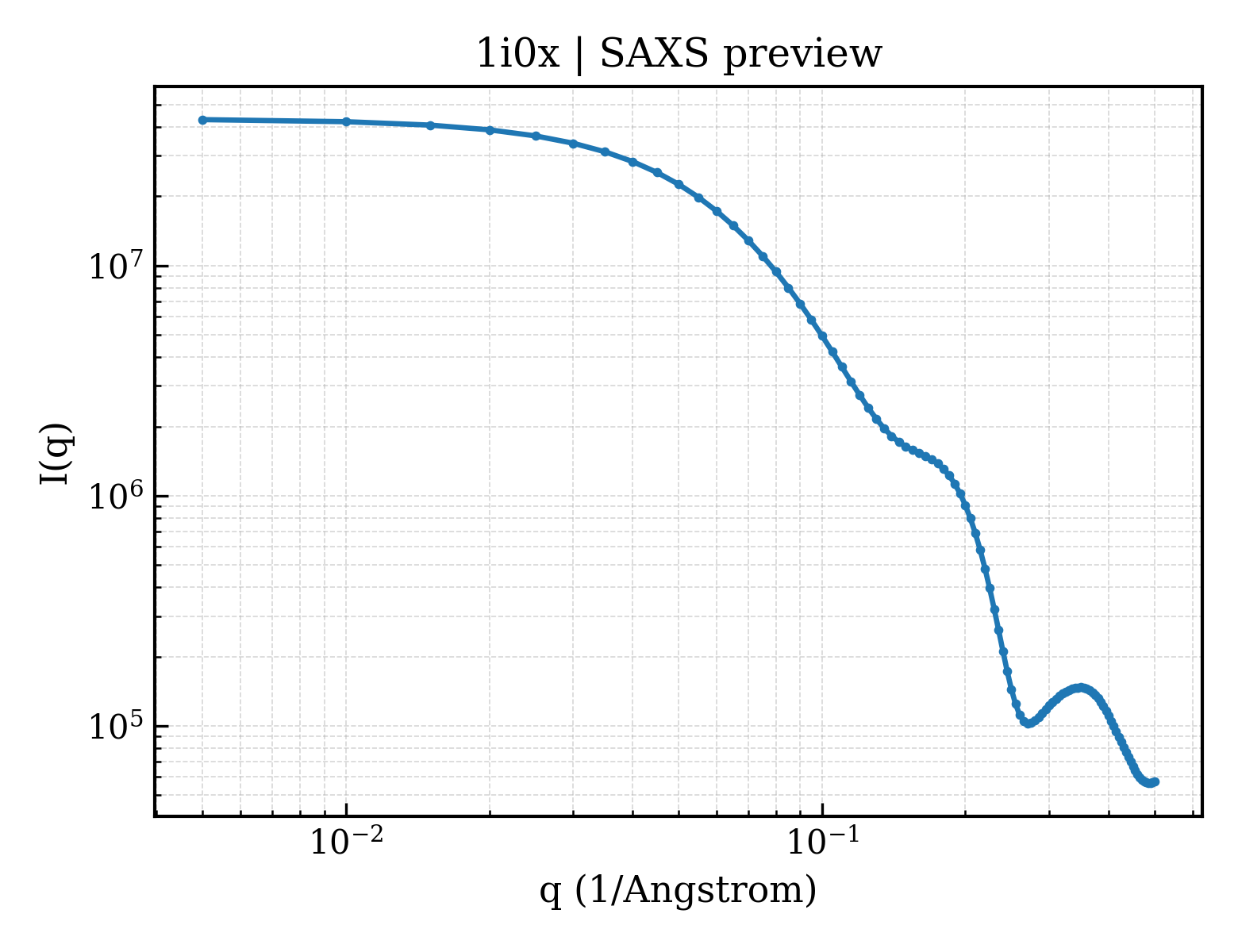

SAXS 散射曲线 SAXS Profile

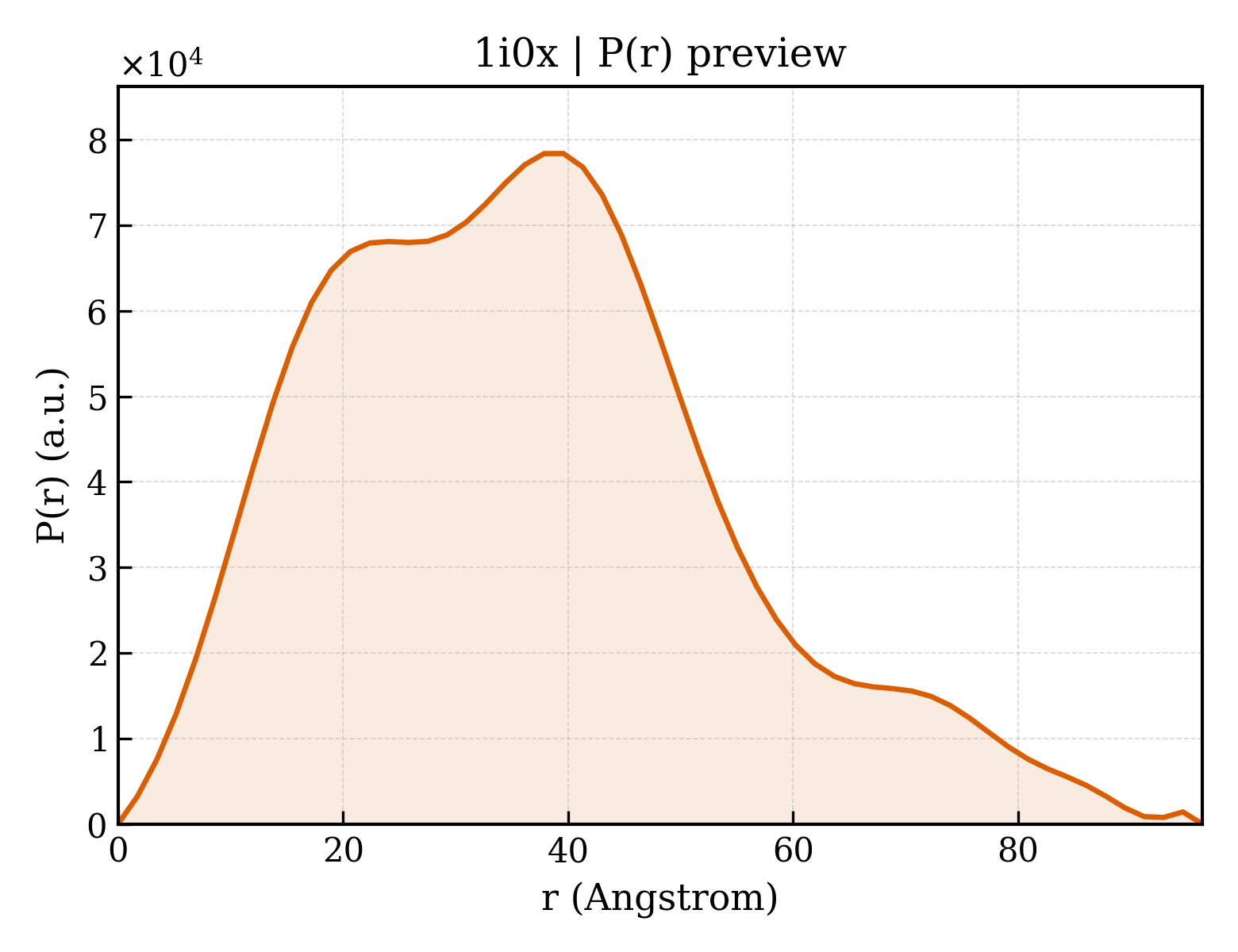

P(r) 距离分布 P(r) Distribution
