9rnt
RIBONUCLEASE T1 WITH FREE RECOGNITION AND CATALYTIC SITE: CRYSTAL STRUCTURE ANALYSIS AT 1.5 ANGSTROMS RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9rnt |
| deposition_date | 1991-09-25 |
| title | RIBONUCLEASE T1 WITH FREE RECOGNITION AND CATALYTIC SITE: CRYSTAL STRUCTURE ANALYSIS AT 1.5 ANGSTROMS RESOLUTION |
| keywords | HYDROLASE(ENDORIBONUCLEASE); HYDROLASE(ENDORIBONUCLEASE) |
| method | X-RAY DIFFRACTION |
Download Data

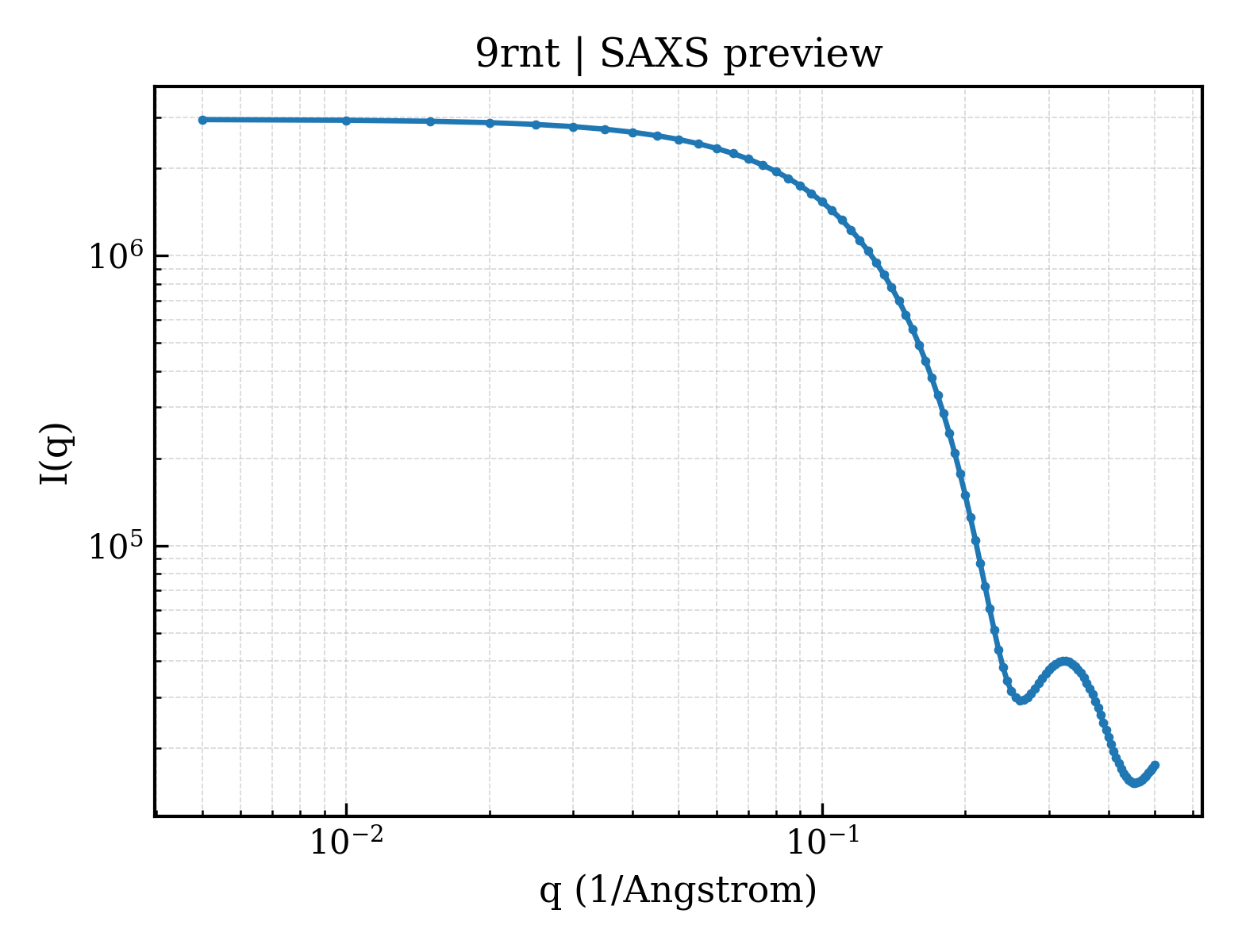

2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.87 Å |
| rg_electron | 12.38 Å |
| i0 | 2950990.00 |
| molecular_weight | 11088.0 kDa |
| excluded_volume | 13394 ų |
| envelope_volume | 14846 ų |
| shell_volume | 10293 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 17.96 Å |
| envelope_rg | 12.60 Å |
| shape_rg | 12.32 Å |
| total_rg | 13.71 Å |
| total_atoms | 780 |
| n_residues | 104 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

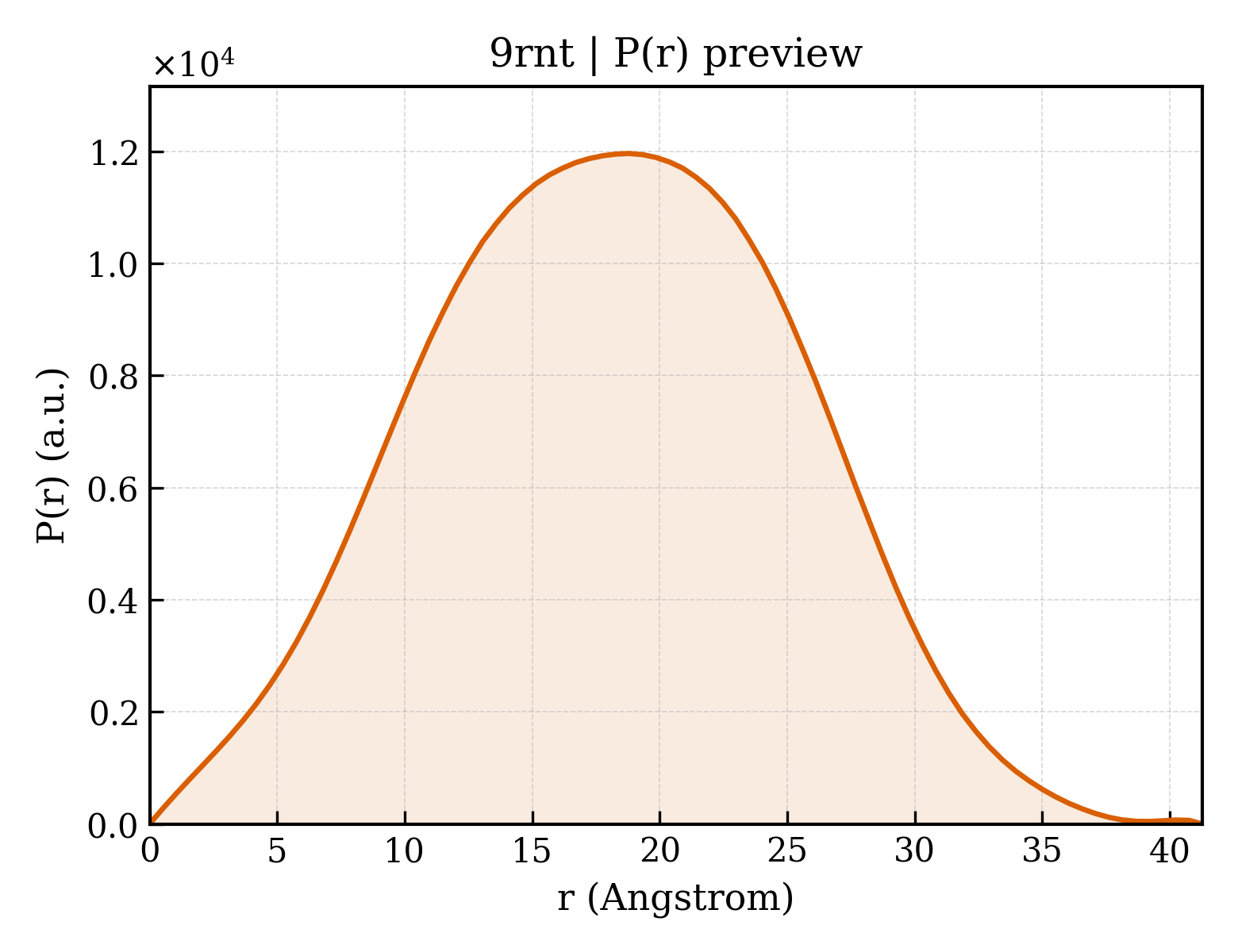

3. P(r) Analysis (GNOM)
| dmax | 41.3 Å |
| rg_real | 13.74 Å |
| rg_real_error | 0.17 Å |
| i0_real | 2.9510e+06 |
| i0_real_error | 3.0070e+04 |
| rg_reciprocal | 13.75 Å |
| i0_reciprocal | 2951000.0000 |
| total_estimate | 0.9052 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 18.8 Å |
| skewness | 0.015 |
| kurtosis | -0.492 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 634100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.994 |
