SAXSdb — 1chp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHOLERA TOXIN B PENTAMER

Vibrio cholerae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	CHLORIDE ION × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CHTB_VIBCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–103； UniProt 22–124 Author chain E； PDBConstruct 1–103； UniProt 22–124 Author chain F； PDBConstruct 1–103； UniProt 22–124 Author chain G； PDBConstruct 1–103； UniProt 22–124 Author chain H； PDBConstruct 1–103； UniProt 22–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1chp
Deposition date deposition_date	1995-02-15
Structure title title	SURPRISING LEADS FOR A CHOLERA TOXIN RECEPTOR BINDING ANTAGONIST; CRYSTALLOGRAPHIC STUDIES OF CTB MUTANTS
Keywords keywords	TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1chp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1chp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

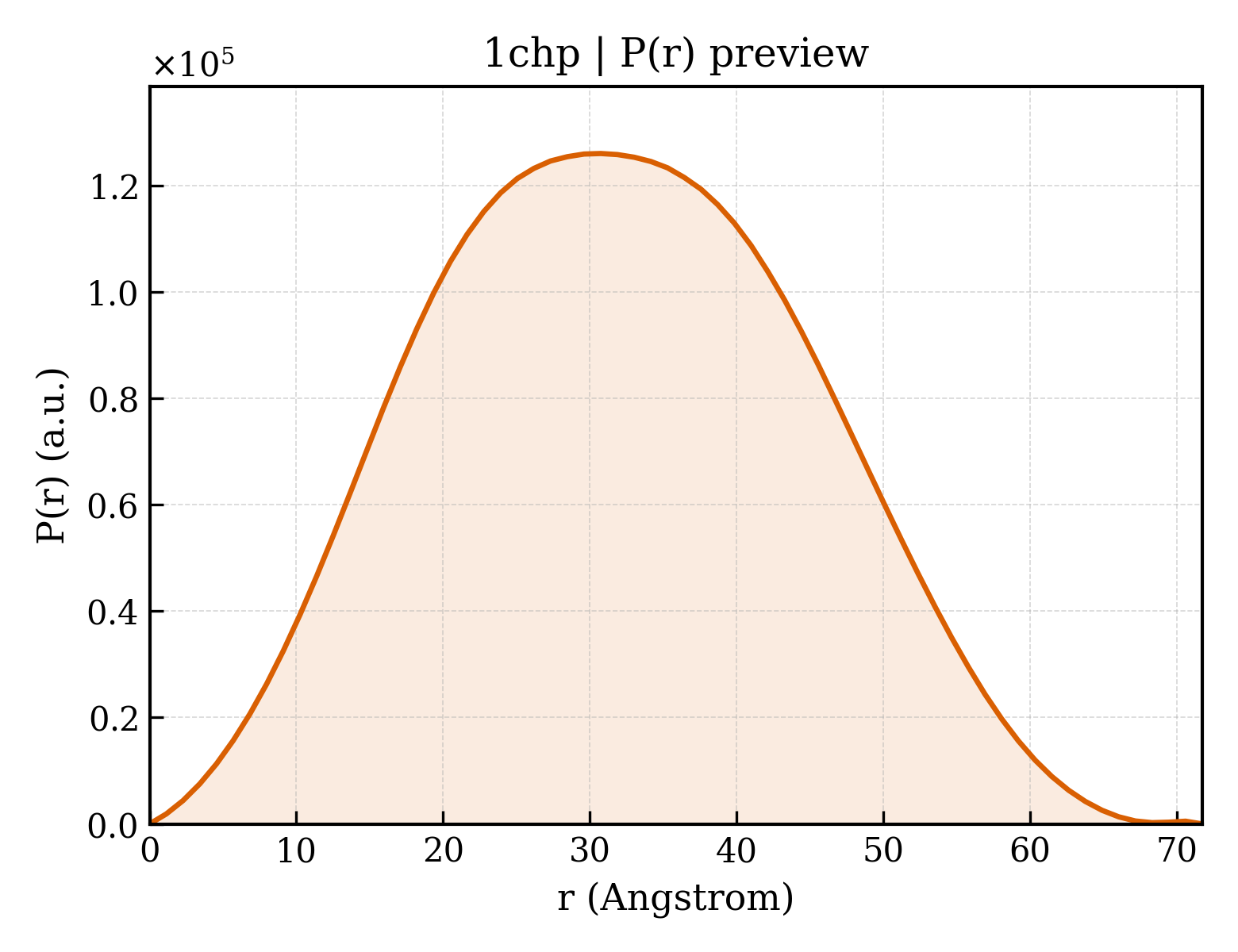

1chp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.50 Å
Rg (electron density)	23.15 Å
Total Rg	23.90 Å
Atom count	4091
Residues	515
Excluded volume	72835 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1chp__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CHOLERA TOXIN B PENTAMER
Molecular weight formula_weight	11681.3 kDa
Mutation mutation	G33D
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,G,H
Atom count atom_count	4339

TPQNITDLCAEYHNTQIHTLNDKIFSYTESLADKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN

Source Source

Source organism organism	Vibrio cholerae
NCBI taxonomy ID ncbi_taxonomy_id	666
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	248

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1chpd_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1chpe_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1chpf_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1chpg_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1chph_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

CATH v4.4 (5 domains)

Domain ID domain_id	1chpD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1chpE00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1chpF00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1chpG00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1chpH00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

▶

Unit-cell length a length_a	102.600 Å
Unit-cell length b length_b	66.610 Å
Unit-cell length c length_c	99.710 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	131.57 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.1780
R_work r_work	0.1780
R_free r_free	—

SURPRISING LEADS FOR A CHOLERA TOXIN RECEPTOR BINDING ANTAGONIST; CRYSTALLOGRAPHIC STUDIES OF CTB MUTANTS
