SAXSdb — 1rcv

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rcv
沉积日期 deposition_date	2003-11-04
结构标题 title	Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV1
关键词 keywords	Bivalent, Cholera, Toxin, Pentamer, Complex; TOXIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.58 Å
回转半径 Rg (电子) rg_electron	23.24 Å
零角强度 I(0) i0	60398100.00
分子量 molecular_weight	59926.0 kDa
排除体积 excluded_volume	74694 Å³
包络体积 envelope_volume	86667 Å³
水化壳体积 shell_volume	29988 Å³
包络直径 envelope_diameter	69.5 Å
壳层 Rg shell_rg	30.96 Å
包络 Rg envelope_rg	23.02 Å
形状 Rg shape_rg	23.27 Å
总 Rg total_rg	23.95 Å
总原子数 total_atoms	4202
残基数 n_residues	515
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	70.1 Å
Rg (实空间) rg_real	24.38 Å
Rg 误差 (实空间) rg_real_error	0.31 Å
I(0) (实空间) i0_real	6.0400e+07
I(0) 误差 (实空间) i0_real_error	7.8690e+05
Rg (倒空间) rg_reciprocal	24.43 Å
I(0) (倒空间) i0_reciprocal	60400000.0000
解质量估计 total_estimate	0.9151
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.3 Å
偏度 Skewness skewness	0.061
峰度 Kurtosis kurtosis	-0.652
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	23690000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.988; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.939

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	cholera toxin B protein (CTB)
分子量 formula_weight	11623.3 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F,G,H
原子数 atom_count	4668

TPQNITDLCAEYHNTQIHTLNDKIFSYTESLAGKREMAIITFKNGATFQVEVPGSQHIDSQKKAIERMKDTLRIAYLTEAKVEKLCVWNNKTPHAIAAISMAN

来源 Source

来源生物 organism	Vibrio cholerae
NCBI 分类编号 ncbi_taxonomy_id	666
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;[3-(4-{3-[3-NITRO-5-(GALACTOPYRANOSYLOXY)-BENZOYLAMINO]-PROPYL}-PIPERAZIN-1-YL)-PROPYLAMINO] -2-(3-{4-[3-(3-NITRO-5-[GALACTOPYRANOSYLOXY]-BENZOYLAMINO)-PROPYL]-PIPERAZIN-1-YL} -PROPYL-AMINO)-3,4-DIOXO-CYCLOBUTENE ;
分子量 formula_weight	1133.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	466

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1rcvd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.2 — Bacterial enterotoxins
家族 Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

结构域编号 domain_id	d1rcve_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.2 — Bacterial enterotoxins
家族 Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

结构域编号 domain_id	d1rcvf_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.2 — Bacterial enterotoxins
家族 Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

结构域编号 domain_id	d1rcvg_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.2 — Bacterial enterotoxins
家族 Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

结构域编号 domain_id	d1rcvh_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.40 — OB-fold
超家族 Superfamily superfamily	b.40.2 — Bacterial enterotoxins
家族 Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

CATH v4.4 (5 domains)

结构域编号 domain_id	1rcvD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	110 —

结构域编号 domain_id	1rcvE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	110 —

结构域编号 domain_id	1rcvF00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	110 —

结构域编号 domain_id	1rcvG00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	110 —

结构域编号 domain_id	1rcvH00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	110 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	101.829 Å
晶胞边长 b length_b	66.133 Å
晶胞边长 c length_c	77.771 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.62 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	20

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.600 Å
最低分辨率 resolution_low	41.520 Å
R 因子 r_factor	0.1656
R_work r_work	0.1641
R_free r_free	0.1934

fit	/app/data/saxs_computation/rc/1rcv/1rcv.fit
pddf	/app/data/pr_computation/rc/1rcv/1rcv.pr.out
profile	/app/data/saxs_computation/rc/1rcv/1rcv.dat

Cholera Toxin B-Pentamer Complexed With Bivalent Nitrophenol-Galactoside Ligand BV1

SAXS 散射曲线 SAXS Profile

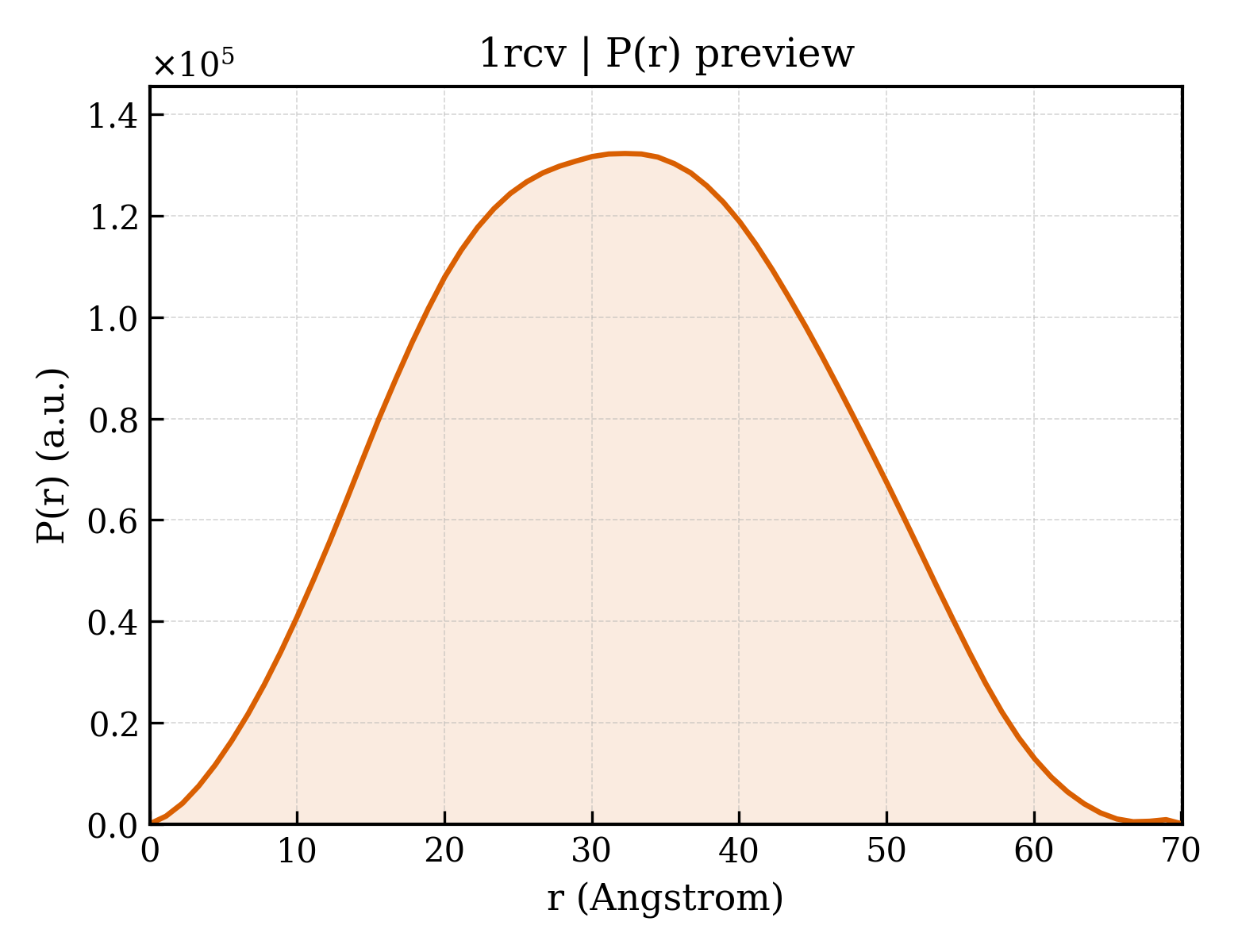

P(r) 距离分布 P(r) Distribution
