1cj7
T11V MUTANT HUMAN LYSOZYME
SAXS Profile

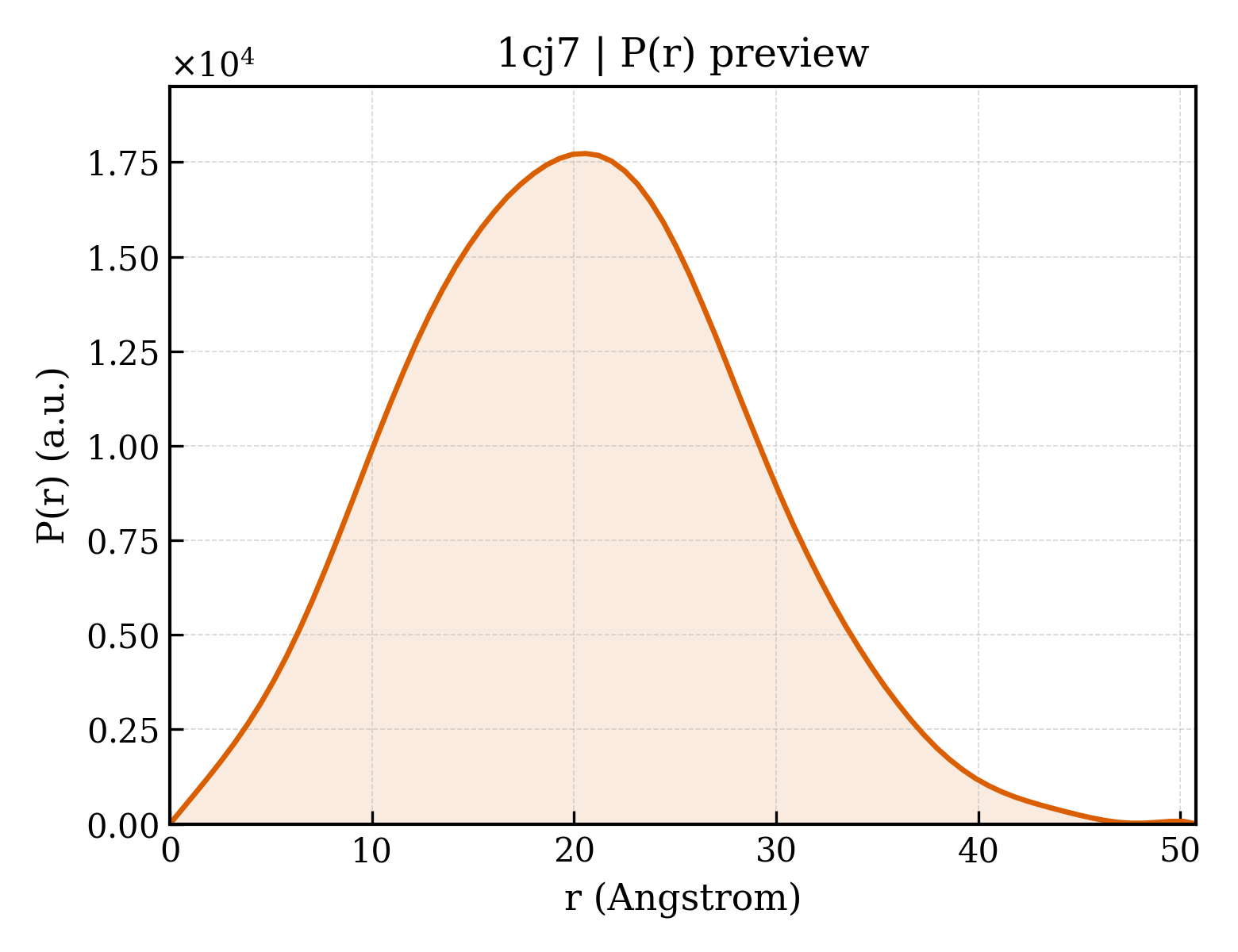

P(r) Distribution
1. Structure Basics
| entry_id | 1cj7 |
| deposition_date | 1999-04-22 |
| title | T11V MUTANT HUMAN LYSOZYME |
| keywords | STABILITY, HYDROGEN BOND, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.51 Å |
| rg_electron | 14.14 Å |
| i0 | 4811520.00 |
| molecular_weight | 14730.0 kDa |
| excluded_volume | 18031 ų |
| envelope_volume | 20269 ų |
| shell_volume | 12267 ų |
| envelope_diameter | 49.9 Å |
| shell_rg | 19.73 Å |
| envelope_rg | 14.43 Å |
| shape_rg | 14.12 Å |
| total_rg | 15.25 Å |
| total_atoms | 1030 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 15.43 Å |
| rg_real_error | 0.25 Å |
| i0_real | 4.8120e+06 |
| i0_real_error | 5.9210e+04 |
| rg_reciprocal | 15.43 Å |
| i0_reciprocal | 4812000.0000 |
| total_estimate | 0.8838 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.6 Å |
| skewness | 0.184 |
| kurtosis | -0.296 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 813300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.983 |
