1ckd
T43V MUTANT HUMAN LYSOZYME
SAXS Profile

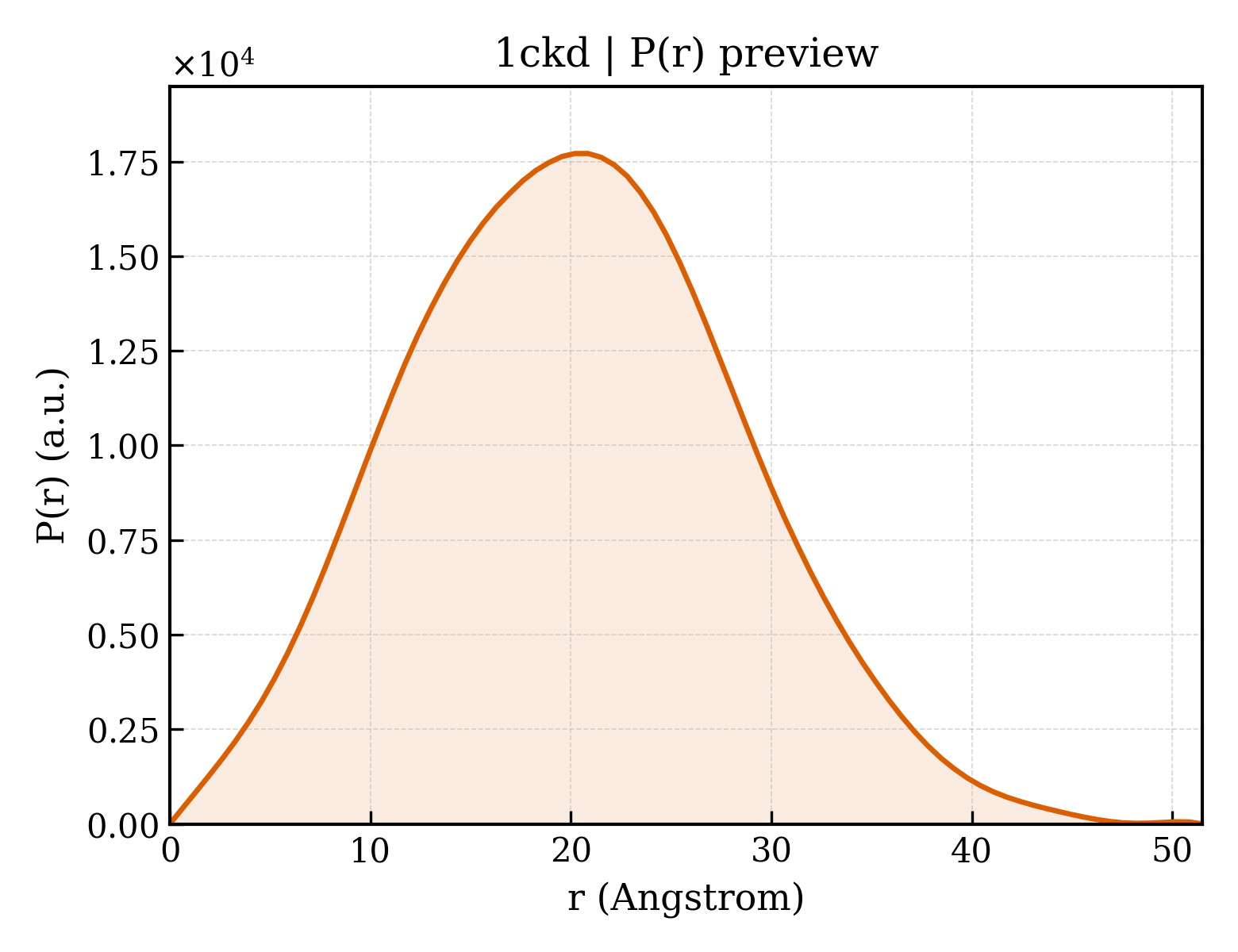

P(r) Distribution
1. Structure Basics
| entry_id | 1ckd |
| deposition_date | 1999-04-22 |
| title | T43V MUTANT HUMAN LYSOZYME |
| keywords | STABILITY, HYDROGEN BOND, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.50 Å |
| rg_electron | 14.13 Å |
| i0 | 4798960.00 |
| molecular_weight | 14730.0 kDa |
| excluded_volume | 18031 ų |
| envelope_volume | 20264 ų |
| shell_volume | 12268 ų |
| envelope_diameter | 49.7 Å |
| shell_rg | 19.78 Å |
| envelope_rg | 14.42 Å |
| shape_rg | 14.12 Å |
| total_rg | 15.25 Å |
| total_atoms | 1030 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.5 Å |
| rg_real | 15.42 Å |
| rg_real_error | 0.31 Å |
| i0_real | 4.7990e+06 |
| i0_real_error | 5.3940e+04 |
| rg_reciprocal | 15.43 Å |
| i0_reciprocal | 4799000.0000 |
| total_estimate | 0.8785 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 50.2 Å |
| skewness | 0.187 |
| kurtosis | -0.284 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 827300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.808; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.993 |
