1ckf
T52A MUTANT HUMAN LYSOZYME
SAXS Profile

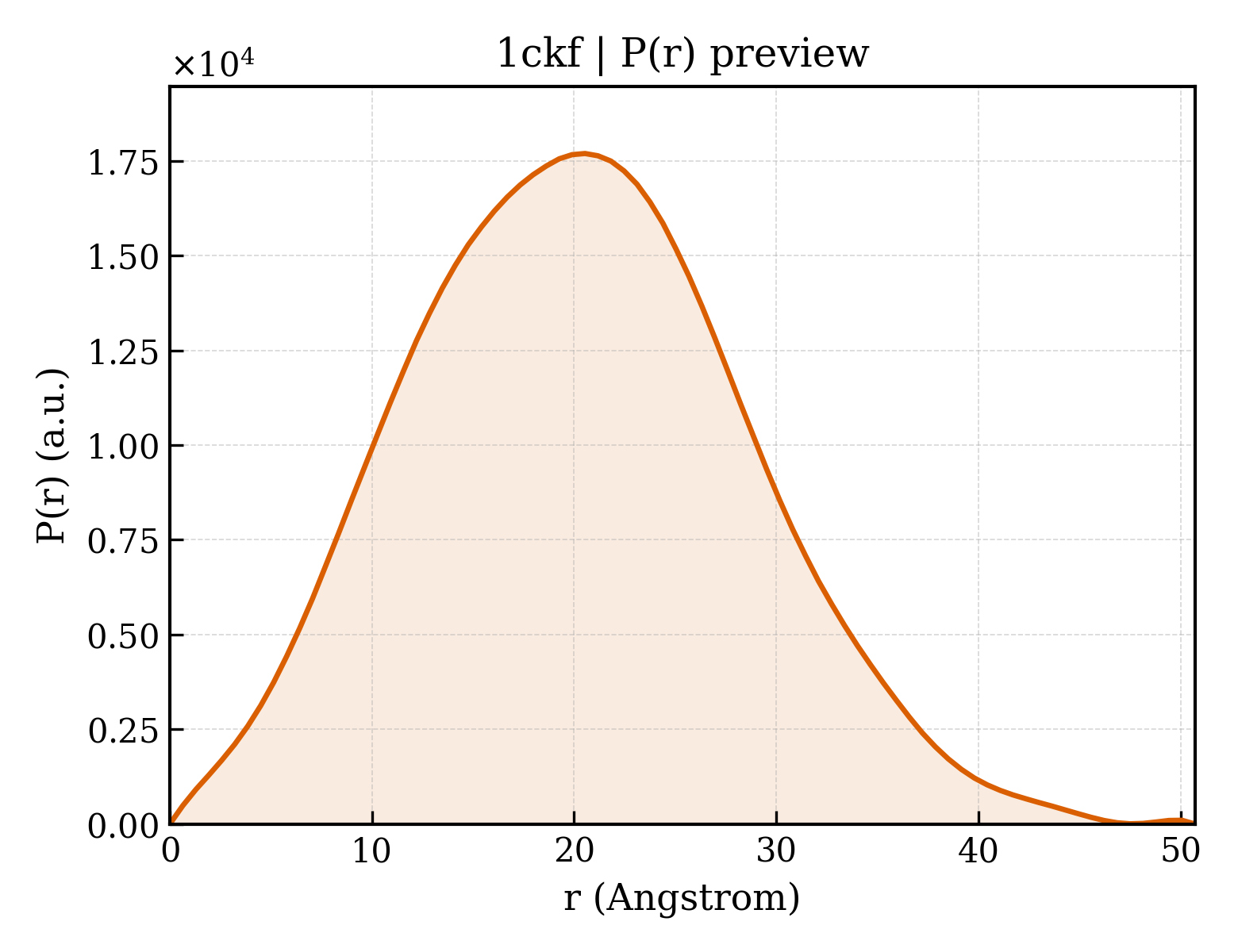

P(r) Distribution
1. Structure Basics
| entry_id | 1ckf |
| deposition_date | 1999-04-22 |
| title | T52A MUTANT HUMAN LYSOZYME |
| keywords | STABILITY, HYDROGEN BOND, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.49 Å |
| rg_electron | 14.13 Å |
| i0 | 4797420.00 |
| molecular_weight | 14702.0 kDa |
| excluded_volume | 17977 ų |
| envelope_volume | 20116 ų |
| shell_volume | 12197 ų |
| envelope_diameter | 49.8 Å |
| shell_rg | 19.79 Å |
| envelope_rg | 14.43 Å |
| shape_rg | 14.11 Å |
| total_rg | 15.24 Å |
| total_atoms | 1028 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.7 Å |
| rg_real | 15.42 Å |
| rg_real_error | 0.37 Å |
| i0_real | 4.7970e+06 |
| i0_real_error | 5.9060e+04 |
| rg_reciprocal | 15.42 Å |
| i0_reciprocal | 4797000.0000 |
| total_estimate | 0.8809 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.5 Å |
| skewness | 0.197 |
| kurtosis | -0.273 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 805100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.955 |
