1cks
HUMAN CKSHS2 ATOMIC STRUCTURE: A ROLE FOR ITS HEXAMERIC ASSEMBLY IN CELL CYCLE CONTROL
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cks |
| deposition_date | 1993-09-16 |
| title | HUMAN CKSHS2 ATOMIC STRUCTURE: A ROLE FOR ITS HEXAMERIC ASSEMBLY IN CELL CYCLE CONTROL |
| keywords | CELL DIVISION; CELL DIVISION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.71 Å |
| rg_electron | 22.58 Å |
| i0 | 15406200.00 |
| molecular_weight | 28962.0 kDa |
| excluded_volume | 36179 ų |
| envelope_volume | 59098 ų |
| shell_volume | 22661 ų |
| envelope_diameter | 71.5 Å |
| shell_rg | 28.65 Å |
| envelope_rg | 21.99 Å |
| shape_rg | 22.52 Å |
| total_rg | 23.70 Å |
| total_atoms | 2046 |
| n_residues | 230 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

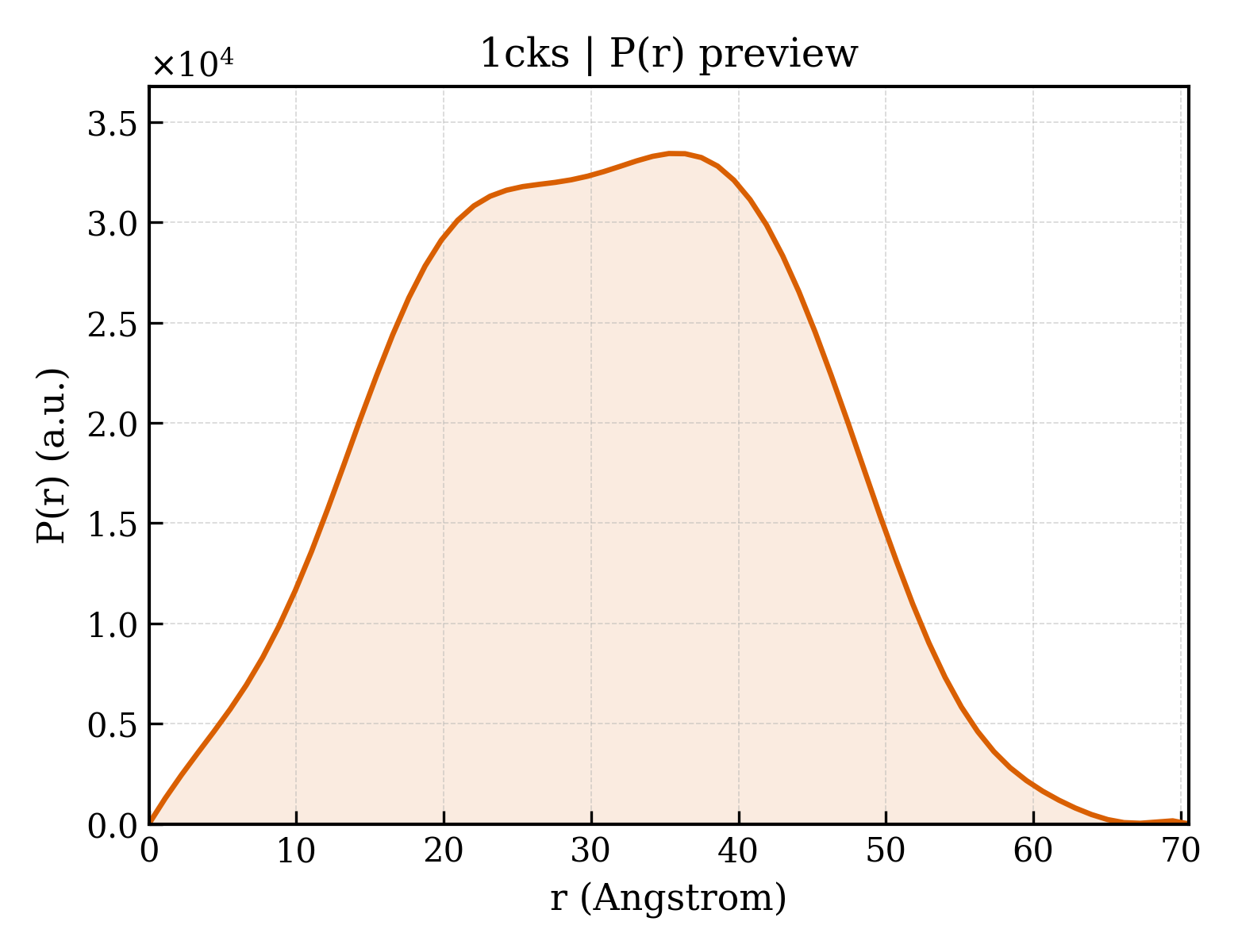

3. P(r) Analysis (GNOM)
| dmax | 70.6 Å |
| rg_real | 23.54 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.5410e+07 |
| i0_real_error | 1.9430e+05 |
| rg_reciprocal | 23.59 Å |
| i0_reciprocal | 15410000.0000 |
| total_estimate | 0.7434 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 35.3 Å |
| skewness | 0.003 |
| kurtosis | -0.659 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3140000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 0.286; Positv: 1.000; Valcen: 0.992; Smooth: 0.963 |
