SAXSdb — 1ckt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIGH MOBILITY GROUP 1 PROTEIN

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 7–77	Fragment：RESIDUES 8-78, DOMAIN A	;DNA (5'-D(CPCP(5IU)PCPTPCPTPGPGPAPCPCPTPTPCPC)-3') ; × 1 ;DNA (5'-D(GPGPAPAPGPGPTPCPCPAPGPAPGPAPGPG)-3') ; × 1 CPT Cisplatin × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；CRYSTALS WERE OBTAINED FROM A SOLUTION THAT CONTAINED HEPES, MAGNESIUM ACETATE, PEG 3350, GLYCEROL AND DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CKT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AAB NMR STRUCTURE OF RAT HMG1 HMGA FRAGMENT Deposited 1995-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–83（83 aa） Fragment：FRAGMENT A (RESIDUES 1 - 83)	Mutation：C22S	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1HME STRUCTURE OF THE HMG BOX MOTIF IN THE B-DOMAIN OF HMG1 Deposited 1994-02-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 88–164（77 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1HMF STRUCTURE OF THE HMG BOX MOTIF IN THE B-DOMAIN OF HMG1 Deposited 1994-03-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 88–164（77 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
4QR9 Crystal structure of two HMGB1 Box A domains cooperating to underwind and kink a DNA Deposited 2014-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric	Chain A 8–81（74 aa） Fragment：Residues 8-81 Chain B 8–81（74 aa） Fragment：Residues 8-81	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.025M Sodium Cacodylate 0.020M Magnesium Chloride 2.5% MPD (equilibrated against 40% MPD), pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.234

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HMG1_RAT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–71； UniProt 7–77

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ckt
Deposition date deposition_date	1999-04-23
Structure title title	CRYSTAL STRUCTURE OF HMG1 DOMAIN A BOUND TO A CISPLATIN-MODIFIED DNA DUPLEX
Keywords keywords	HIGH-MOBILITY GROUP DOMAIN, BENT DNA, PROTEIN-DRUG-DNA COMPLEX, GENE REGULATION-DNA COMPLEX; GENE REGULATION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.38 Å
Radius of gyration Rg (electron density) rg_electron	16.81 Å
Forward intensity I(0) i0	11612300.00
Molecular weight molecular_weight	18164.0 kDa
Excluded volume excluded_volume	19445 Å³
Envelope volume envelope_volume	25629 Å³
Hydration-shell volume shell_volume	13422 Å³
Envelope diameter envelope_diameter	58.9 Å
Shell Rg shell_rg	21.82 Å
Envelope Rg envelope_rg	16.88 Å
Shape Rg shape_rg	16.78 Å
Total Rg total_rg	17.50 Å
Total atoms total_atoms	1215
Residues n_residues	102
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

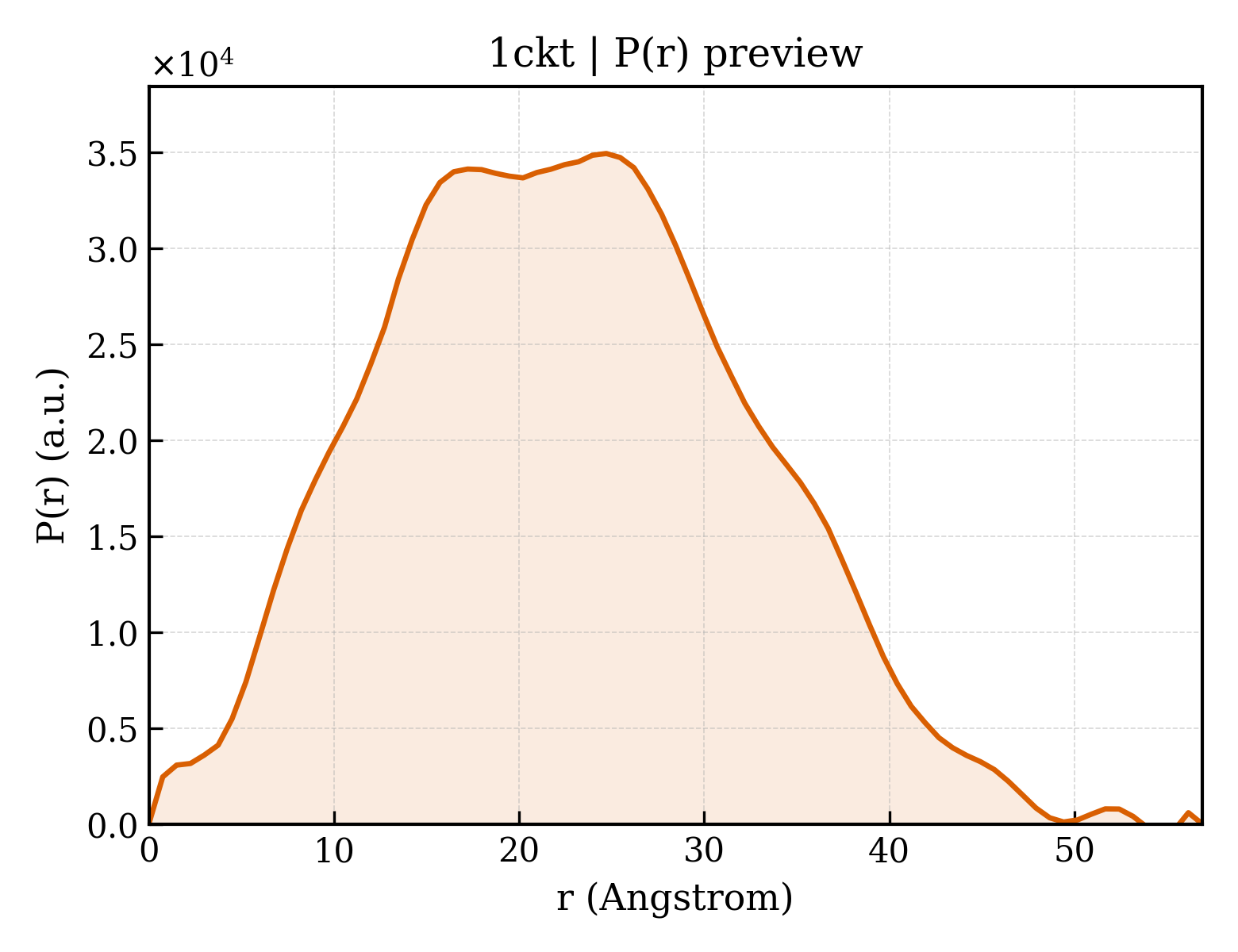

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.9 Å
Rg (real space) rg_real	17.32 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	1.1610e+07
I(0) uncertainty (real space) i0_real_error	1.3500e+05
Rg (reciprocal space) rg_reciprocal	17.33 Å
I(0) (reciprocal space) i0_reciprocal	11610000.0000
Solution quality estimate total_estimate	0.7823
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	4
Primary peak position r_peak_primary	24.7 Å
Skewness Skewness skewness	0.190
Kurtosis Kurtosis kurtosis	-0.456
Angular range angular_range	— – 0.4600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	882300.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 0.951; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	;DNA (5'-D(CPCP(5IU)PCPTPCPTPGPGPAPCPCPTPTPCPC)-3') ;
Molecular weight formula_weight	4872.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	1289

CCUCTCTGGACCTTCC

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(GPGPAPAPGPGPTPCPCPAPGPAPGPAPGPG)-3') ;
Molecular weight formula_weight	5037.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GGAAGGTCCAGAGAGG

Entity 3 Entity 3 polymer

Description description	HIGH MOBILITY GROUP 1 PROTEIN
Molecular weight formula_weight	8497.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

KPRGKMSSYAFFVQTCREEHKKKHPDASVNFSEFSKKCSERWKTMSAKEKGKFEDMAKADKARYEREMKTY

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	Cisplatin
Molecular weight formula_weight	300.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	74

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ckta_
Class class	a — All alpha proteins
Fold Fold fold	a.21 — HMG-box
Superfamily Superfamily superfamily	a.21.1 — HMG-box
Family Family family	a.21.1.1 — HMG-box

CATH v4.4 (1 domains)

Domain ID domain_id	1cktA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	30 — DNA Binding (I), subunit A
Homologous superfamily homologous superfamily	10 — High mobility group box domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	105.210 Å
Unit-cell length b length_b	50.410 Å
Unit-cell length c length_c	53.130 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.82 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2380
R_work r_work	0.2380
R_free r_free	0.2390

fit	/app/data/saxs_computation/ck/1ckt/1ckt.fit
pddf	/app/data/pr_computation/ck/1ckt/1ckt.pr.out
profile	/app/data/saxs_computation/ck/1ckt/1ckt.dat
