SAXSdb — 4qr9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

High mobility group protein B1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 4 PDB declaration: hexameric（6） Consistent with all polymer counts	Chain A； UniProt 8–81 Chain B； UniProt 8–81	Fragment：Residues 8-81	;DNA (5'-D(APTPAPTPCPGPAPTPAPT)-3') ; × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；0.025M Sodium Cacodylate 0.020M Magnesium Chloride 2.5% MPD (equilibrated against 40% MPD), pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.234

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4QR9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AAB NMR STRUCTURE OF RAT HMG1 HMGA FRAGMENT Deposited 1995-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–83（83 aa） Fragment：FRAGMENT A (RESIDUES 1 - 83)	Mutation：C22S	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CKT CRYSTAL STRUCTURE OF HMG1 DOMAIN A BOUND TO A CISPLATIN-MODIFIED DNA DUPLEX Deposited 1999-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 7–77（71 aa） Fragment：RESIDUES 8-78, DOMAIN A	Not recorded	CPT Cisplatin × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；CRYSTALS WERE OBTAINED FROM A SOLUTION THAT CONTAINED HEPES, MAGNESIUM ACETATE, PEG 3350, GLYCEROL AND DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.50 Å R-free 0.239
1HME STRUCTURE OF THE HMG BOX MOTIF IN THE B-DOMAIN OF HMG1 Deposited 1994-02-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 88–164（77 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1HMF STRUCTURE OF THE HMG BOX MOTIF IN THE B-DOMAIN OF HMG1 Deposited 1994-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 88–164（77 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HMGB1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–76； UniProt 8–81 Author chain B； PDBConstruct 3–76； UniProt 8–81

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4qr9
Deposition date deposition_date	2014-06-30
Structure title title	Crystal structure of two HMGB1 Box A domains cooperating to underwind and kink a DNA
Keywords keywords	;HMG-box, HMGB1, Box A domain, High mobility group, DNA-binding, bend DNA, kink DNA, architectural factor, minor groove, chromatin, Nucleus, DNA BINDING PROTEIN ;; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.61 Å
Radius of gyration Rg (electron density) rg_electron	21.20 Å
Forward intensity I(0) i0	24305600.00
Molecular weight molecular_weight	29805.0 kDa
Excluded volume excluded_volume	33857 Å³
Envelope volume envelope_volume	44761 Å³
Hydration-shell volume shell_volume	18398 Å³
Envelope diameter envelope_diameter	74.8 Å
Shell Rg shell_rg	26.76 Å
Envelope Rg envelope_rg	21.51 Å
Shape Rg shape_rg	21.15 Å
Total Rg total_rg	21.92 Å
Total atoms total_atoms	2043
Residues n_residues	190
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.8 Å
Rg (real space) rg_real	21.68 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	2.4310e+07
I(0) uncertainty (real space) i0_real_error	3.3680e+05
Rg (reciprocal space) rg_reciprocal	21.67 Å
I(0) (reciprocal space) i0_reciprocal	24310000.0000
Solution quality estimate total_estimate	0.8060
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.3 Å
Skewness Skewness skewness	0.424
Kurtosis Kurtosis kurtosis	-0.227
Angular range angular_range	— – 0.3700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3577000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	High mobility group protein B1
Molecular weight formula_weight	8949.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2178

GSKPRGKMSSYAFFVQTCREEHKKKHPDASVNFSEFSKKCSERWKTMSAKEKGKFEDMAKADKARYEREMKTYIPP

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	brown rat,rat,rats
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(APTPAPTPCPGPAPTPAPT)-3') ;
Molecular weight formula_weight	3043.0 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D,E,F

ATATCGATAT

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4qr9A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	30 — DNA Binding (I), subunit A
Homologous superfamily homologous superfamily	10 — High mobility group box domain

Domain ID domain_id	4qr9B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	30 — DNA Binding (I), subunit A
Homologous superfamily homologous superfamily	10 — High mobility group box domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.751 Å
Unit-cell length b length_b	84.170 Å
Unit-cell length c length_c	94.227 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	42.120 Å
R factor r_factor	0.1987
R_work r_work	0.1968
R_free r_free	0.2339

fit	/app/data/saxs_computation/qr/4qr9/4qr9.fit
pddf	/app/data/pr_computation/qr/4qr9/4qr9.pr.out
profile	/app/data/saxs_computation/qr/4qr9/4qr9.dat

Crystal structure of two HMGB1 Box A domains cooperating to underwind and kink a DNA

1. Protein Identity and Related Structures Protein Identity & Related Structures

High mobility group protein B1

State in the Current Structure

Other States of the Same Protein in the Database

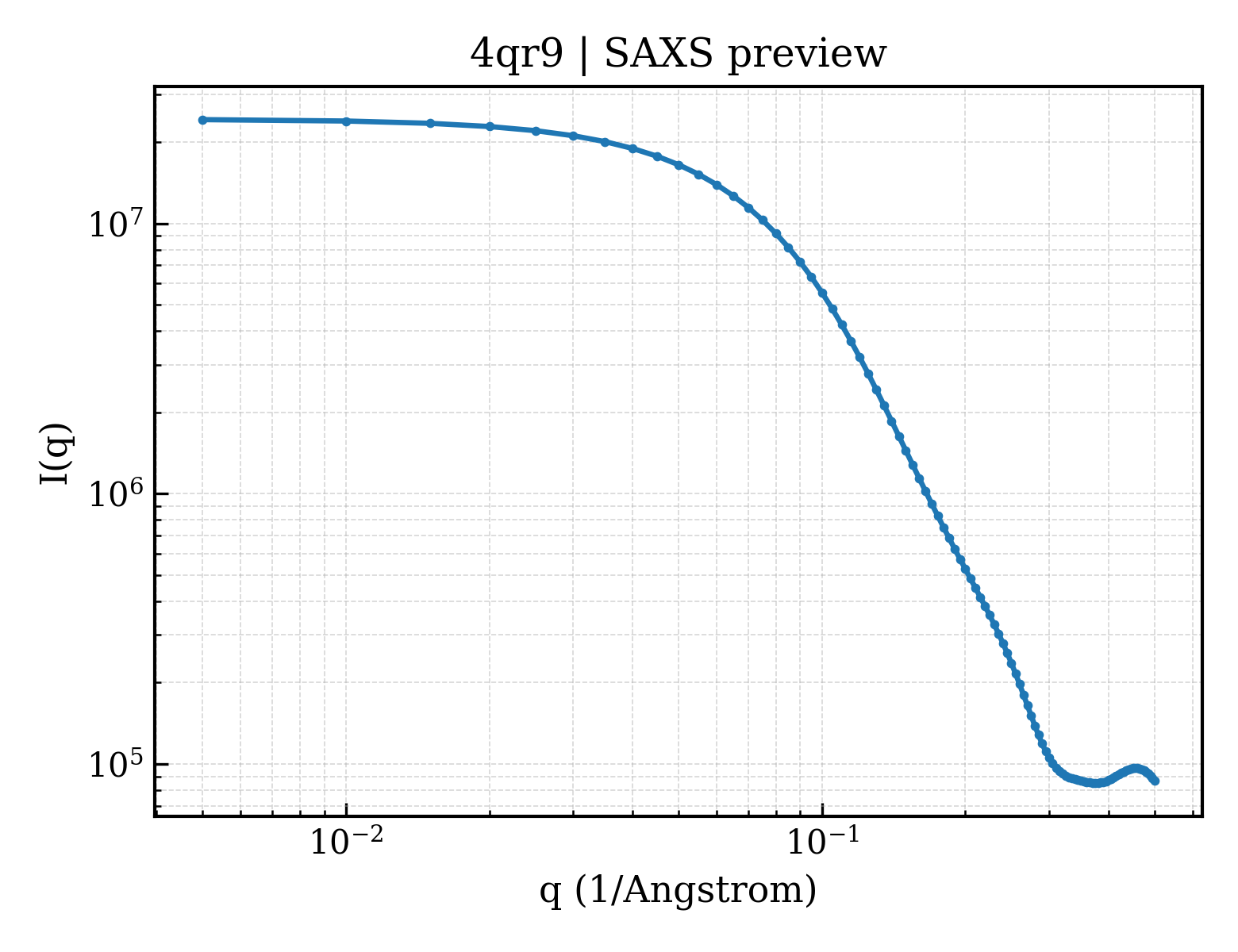

SAXS scattering curve SAXS Profile

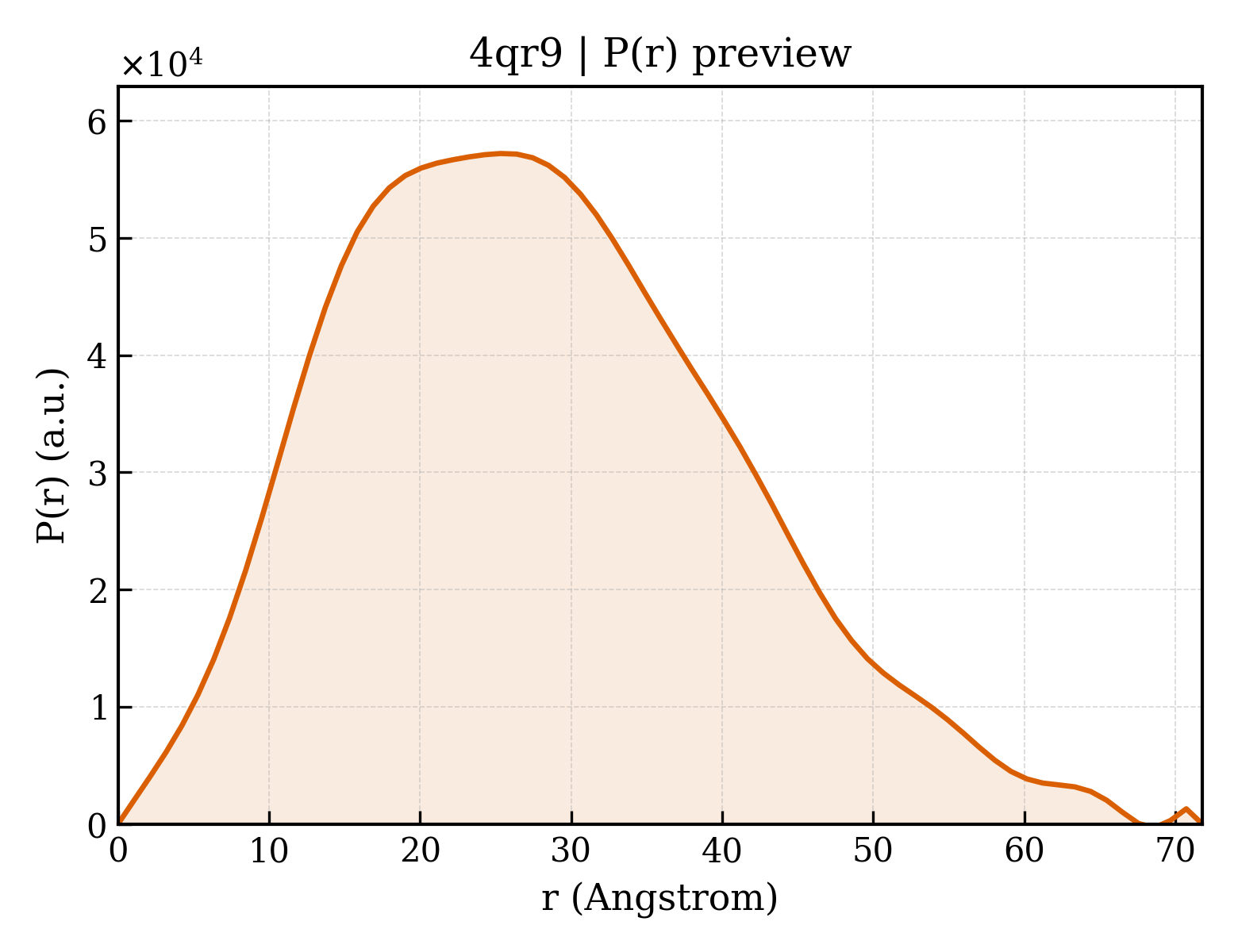

P(r) Distance Distribution P(r) Distribution
