Rattus norvegicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | HMG1_RAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–77； UniProt 88–164 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1hme |
| Deposition date deposition_date | 1994-02-10 |
| Structure title title | STRUCTURE OF THE HMG BOX MOTIF IN THE B-DOMAIN OF HMG1 |
| Keywords keywords | DNA-BINDING; DNA-BINDING |
| Experimental Method method | SOLUTION NMR |

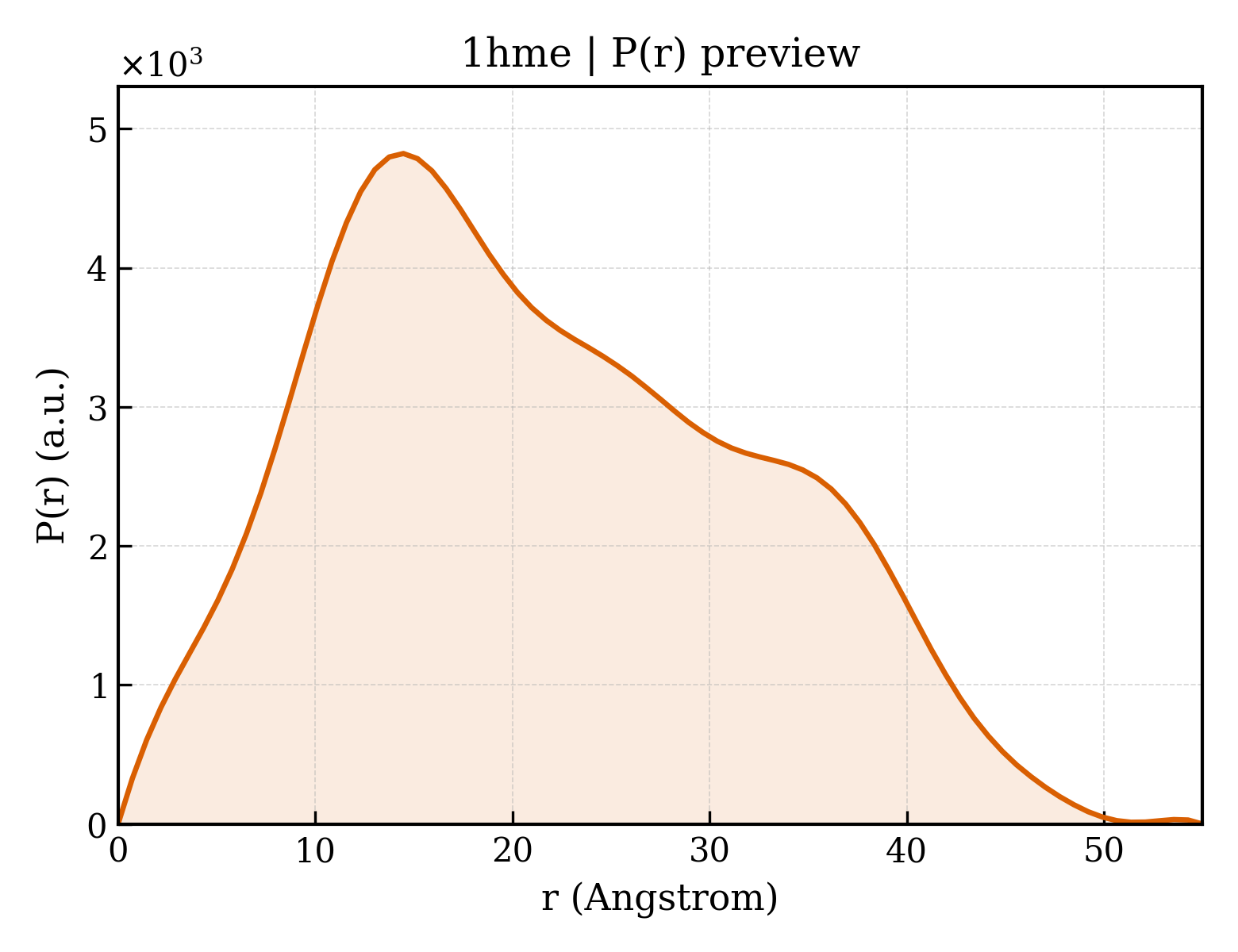

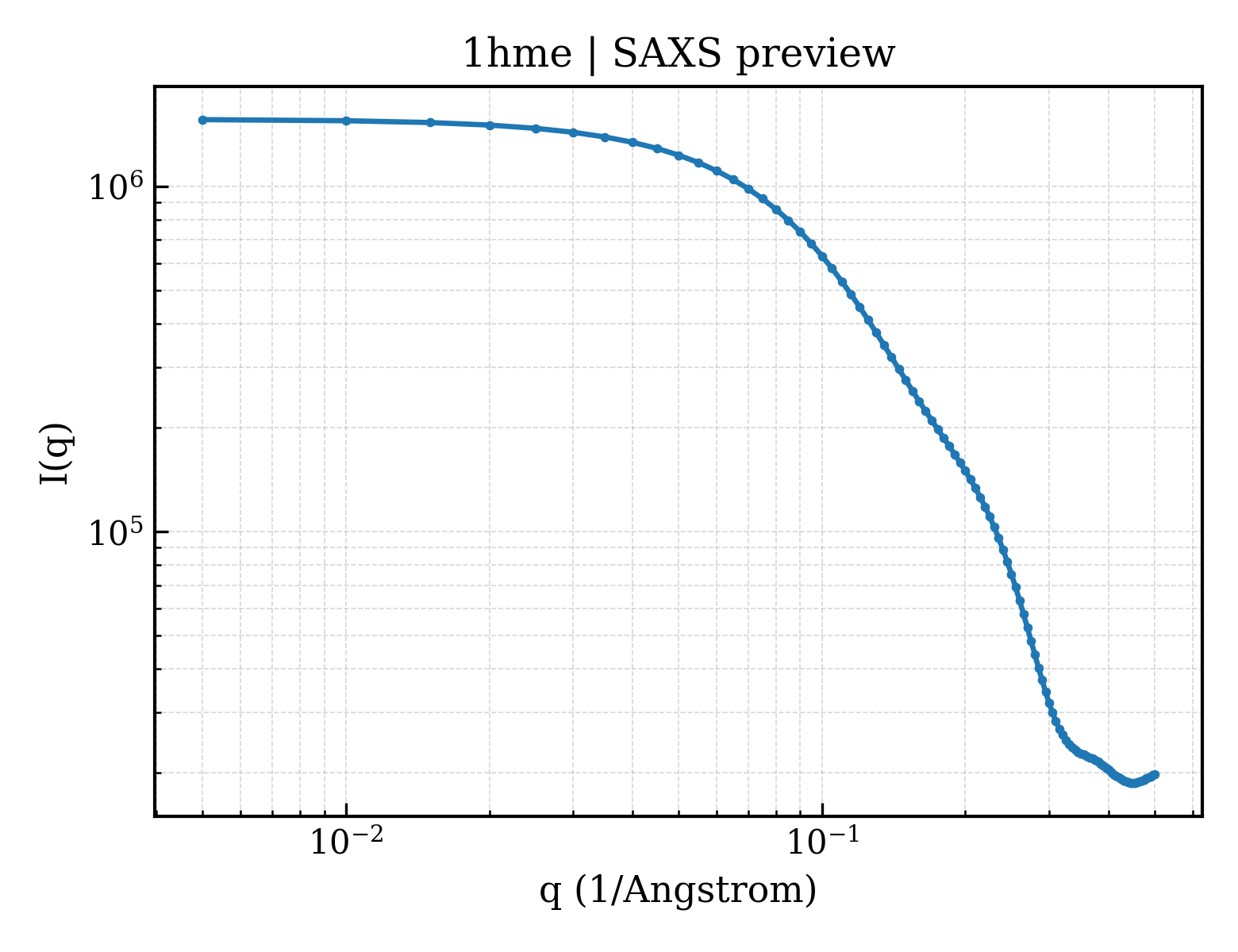

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.92 Å |
| Rg (electron density) | 16.17 Å |
| Total Rg | 16.99 Å |
| Atom count | 1247 |
| Residues | 77 |
| Excluded volume | 11114 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1hmea_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.21 — HMG-box |
| Superfamily Superfamily superfamily | a.21.1 — HMG-box |
| Family Family family | a.21.1.1 — HMG-box |
| Domain ID domain_id | 1hmeA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 30 — DNA Binding (I), subunit A |
| Homologous superfamily homologous superfamily | 10 — High mobility group box domain |
