HIS15ASP HPR FROM E. COLI

Method: X-RAY DIFFRACTION D_max: 46.5 Å Quality: GOOD

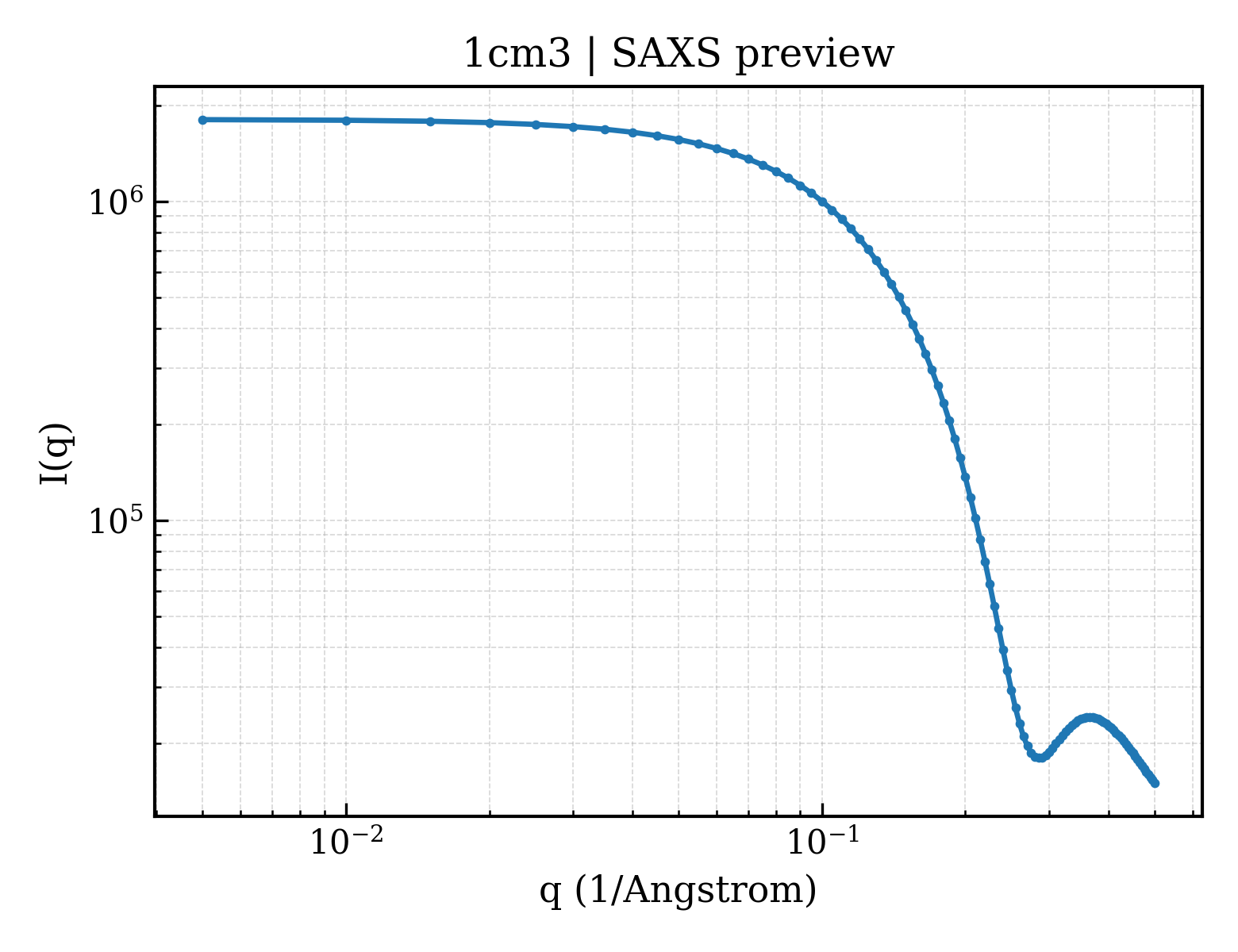

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1cm3
deposition_date	1999-05-13
title	HIS15ASP HPR FROM E. COLI
keywords	PHOSPHOTRANSFERASE, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	13.23 Å
rg_electron	11.66 Å
i0	1808110.00
molecular_weight	9081.0 kDa
excluded_volume	11401 Å³
envelope_volume	12476 Å³
shell_volume	9278 Å³
envelope_diameter	39.7 Å
shell_rg	17.18 Å
envelope_rg	11.92 Å
shape_rg	11.65 Å
total_rg	13.08 Å
total_atoms	782
n_residues	85
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	46.5 Å
rg_real	13.14 Å
rg_real_error	0.30 Å
i0_real	1.8080e+06
i0_real_error	1.7830e+04
rg_reciprocal	13.14 Å
i0_reciprocal	1808000.0000
total_estimate	0.7727
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	17.1 Å
skewness	0.115
kurtosis	-0.339
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	353000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.682; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	25.570 Å
length_b	45.340 Å
length_c	27.620 Å
angle_alpha	90.00 °
angle_beta	104.00 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.600 Å
resolution_low	10.000 Å
r_factor	0.1910
r_work	0.1910
r_free	—

description	HISTIDINE-CONTAINING PROTEIN
formula_weight	9106.3 kDa
mutation	HIS15ASP
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1025

HIS15ASP HPR FROM E. COLI

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	81

fit	/app/data/saxs_computation/cm/1cm3/1cm3.fit
pddf	/app/data/pr_computation/cm/1cm3/1cm3.pr.out
profile	/app/data/saxs_computation/cm/1cm3/1cm3.dat
