1cmi
STRUCTURE OF THE HUMAN PIN/LC8 DIMER WITH A BOUND PEPTIDE
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cmi |
| deposition_date | 1999-05-06 |
| title | STRUCTURE OF THE HUMAN PIN/LC8 DIMER WITH A BOUND PEPTIDE |
| keywords | PIN, LC8, NNOS, DYNEIN LIGHT CHAIN, OXIDOREDUCTASE-OXIDOREDUCTASE INHIBITOR complex; OXIDOREDUCTASE/OXIDOREDUCTASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.70 Å |
| rg_electron | 21.96 Å |
| i0 | 8946070.00 |
| molecular_weight | 22414.0 kDa |
| excluded_volume | 28057 ų |
| envelope_volume | 34564 ų |
| shell_volume | 14376 ų |
| envelope_diameter | 75.0 Å |
| shell_rg | 26.70 Å |
| envelope_rg | 21.98 Å |
| shape_rg | 21.96 Å |
| total_rg | 22.65 Å |
| total_atoms | 1576 |
| n_residues | 194 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

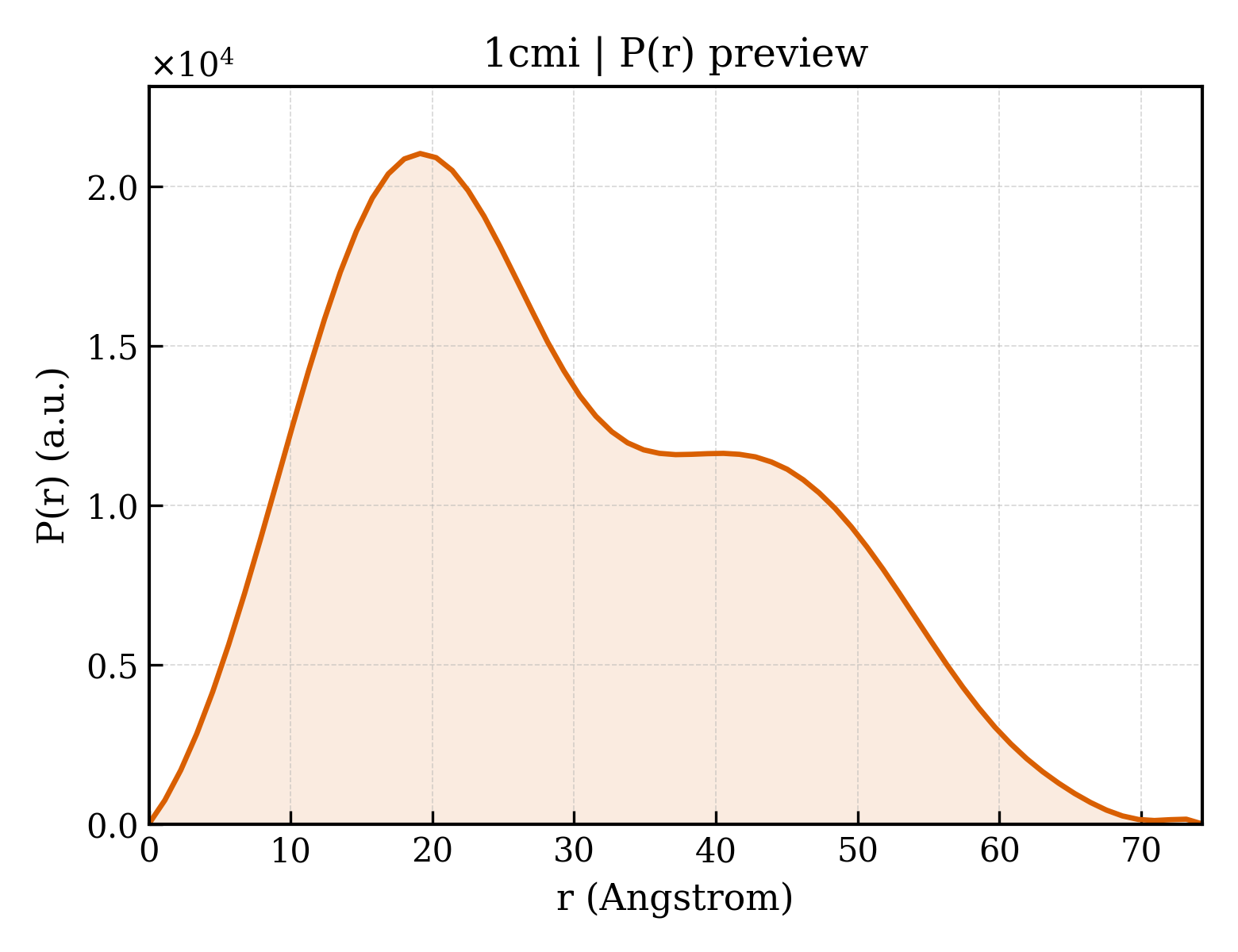

3. P(r) Analysis (GNOM)
| dmax | 74.3 Å |
| rg_real | 22.89 Å |
| rg_real_error | 0.55 Å |
| i0_real | 8.9460e+06 |
| i0_real_error | 1.2990e+05 |
| rg_reciprocal | 22.85 Å |
| i0_reciprocal | 8946000.0000 |
| total_estimate | 0.8235 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.1 Å |
| skewness | 0.415 |
| kurtosis | -0.713 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1611000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.682; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.668; Smooth: 0.988 |
