1cmr

NMR SOLUTION STRUCTURE OF A CHIMERIC PROTEIN, DESIGNED BY TRANSFERRING A FUNCTIONAL SNAKE BETA-HAIRPIN INTO A SCORPION ALPHA/BETA SCAFFOLD (PH 3.5, 20C), NMR, 18 STRUCTURES

Method: SOLUTION NMR Dmax: 29.9 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHARYBDOTOXIN, ALPHA CHIMERA

OrganismNot specified

UniProt P13487

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 7–37 Mutation：R19K, K21W, M23D, N24H, K25R, K26G, R28I, Y30E No other associated polymer SOLUTION NMR NMR measurement conditions：pH 3.5；293 K Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1CMR Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BAH A TWO DISULFIDE DERIVATIVE OF CHARYBDOTOXIN WITH DISULFIDE 13-33 REPLACED BY TWO ALPHA-AMINOBUTYRIC ACIDS, NMR, 30 STRUCTURES Deposited 1996-06-06 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–37（36 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.3；278 K
Resolution not provided
2CRD ANALYSIS OF SIDE-CHAIN ORGANIZATION ON A REFINED MODEL OF CHARYBDOTOXIN: STRUCTURAL AND FUNCTIONAL IMPLICATIONS Deposited 1993-02-17 Different construct Different mutation/modification Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–37（36 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
4JTA Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin Deposited 2013-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 23–59（37 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 12 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K
Resolution 2.50 Å R-free 0.236
4JTC Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Charybdotoxin in Cs+ Deposited 2013-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 23–59（37 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 CS CESIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, Cesium CHLORIDE, TRIS BUFFER, pH 8.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.56 Å R-free 0.262
4JTD Crystal structure of Kv1.2-2.1 paddle chimera channel in complex with Lys27Met mutant of Charybdotoxin Deposited 2013-03-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain Y 23–59（37 aa） Fragment：Charybdotoxin
Mutation：K27M Non-standard monomer：Yes (specific site not provided by mmCIF) NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 K POTASSIUM ION × 16 PGW (1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.9；293 K；PEG 400, POTASSIUM CHLORIDE, TRIS , pH 8.9, vapor diffusion, hanging drop, temperature 293K
Resolution 2.54 Å R-free 0.235

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SCKA_LEIQH
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–31； UniProt 7–37

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

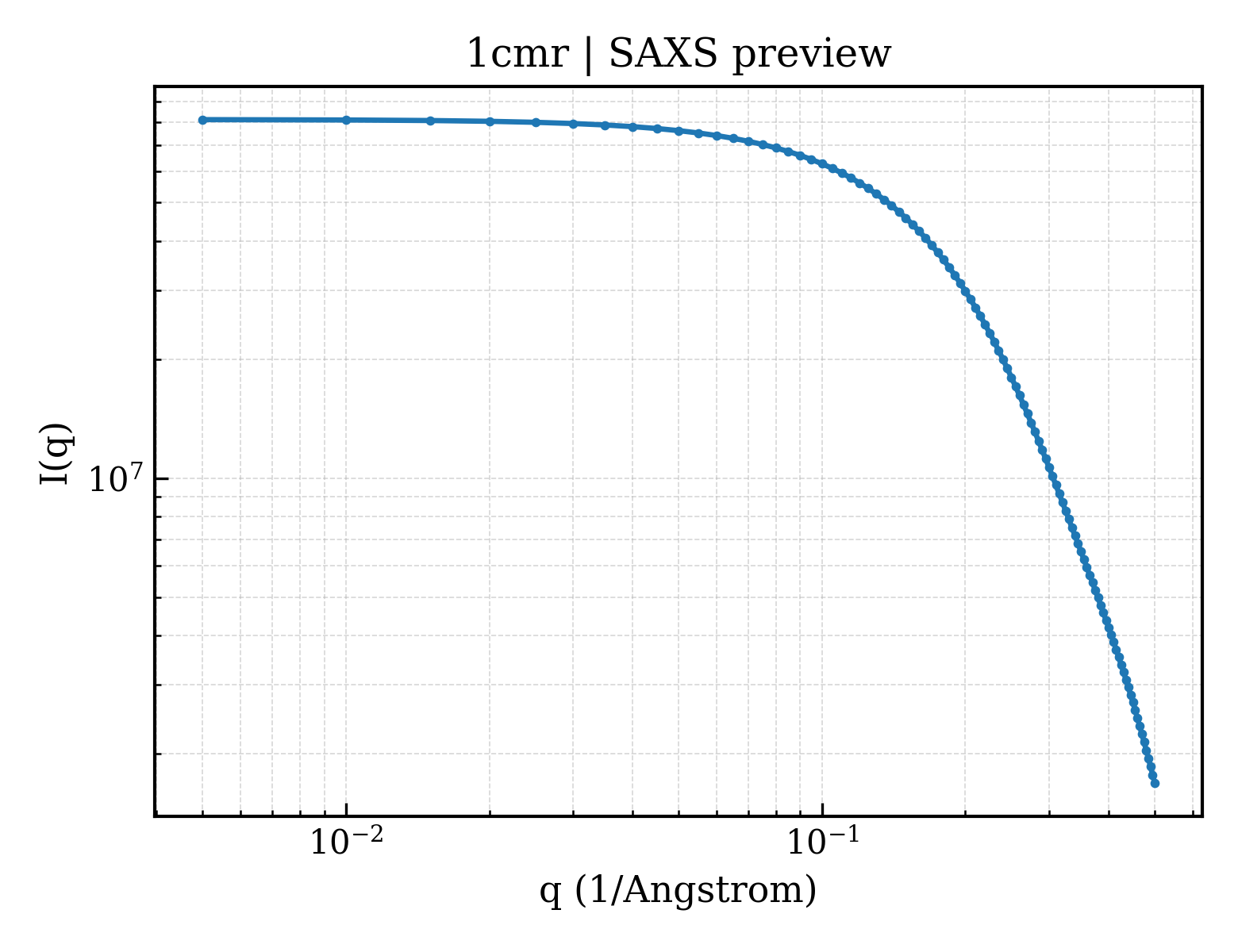

SAXS scattering curve SAXS Profile

SAXS profile for 1cmr

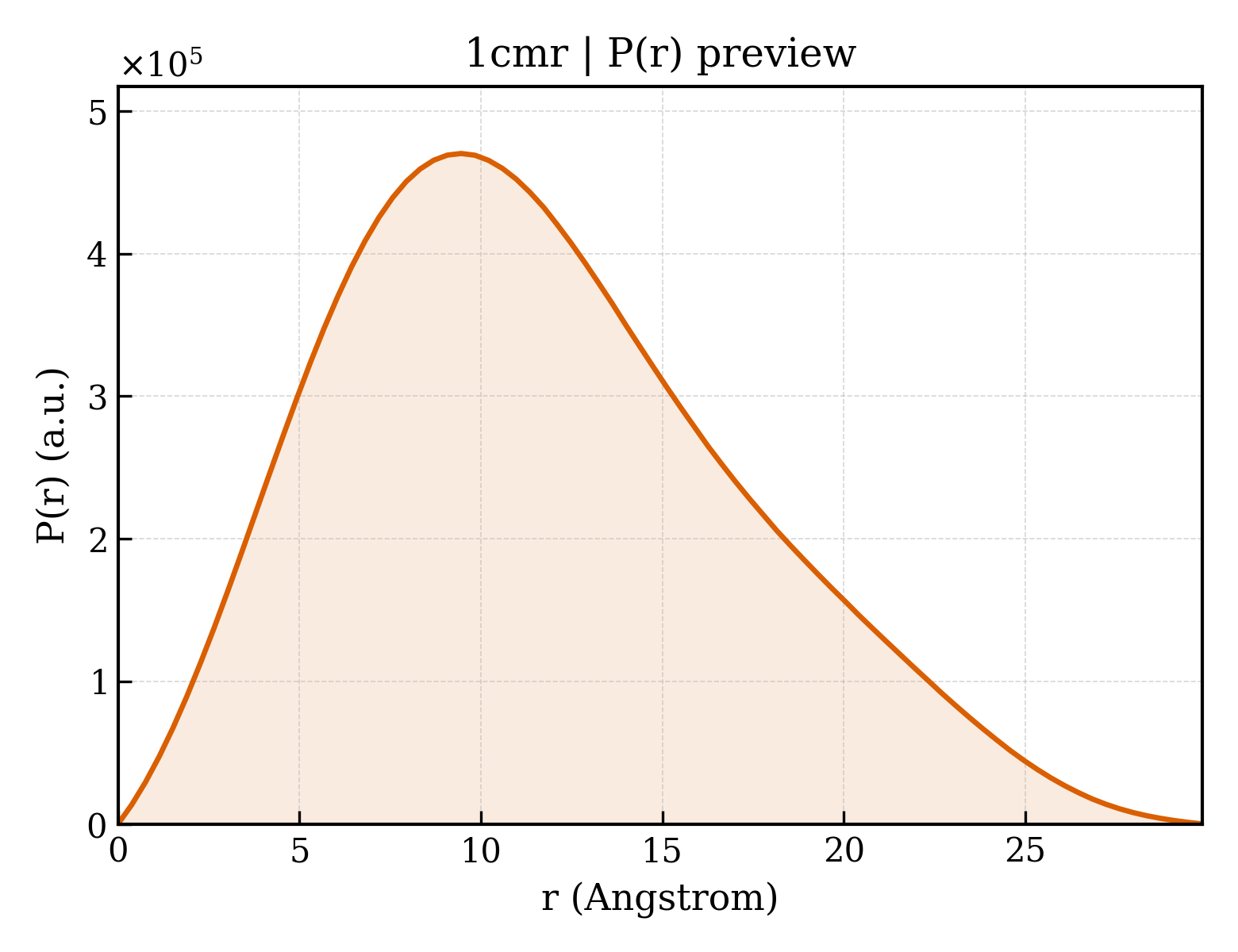

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1cmr
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1cmr
Deposition date deposition_date1996-03-15
Structure title titleNMR SOLUTION STRUCTURE OF A CHIMERIC PROTEIN, DESIGNED BY TRANSFERRING A FUNCTIONAL SNAKE BETA-HAIRPIN INTO A SCORPION ALPHA/BETA SCAFFOLD (PH 3.5, 20C), NMR, 18 STRUCTURES
Keywords keywordsANTAGONIST OF NICOTINIC ACETYLCHOLINE RECEPTOR, CURAREMIMETIC PROTEIN; CURAREMIMETIC PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier8.79 Å
Radius of gyration Rg (electron density) rg_electron8.99 Å
Forward intensity I(0) i081201400.00
Molecular weight molecular_weight64081.0 kDa
Excluded volume excluded_volume75540 ų
Envelope volume envelope_volume7878 ų
Hydration-shell volume shell_volume6902 ų
Envelope diameter envelope_diameter33.9 Å
Shell Rg shell_rg15.24 Å
Envelope Rg envelope_rg10.64 Å
Shape Rg shape_rg9.03 Å
Total Rg total_rg9.09 Å
Total atoms total_atoms8352
Residues n_residues558
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax29.9 Å
Rg (real space) rg_real9.11 Å
Rg uncertainty (real space) rg_real_error0.07 Å
I(0) (real space) i0_real8.1510e+07
I(0) uncertainty (real space) i0_real_error6.2040e+05
Rg (reciprocal space) rg_reciprocal8.82 Å
I(0) (reciprocal space) i0_reciprocal81200000.0000
Solution quality estimate total_estimate0.6929
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary9.5 Å
Skewness Skewness skewness0.450
Kurtosis Kurtosis kurtosis-0.338
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha5.1280
Highest regularization parameter α highest_alpha11360.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.895; Stabil: 0.910; Sysdev: 0.000; Positv: 1.000; Valcen: 0.834; Smooth: 0.800
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1cmra_
Class classg — Small proteins
Fold Fold foldg.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamilyg.3.7 — Scorpion toxin-like
Family Family familyg.3.7.2 — Short-chain scorpion toxins
▶

8. Citations (2)

▶

9. Files and Curves (10)
