1cn7
Yeast ribosomal protein L30

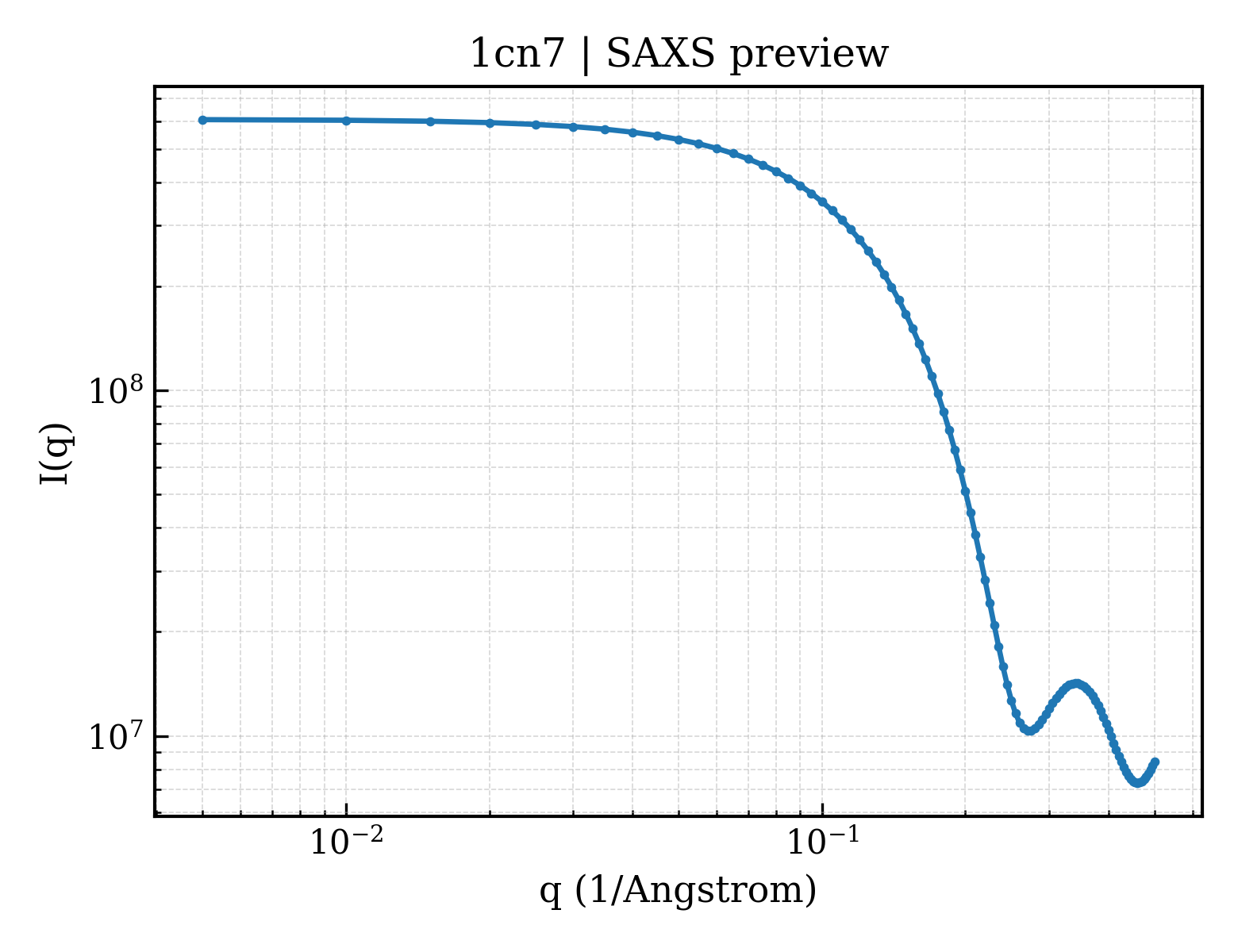

SAXS Profile

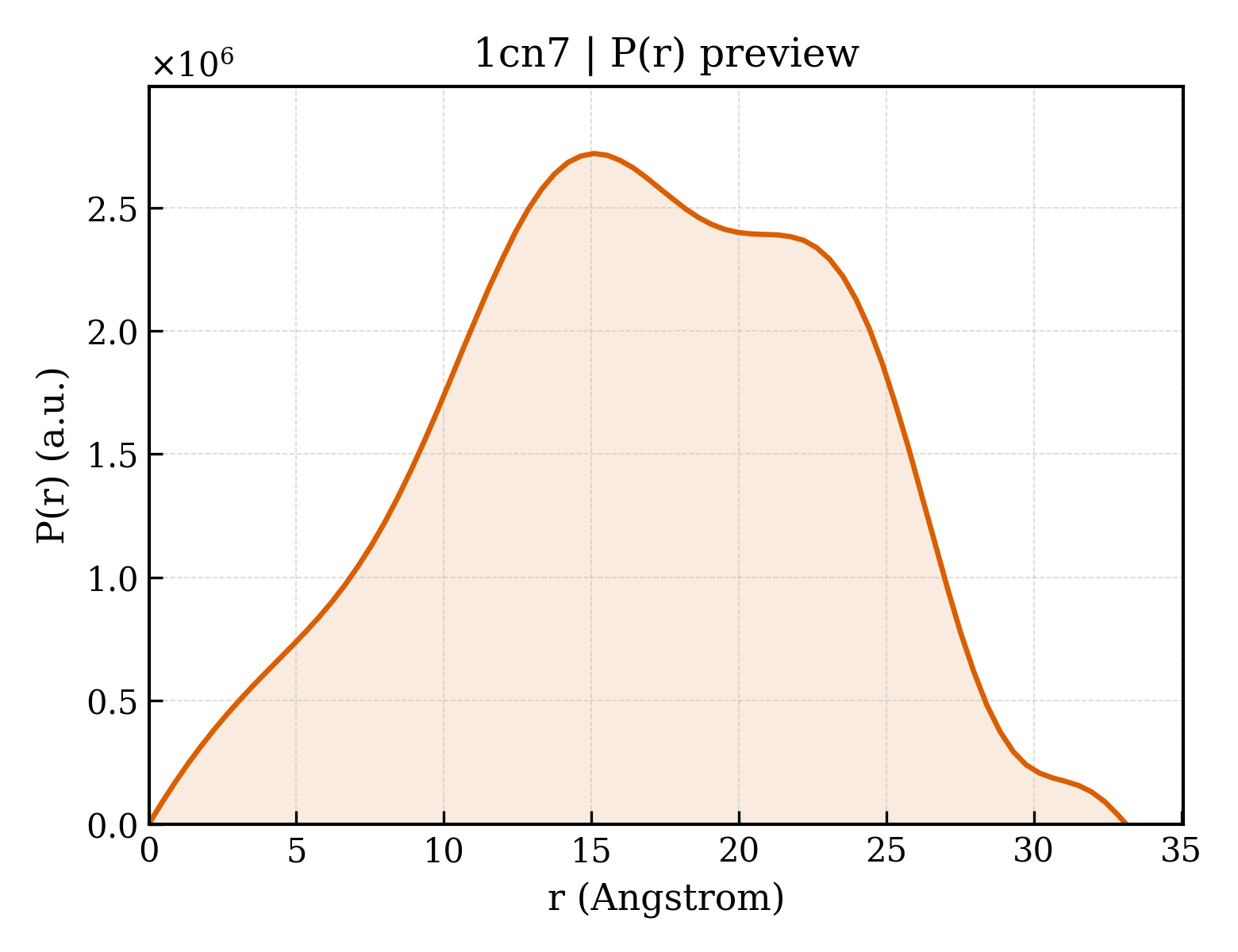

P(r) Distribution
1. Structure Basics
| entry_id | 1cn7 |
| deposition_date | 1999-05-26 |
| title | Yeast ribosomal protein L30 |
| keywords | RIBOSOMAL PROTEIN, AUTO-REGULATION OF PRE-MRNA SPLICING AND MRNA TRANSLATION, RIBOSOME; RIBOSOME |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.71 Å |
| rg_electron | 12.62 Å |
| i0 | 607883000.00 |
| molecular_weight | 225850.0 kDa |
| excluded_volume | 290450 ų |
| envelope_volume | 23006 ų |
| shell_volume | 13532 ų |
| envelope_diameter | 44.0 Å |
| shell_rg | 20.28 Å |
| envelope_rg | 14.37 Å |
| shape_rg | 12.58 Å |
| total_rg | 12.92 Å |
| total_atoms | 32960 |
| n_residues | 2080 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.1 Å |
| rg_real | 12.58 Å |
| rg_real_error | 0.21 Å |
| i0_real | 6.0790e+08 |
| i0_real_error | 6.1290e+06 |
| rg_reciprocal | 12.59 Å |
| i0_reciprocal | 607900000.0000 |
| total_estimate | 0.8218 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 15.1 Å |
| skewness | -0.173 |
| kurtosis | -0.656 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 123700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.903; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.000 |
