1co1
FOLD OF THE CBFA

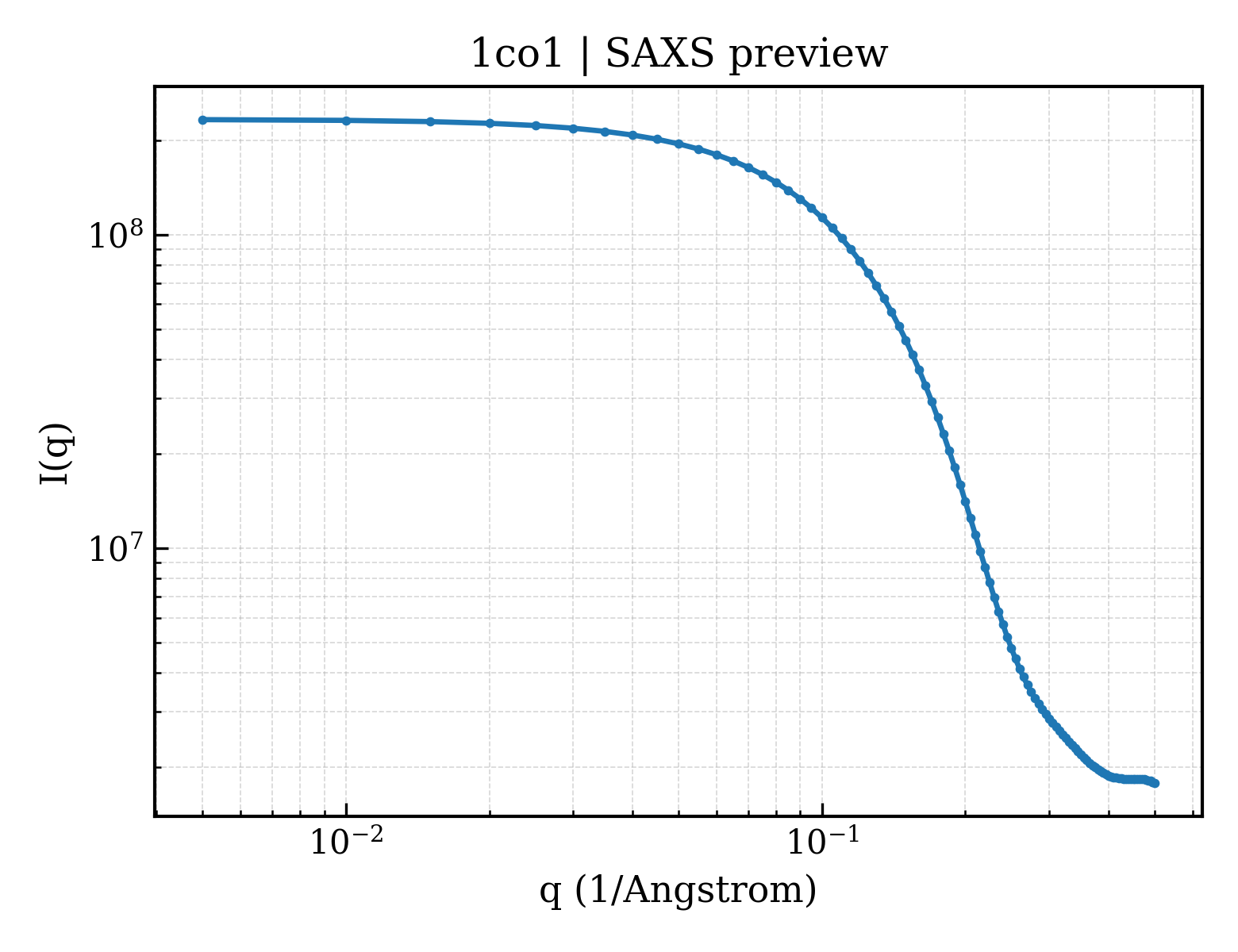

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1co1 |
| deposition_date | 1999-05-31 |
| title | FOLD OF THE CBFA |
| keywords | CBFA RUNT AML-1 RUNT DOMAIN, GENE REGULATION; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.70 Å |
| rg_electron | 14.28 Å |
| i0 | 233284000.00 |
| molecular_weight | 126830.0 kDa |
| excluded_volume | 158610 ų |
| envelope_volume | 32651 ų |
| shell_volume | 16437 ų |
| envelope_diameter | 58.7 Å |
| shell_rg | 22.91 Å |
| envelope_rg | 17.00 Å |
| shape_rg | 14.27 Å |
| total_rg | 14.63 Å |
| total_atoms | 17880 |
| n_residues | 1150 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

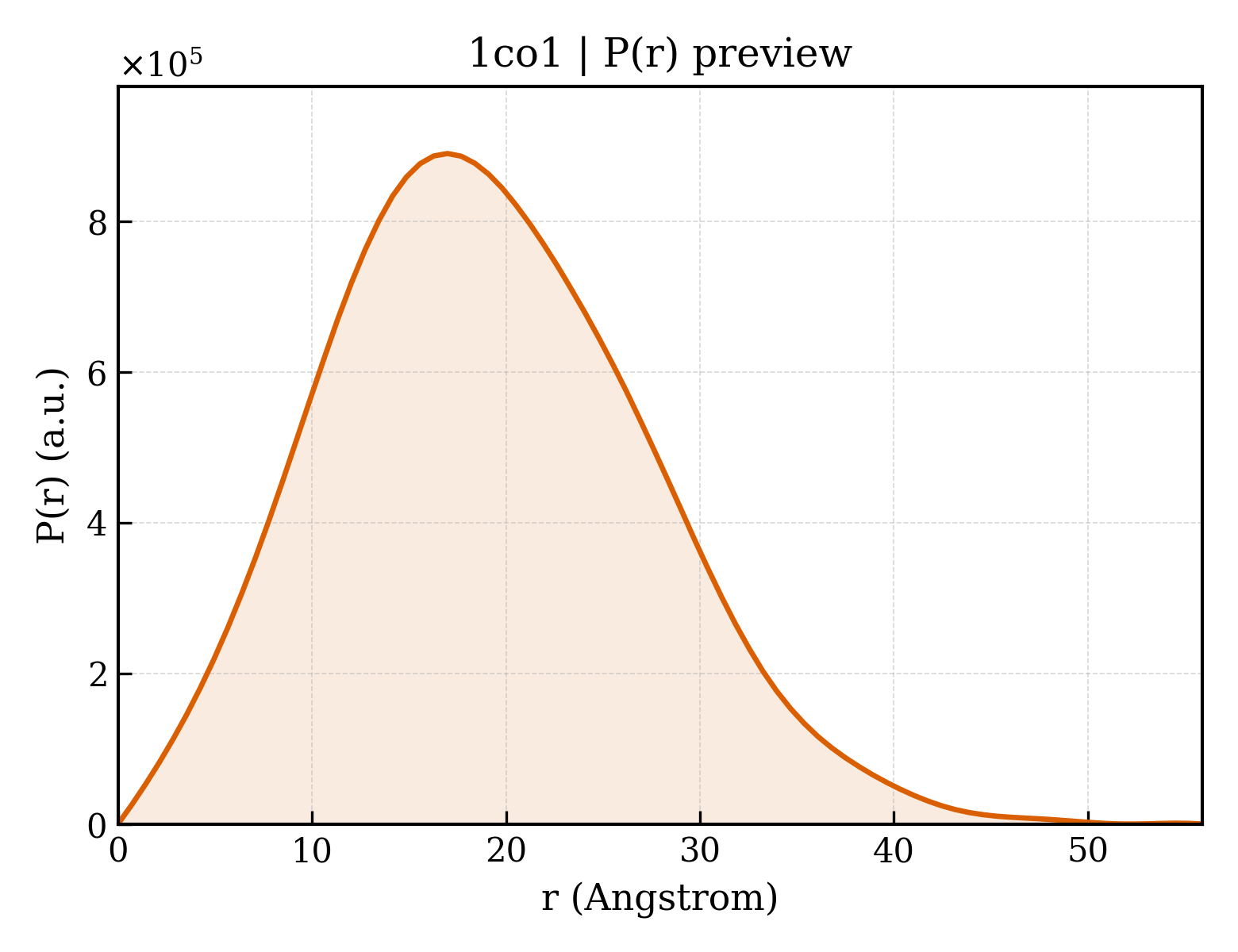

3. P(r) Analysis (GNOM)
| dmax | 55.9 Å |
| rg_real | 14.68 Å |
| rg_real_error | 0.45 Å |
| i0_real | 2.3330e+08 |
| i0_real_error | 2.7680e+06 |
| rg_reciprocal | 14.68 Å |
| i0_reciprocal | 233300000.0000 |
| total_estimate | 0.6662 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.0 Å |
| skewness | 0.350 |
| kurtosis | -0.097 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 564600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.577; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.822; Smooth: 0.998 |
