1e50

AML1/CBFbeta complex

Method: X-RAY DIFFRACTION D_max: 134.2 Å Quality: GOOD

SAXS Profile

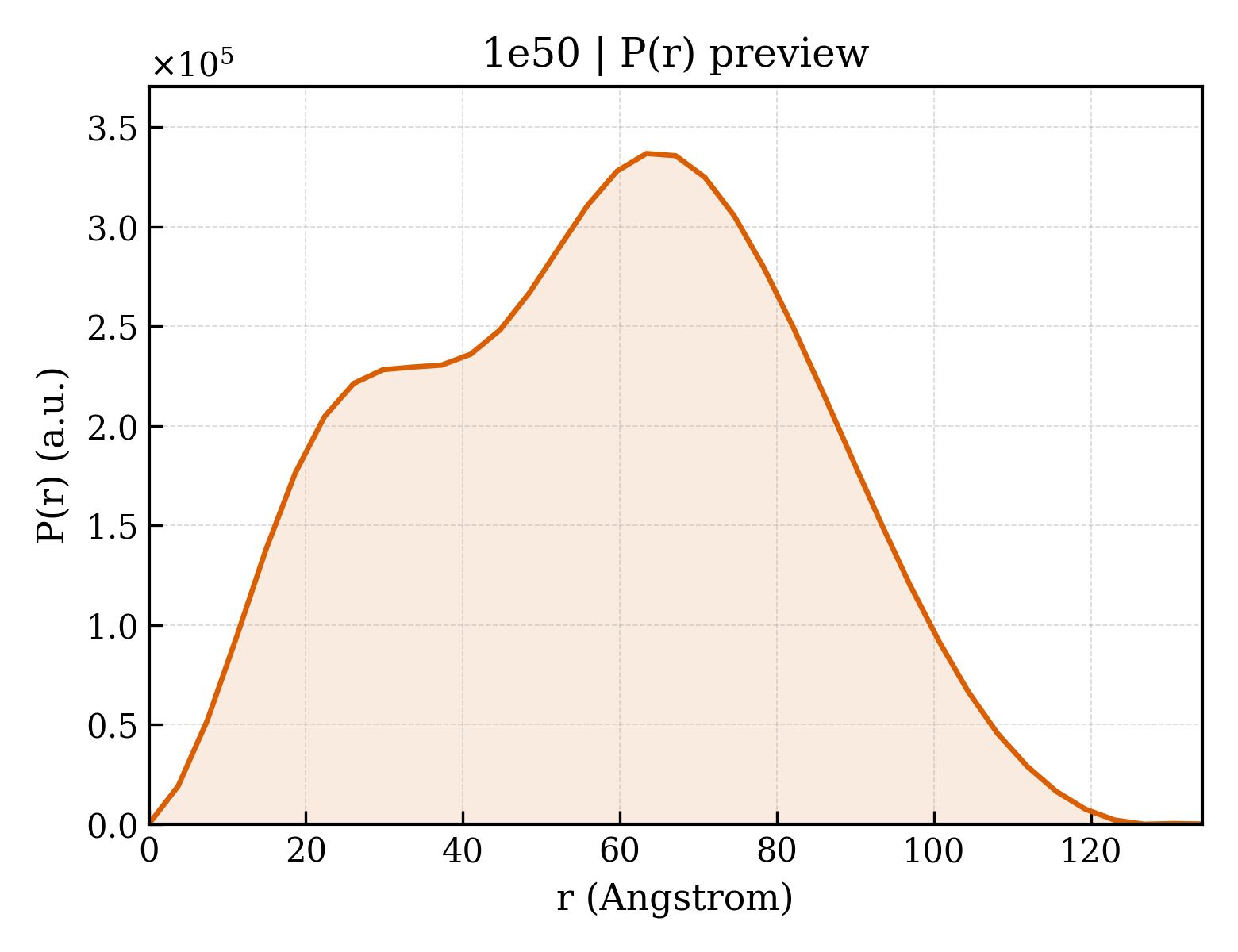

P(r) Distribution

▼

1. Structure Basics

entry_id	1e50
deposition_date	2000-07-13
title	AML1/CBFbeta complex
keywords	TRANSCRIPTION FACTOR, TRANSCRIPTION; TRANSCRIPTION
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.39 Å
rg_electron	43.67 Å
i0	282872000.00
molecular_weight	135510.0 kDa
excluded_volume	168550 Å³
envelope_volume	254770 Å³
shell_volume	47975 Å³
envelope_diameter	135.6 Å
shell_rg	50.50 Å
envelope_rg	41.66 Å
shape_rg	43.66 Å
total_rg	44.04 Å
total_atoms	9539
n_residues	1208
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	134.2 Å
rg_real	44.22 Å
rg_real_error	0.97 Å
i0_real	2.8290e+08
i0_real_error	5.0780e+06
rg_reciprocal	44.39 Å
i0_reciprocal	282900000.0000
total_estimate	0.8281
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	63.4 Å
skewness	-0.017
kurtosis	-0.761
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	19140000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.922; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CORE-BINDING FACTOR ALPHA SUBUNIT
formula_weight	14909.1 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,C,E,G,Q,R
atom_count	9696

SMVEVLADHPGELVRTDSPNFLCSVLPTHWRCNKTLPIAFKVVALGDVPDGTLVTVMAGNDENYSAELRNATAAMKNQVARFNDLRFVGRSGRGKSFTLTITVFTNPPQVATYHRAIKITVDGPREPRRHRQKL

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 2 polymer

description	CORE-BINDING FACTOR CBF-BETA
formula_weight	15815.7 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,D,F,H

PRVVPDQRSKFENEEFFRKLSRECEIKYTGFRDRPHEERQARFQNACRDGRSEIAFVATGTNLSLQFFPASWQGEQRQTPSREYVDLEREAGKVYLKAPMILNGVCVIWKGWIDLQRLDGMGCLEFDEERAQQE

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	ESCHERICHIA COLI BL21(DE3)

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	157

▶

6. Citations (1)

▶

length_a	103.260 Å
length_b	79.380 Å
length_c	130.100 Å
angle_alpha	90.00 °
angle_beta	101.39 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.600 Å
resolution_low	23.820 Å
r_factor	0.2680
r_work	0.2680
r_free	0.2870

fit	/app/data/saxs_computation/e5/1e50/1e50.fit
pddf	/app/data/pr_computation/e5/1e50/1e50.pr.out
profile	/app/data/saxs_computation/e5/1e50/1e50.dat
