1cpz
COPPER CHAPERONE OF ENTEROCOCCUS HIRAE (APO-FORM)

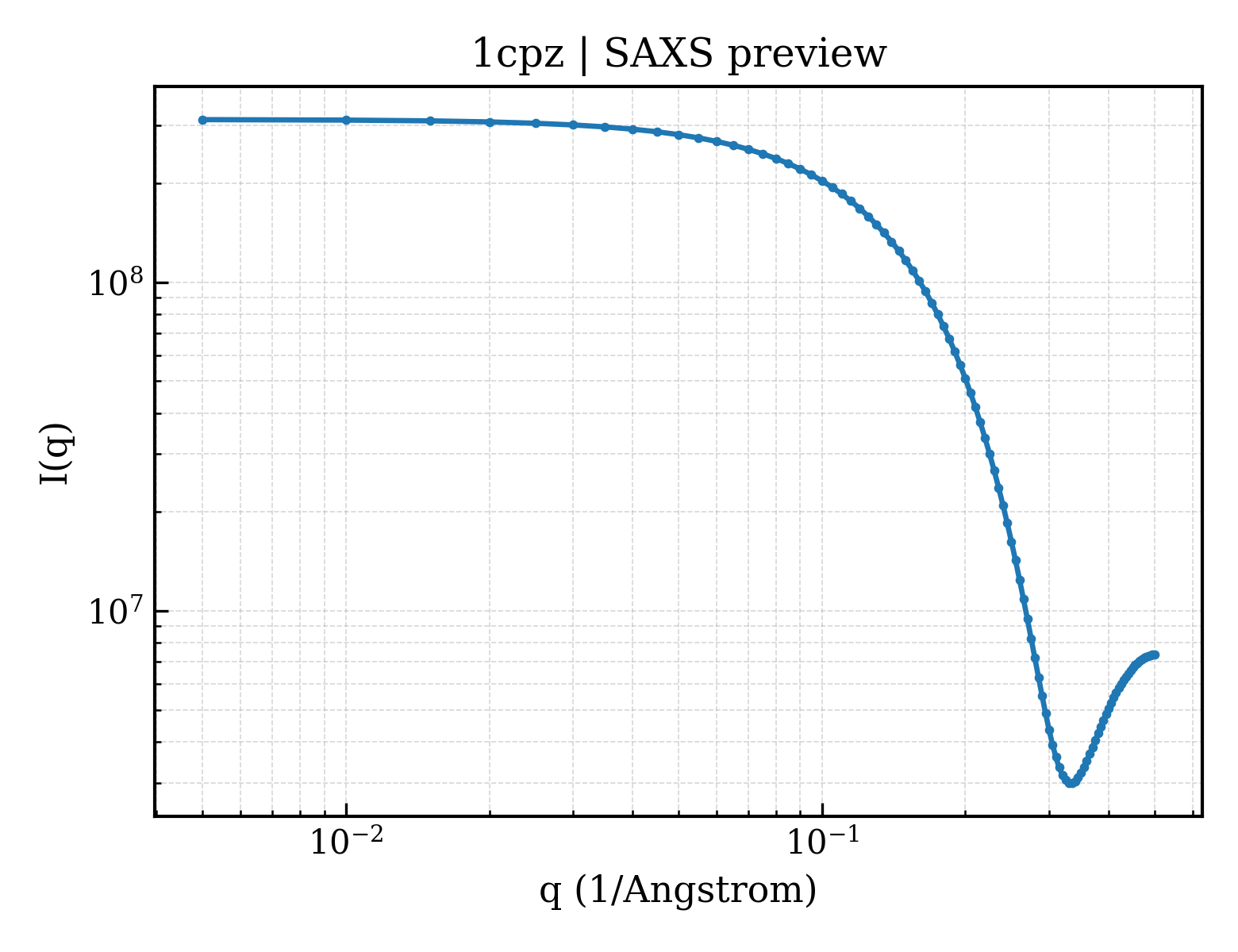

SAXS Profile

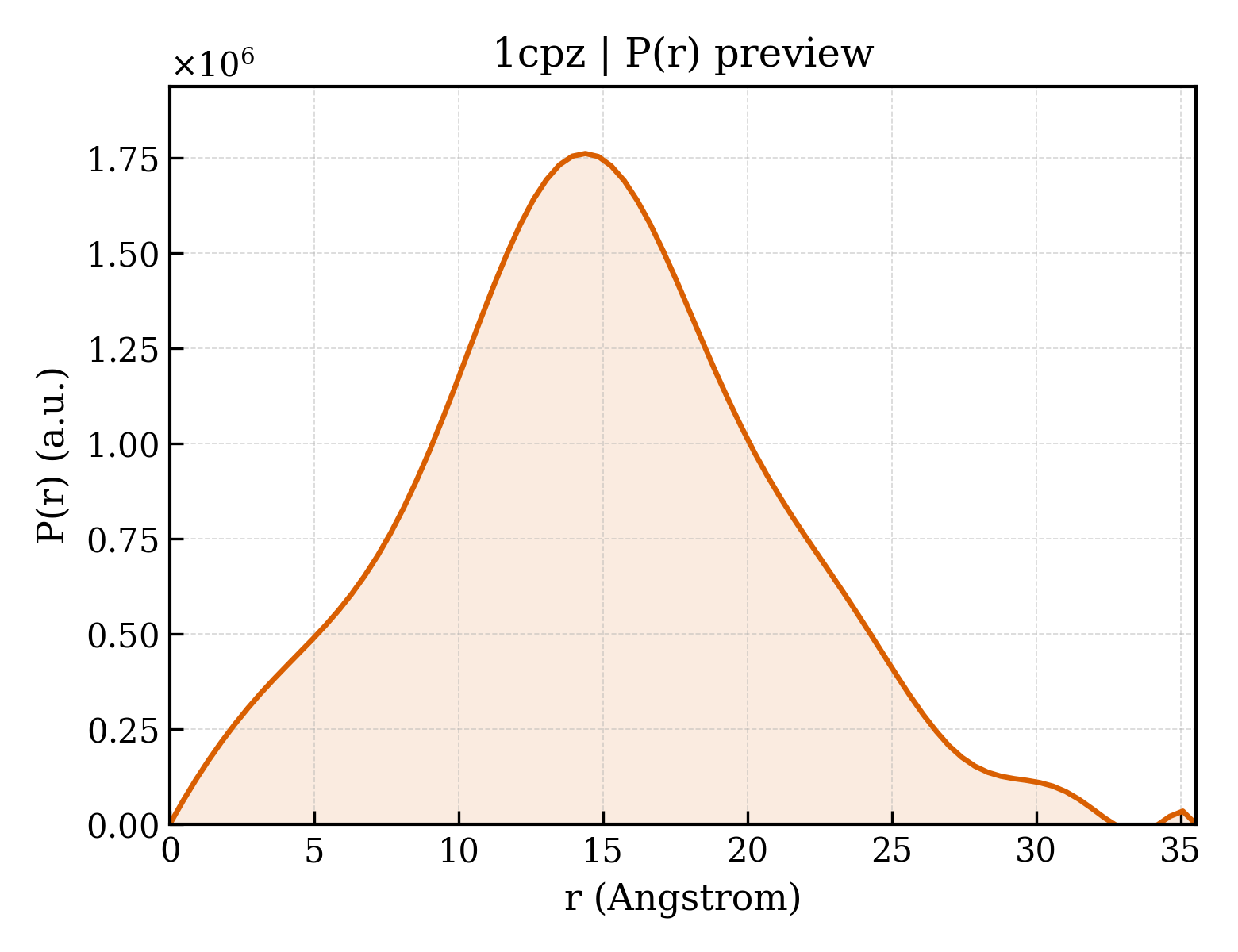

P(r) Distribution
1. Structure Basics
| entry_id | 1cpz |
| deposition_date | 1999-05-06 |
| title | COPPER CHAPERONE OF ENTEROCOCCUS HIRAE (APO-FORM) |
| keywords | COPPER CHAPERONE, METAL TRANSPORT, GENE REGULATION; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.33 Å |
| rg_electron | 11.04 Å |
| i0 | 312765000.00 |
| molecular_weight | 148970.0 kDa |
| excluded_volume | 186830 ų |
| envelope_volume | 15109 ų |
| shell_volume | 10446 ų |
| envelope_diameter | 40.8 Å |
| shell_rg | 18.06 Å |
| envelope_rg | 12.63 Å |
| shape_rg | 11.00 Å |
| total_rg | 11.35 Å |
| total_atoms | 21180 |
| n_residues | 1360 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.5 Å |
| rg_real | 11.26 Å |
| rg_real_error | 0.27 Å |
| i0_real | 3.1280e+08 |
| i0_real_error | 3.5020e+06 |
| rg_reciprocal | 11.27 Å |
| i0_reciprocal | 312800000.0000 |
| total_estimate | 0.7844 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.4 Å |
| skewness | 0.138 |
| kurtosis | -0.173 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 148900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.737; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.000 |
