SAXSdb — 1cr6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EPOXIDE HYDROLASE

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;N-CYCLOHEXYL-N'-(PROPYL)PHENYL UREA ; × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HYES_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–554； UniProt 1–554 Author chain B； PDBConstruct 1–554； UniProt 1–554

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cr6
Deposition date deposition_date	1999-08-13
Structure title title	CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CPU INHIBITOR
Keywords keywords	HOMODIMER, ALPHA/BETA HYDROLASE FOLD, DISUBSTITUTED UREA INHIBITOR, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cr6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1cr6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

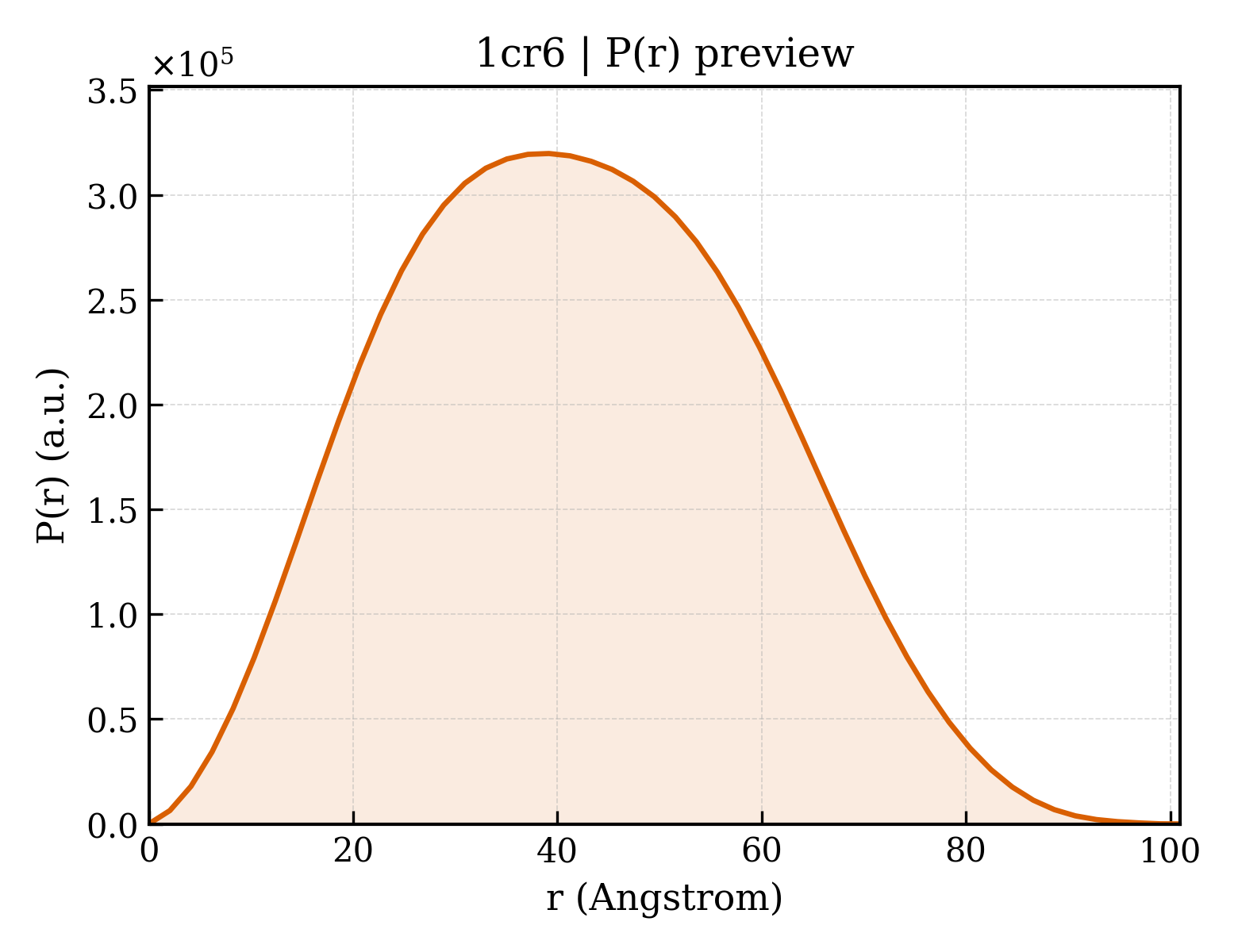

1cr6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.33 Å
Rg (electron density)	31.49 Å
Total Rg	32.17 Å
Atom count	8216
Residues	1028
Excluded volume	147540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cr6__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	EPOXIDE HYDROLASE
Molecular weight formula_weight	62582.0 kDa
EC 编号 ec_number	3.3.2.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8237

MALRVAAFDLDGVLALPSIAGAFRRSEEALALPRDFLLGAYQTEFPEGPTEQLMKGKITFSQWVPLMDESYRKSSKACGANLPENFSISQIFSQAMAARSINRPMLQAAIALKKKGFTTCIVTNNWLDDGDKRDSLAQMMCELSQHFDFLIESCQVGMIKPEPQIYNFLLDTLKAKPNEVVFLDDFGSNLKPARDMGMVTILVHNTASALRELEKVTGTQFPEAPLPVPCNPNDVSHGYVTVKPGIRLHFVEMGSGPALCLCHGFPESWFSWRYQIPALAQAGFRVLAIDMKGYGDSSSPPEIEEYAMELLCKEMVTFLDKLGIPQAVFIGHDWAGVMVWNMALFYPERVRAVASLNTPFMPPDPDVSPMKVIRSIPVFNYQLYFQEPGVAEAELEKNMSRTFKSFFRASDETGFIAVHKATEIGGILVNTPEDPNLSKITTEEEIEFYIQQFKKTGFRGPLNWYRNTERNWKWSCKGLGRKILVPALMVTAEKDIVLRPEMSKNMEKWIPFLKRGHIEDCGHWTQIEKPTEVNQILIKWLQTEVQNPSVTSKI

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	;N-CYCLOHEXYL-N'-(PROPYL)PHENYL UREA ;
Molecular weight formula_weight	260.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	21

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1cr6a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.2 — YihX-like

Domain ID domain_id	d1cr6a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.11 — Epoxide hydrolase

Domain ID domain_id	d1cr6b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.2 — YihX-like

Domain ID domain_id	d1cr6b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.11 — Epoxide hydrolase

CATH v4.4 (5 domains)

Domain ID domain_id	1cr6A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1cr6A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1cr6B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1cr6B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	240 — Putative phosphatase; domain 2

Domain ID domain_id	1cr6B03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

Unit-cell length a length_a	151.900 Å
Unit-cell length b length_b	143.000 Å
Unit-cell length c length_c	60.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2520
R_work r_work	0.2010
R_free r_free	0.3120

CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CPU INHIBITOR
