1. Protein Identity and Related Structures Protein Identity & Related Structures

EPOXIDE HYDROLASE

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–554 Chain B； UniProt 1–554	Not recorded	CDU N-CYCLOHEXYL-N'-DECYLUREA × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；Ammonium sulfate, MES, ethanol, dithiothreitol, CDU (N-cyclohexyl-N'-decylurea), pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.290

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1EK2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CQZ CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE. Deposited 1999-08-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–554（554 aa） Chain B 1–554（554 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；ammonium sulfate, MES, ethanol, dithiothreitol, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.80 Å R-free 0.309
1CR6 CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CPU INHIBITOR Deposited 1999-08-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–554（554 aa） Chain B 1–554（554 aa）	Not recorded	CPU N-CYCLOHEXYL-N'-(PROPYL)PHENYL UREA × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；298 K；ammonium sulfate, MES, ethanol, dithiothreitol, CPU (N-cyclohexyl-N'-(3-phenyl)propyl urea), pH 6.0, VAPOR DIFFUSION, temperature 298.0K	Resolution 2.80 Å R-free 0.312
1EK1 CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CIU INHIBITOR Deposited 2000-03-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–554（554 aa） Chain B 1–554（554 aa）	Not recorded	CIU N-CYCLOHEXYL-N'-(4-IODOPHENYL)UREA × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；Ammonium sulfate, MES, ethanol, dithiothreitol, CIU (N-cyclohexyl-N'-(4-iodophenyl)urea) , pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.10 Å R-free 0.305

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HYES_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–554； UniProt 1–554 Author chain B； PDBConstruct 1–554； UniProt 1–554

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ek2
Deposition date deposition_date	2000-03-06
Structure title title	CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CDU INHIBITOR
Keywords keywords	HOMODIMER, ALPHA/BETA HYDROLASE FOLD, DISUBSTITUTED UREA INHIBITOR, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.41 Å
Radius of gyration Rg (electron density) rg_electron	31.56 Å
Forward intensity I(0) i0	199882000.00
Molecular weight molecular_weight	116840.0 kDa
Excluded volume excluded_volume	147680 Å³
Envelope volume envelope_volume	176400 Å³
Hydration-shell volume shell_volume	45286 Å³
Envelope diameter envelope_diameter	102.9 Å
Shell Rg shell_rg	39.72 Å
Envelope Rg envelope_rg	31.62 Å
Shape Rg shape_rg	31.55 Å
Total Rg total_rg	32.24 Å
Total atoms total_atoms	8218
Residues n_residues	1028
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

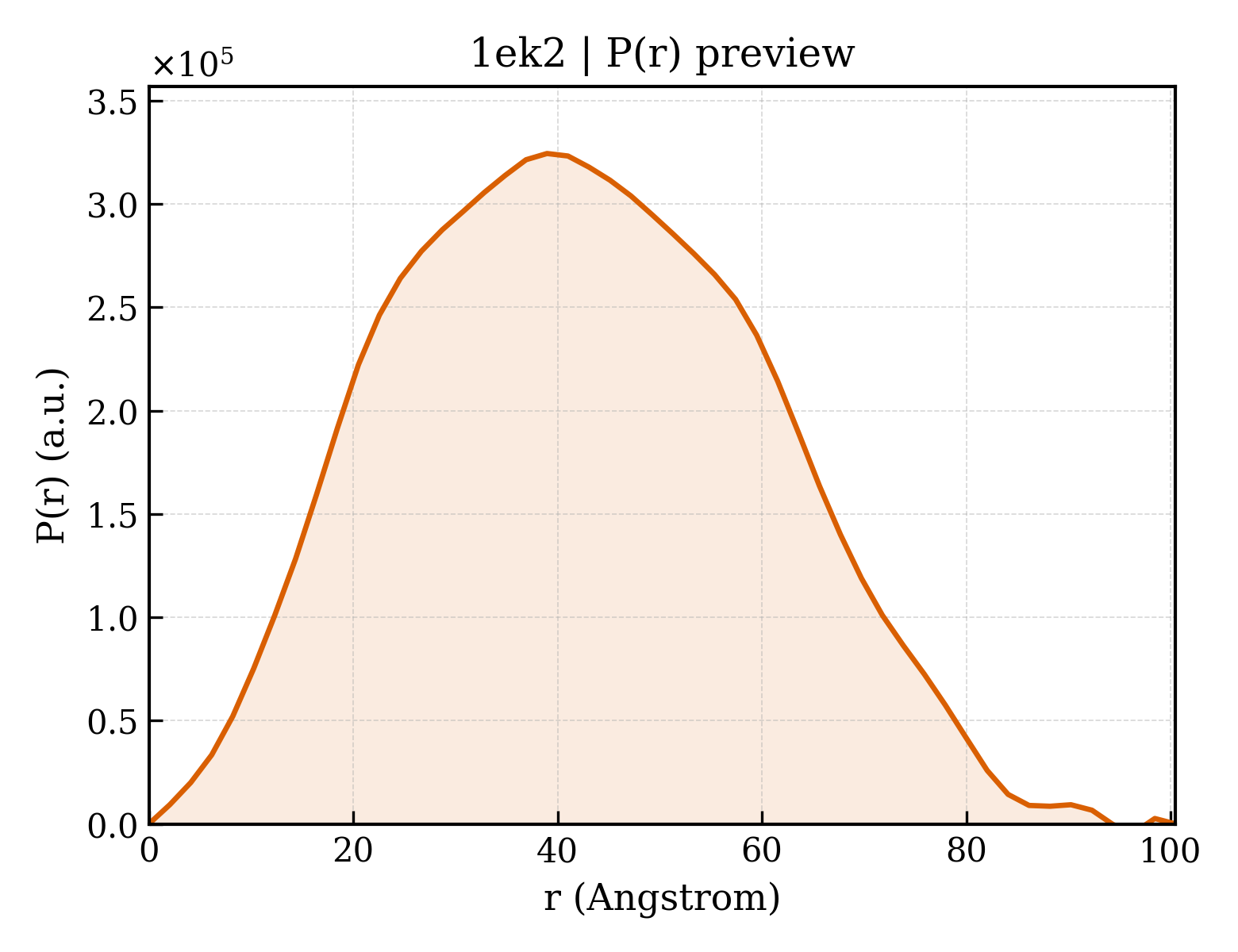

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.5 Å
Rg (real space) rg_real	32.25 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	1.9990e+08
I(0) uncertainty (real space) i0_real_error	3.4500e+06
Rg (reciprocal space) rg_reciprocal	32.33 Å
I(0) (reciprocal space) i0_reciprocal	199900000.0000
Solution quality estimate total_estimate	0.8299
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	39.0 Å
Skewness Skewness skewness	0.152
Kurtosis Kurtosis kurtosis	-0.604
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	88960000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	EPOXIDE HYDROLASE
Molecular weight formula_weight	62582.0 kDa
EC 编号 ec_number	3.3.2.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8237

MALRVAAFDLDGVLALPSIAGAFRRSEEALALPRDFLLGAYQTEFPEGPTEQLMKGKITFSQWVPLMDESYRKSSKACGANLPENFSISQIFSQAMAARSINRPMLQAAIALKKKGFTTCIVTNNWLDDGDKRDSLAQMMCELSQHFDFLIESCQVGMIKPEPQIYNFLLDTLKAKPNEVVFLDDFGSNLKPARDMGMVTILVHNTASALRELEKVTGTQFPEAPLPVPCNPNDVSHGYVTVKPGIRLHFVEMGSGPALCLCHGFPESWFSWRYQIPALAQAGFRVLAIDMKGYGDSSSPPEIEEYAMELLCKEMVTFLDKLGIPQAVFIGHDWAGVMVWNMALFYPERVRAVASLNTPFMPPDPDVSPMKVIRSIPVFNYQLYFQEPGVAEAELEKNMSRTFKSFFRASDETGFIAVHKATEIGGILVNTPEDPNLSKITTEEEIEFYIQQFKKTGFRGPLNWYRNTERNWKWSCKGLGRKILVPALMVTAEKDIVLRPEMSKNMEKWIPFLKRGHIEDCGHWTQIEKPTEVNQILIKWLQTEVQNPSVTSKI

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	N-CYCLOHEXYL-N'-DECYLUREA
Molecular weight formula_weight	282.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ek2a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.2 — YihX-like

Domain ID domain_id	d1ek2a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.11 — Epoxide hydrolase

Domain ID domain_id	d1ek2b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.2 — YihX-like

Domain ID domain_id	d1ek2b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.11 — Epoxide hydrolase

CATH v4.4 (5 domains)

Domain ID domain_id	1ek2A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1ek2A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1ek2B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1ek2B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	240 — Putative phosphatase; domain 2

Domain ID domain_id	1ek2B03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	151.900 Å
Unit-cell length b length_b	143.000 Å
Unit-cell length c length_c	60.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2900

fit	/app/data/saxs_computation/ek/1ek2/1ek2.fit
pddf	/app/data/pr_computation/ek/1ek2/1ek2.pr.out
profile	/app/data/saxs_computation/ek/1ek2/1ek2.dat
