1cuv
CUTINASE, A85F MUTANT

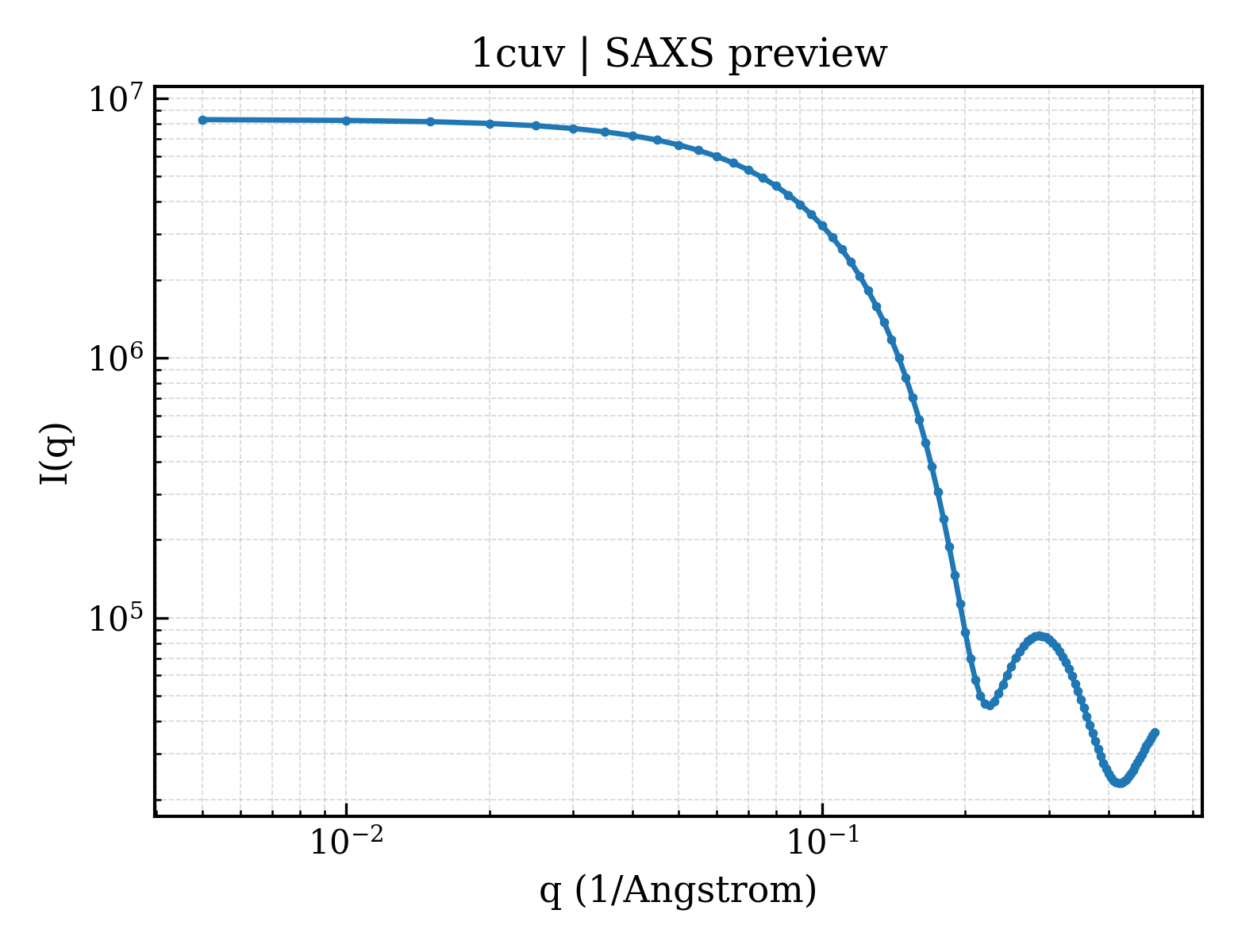

SAXS Profile

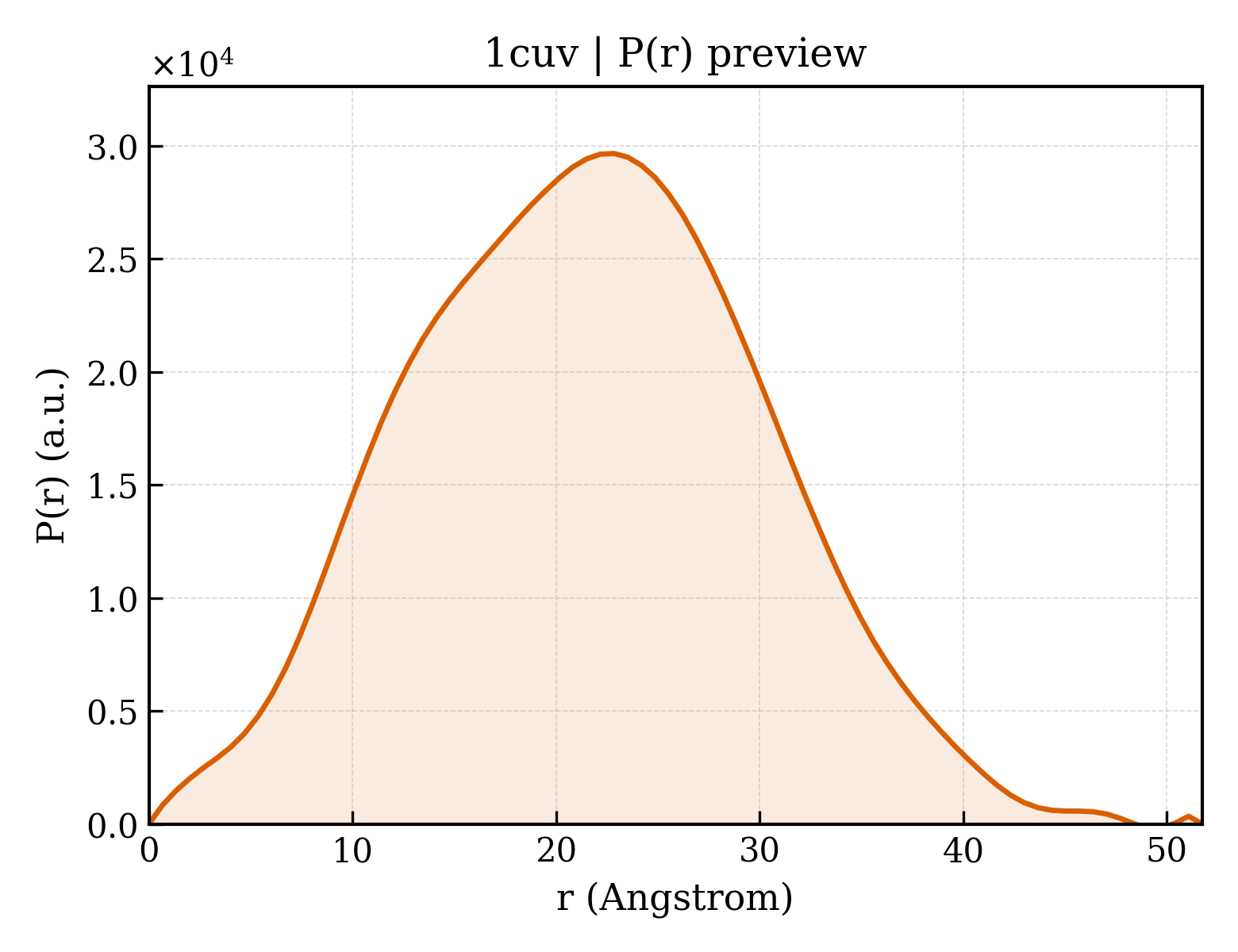

P(r) Distribution
1. Structure Basics
| entry_id | 1cuv |
| deposition_date | 1995-11-16 |
| title | CUTINASE, A85F MUTANT |
| keywords | HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.51 Å |
| rg_electron | 15.20 Å |
| i0 | 8293790.00 |
| molecular_weight | 20541.0 kDa |
| excluded_volume | 25499 ų |
| envelope_volume | 27883 ų |
| shell_volume | 15192 ų |
| envelope_diameter | 51.4 Å |
| shell_rg | 21.46 Å |
| envelope_rg | 15.49 Å |
| shape_rg | 15.17 Å |
| total_rg | 16.35 Å |
| total_atoms | 1781 |
| n_residues | 197 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.7 Å |
| rg_real | 16.37 Å |
| rg_real_error | 0.26 Å |
| i0_real | 8.2940e+06 |
| i0_real_error | 9.8320e+04 |
| rg_reciprocal | 16.38 Å |
| i0_reciprocal | 8294000.0000 |
| total_estimate | 0.8069 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.9 Å |
| skewness | 0.090 |
| kurtosis | -0.375 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2838000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.834; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
