1cub
CUTINASE, N172K, R196D MUTANT, MONOCLINIC CRYSTAL FORM

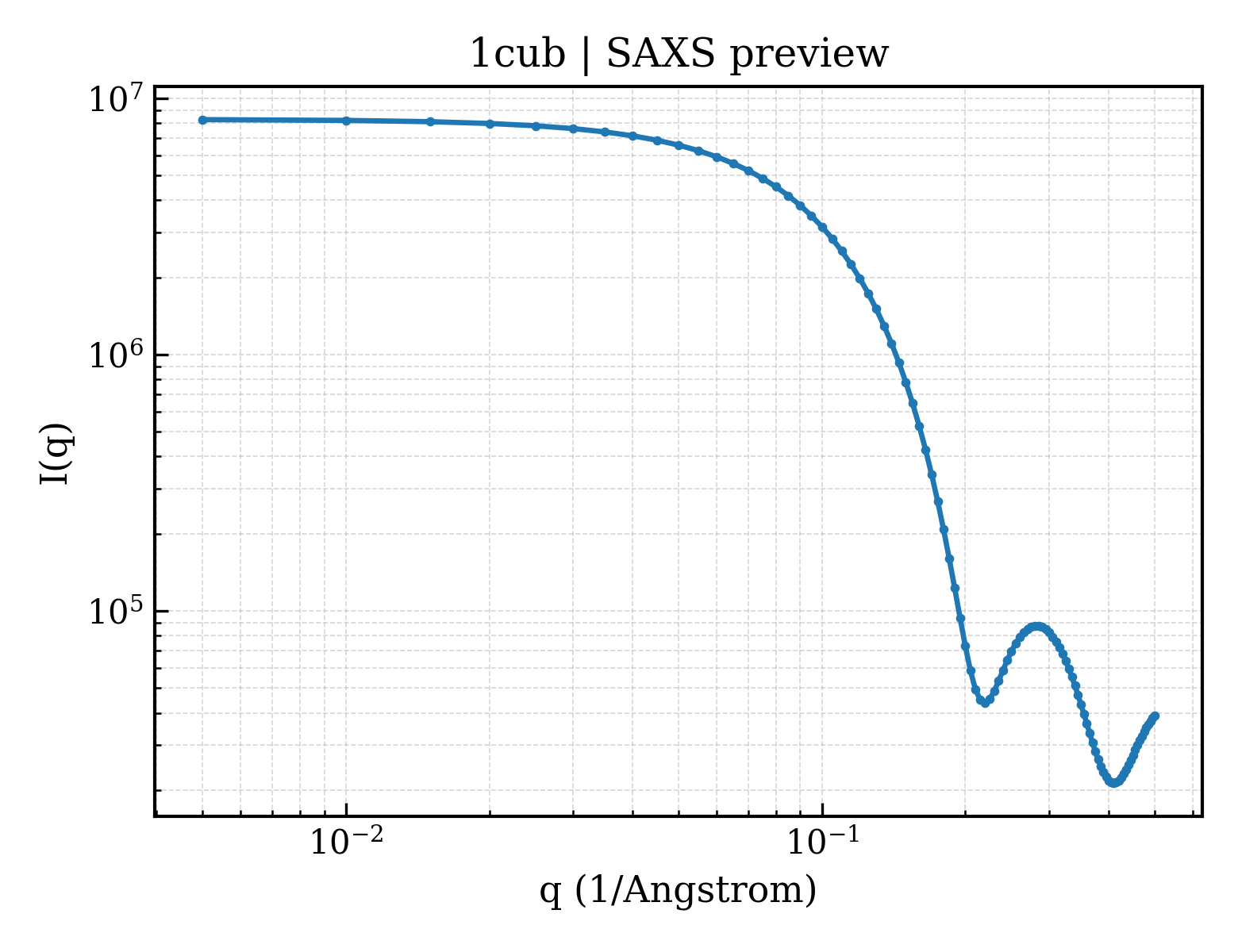

SAXS Profile

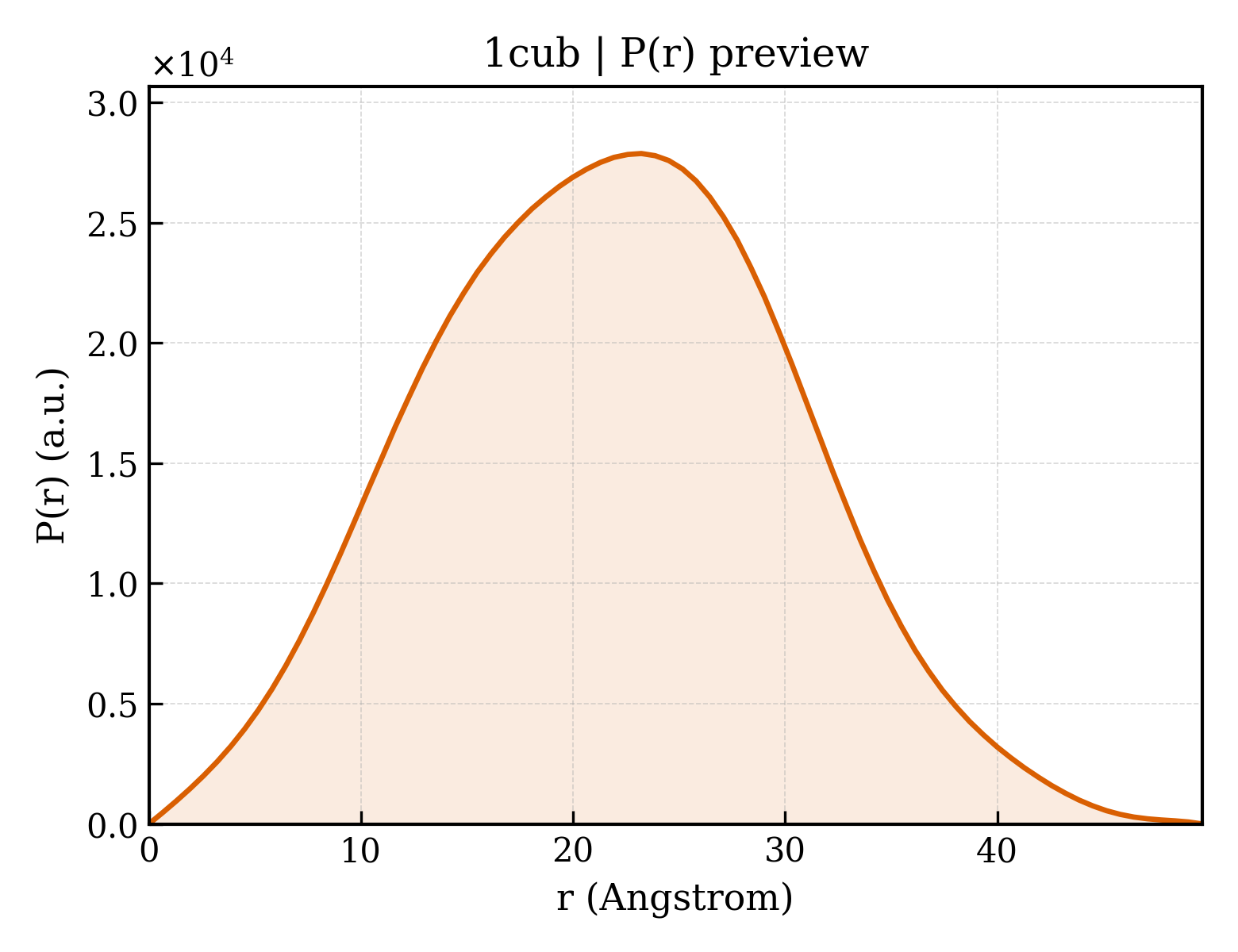

P(r) Distribution
1. Structure Basics
| entry_id | 1cub |
| deposition_date | 1995-11-16 |
| title | CUTINASE, N172K, R196D MUTANT, MONOCLINIC CRYSTAL FORM |
| keywords | HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.69 Å |
| rg_electron | 15.38 Å |
| i0 | 8275250.00 |
| molecular_weight | 20451.0 kDa |
| excluded_volume | 25397 ų |
| envelope_volume | 28671 ų |
| shell_volume | 15467 ų |
| envelope_diameter | 53.1 Å |
| shell_rg | 21.60 Å |
| envelope_rg | 15.62 Å |
| shape_rg | 15.35 Å |
| total_rg | 16.55 Å |
| total_atoms | 1770 |
| n_residues | 197 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.7 Å |
| rg_real | 16.54 Å |
| rg_real_error | 0.07 Å |
| i0_real | 7.9960e+06 |
| i0_real_error | 7.1920e+04 |
| rg_reciprocal | 16.58 Å |
| i0_reciprocal | 8275000.0000 |
| total_estimate | 0.7267 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 23.2 Å |
| skewness | 0.078 |
| kurtosis | -0.408 |
| angular_range | — – 0.4750 Å−1 |
| current_alpha | 10.9200 |
| highest_alpha | 3008000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.918; Stabil: 0.927; Sysdev: 0.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.950 |
