1cuw
CUTINASE, G82A, A85F, V184I, A185L, L189F MUTANT
SAXS Profile

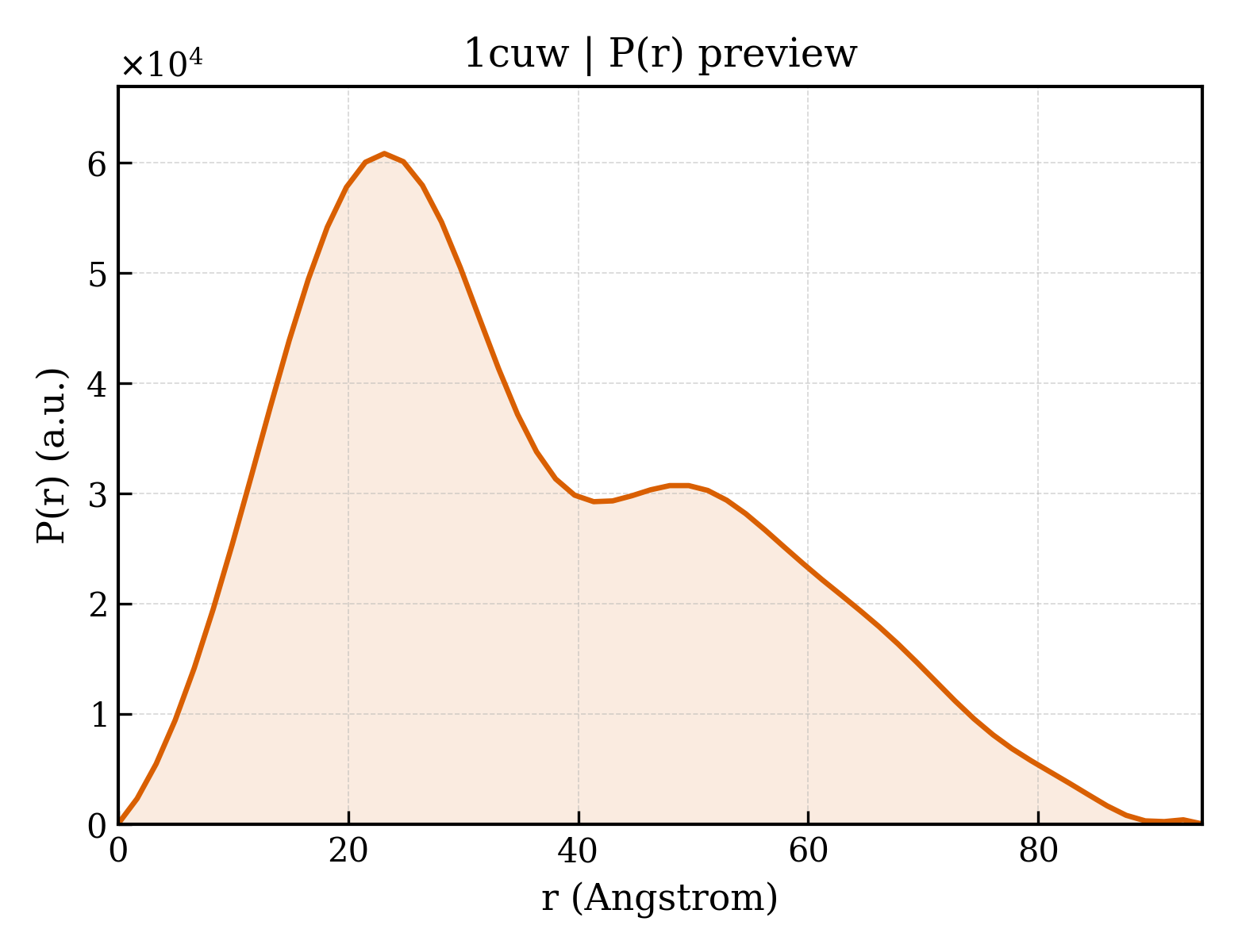

P(r) Distribution
1. Structure Basics
| entry_id | 1cuw |
| deposition_date | 1995-11-16 |
| title | CUTINASE, G82A, A85F, V184I, A185L, L189F MUTANT |
| keywords | HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.00 Å |
| rg_electron | 27.52 Å |
| i0 | 29878200.00 |
| molecular_weight | 41291.0 kDa |
| excluded_volume | 51345 ų |
| envelope_volume | 62370 ų |
| shell_volume | 20747 ų |
| envelope_diameter | 96.5 Å |
| shell_rg | 31.86 Å |
| envelope_rg | 27.54 Å |
| shape_rg | 27.50 Å |
| total_rg | 28.06 Å |
| total_atoms | 3578 |
| n_residues | 394 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 94.3 Å |
| rg_real | 28.43 Å |
| rg_real_error | 0.73 Å |
| i0_real | 2.9880e+07 |
| i0_real_error | 4.2820e+05 |
| rg_reciprocal | 28.30 Å |
| i0_reciprocal | 29880000.0000 |
| total_estimate | 0.7363 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.533 |
| kurtosis | -0.588 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17720000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.424; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.504; Smooth: 0.791 |
