1cux
CUTINASE, L114Y MUTANT

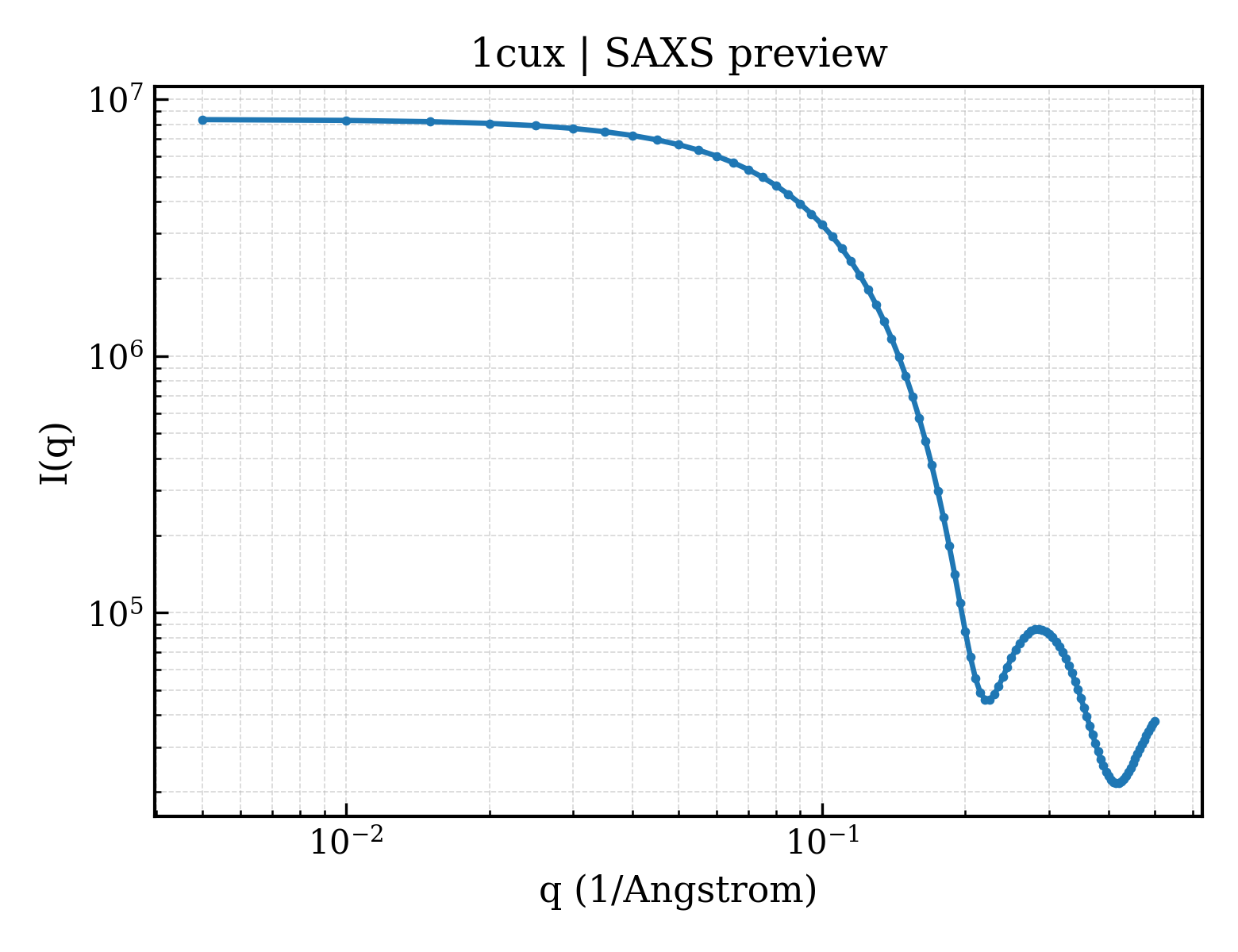

SAXS Profile

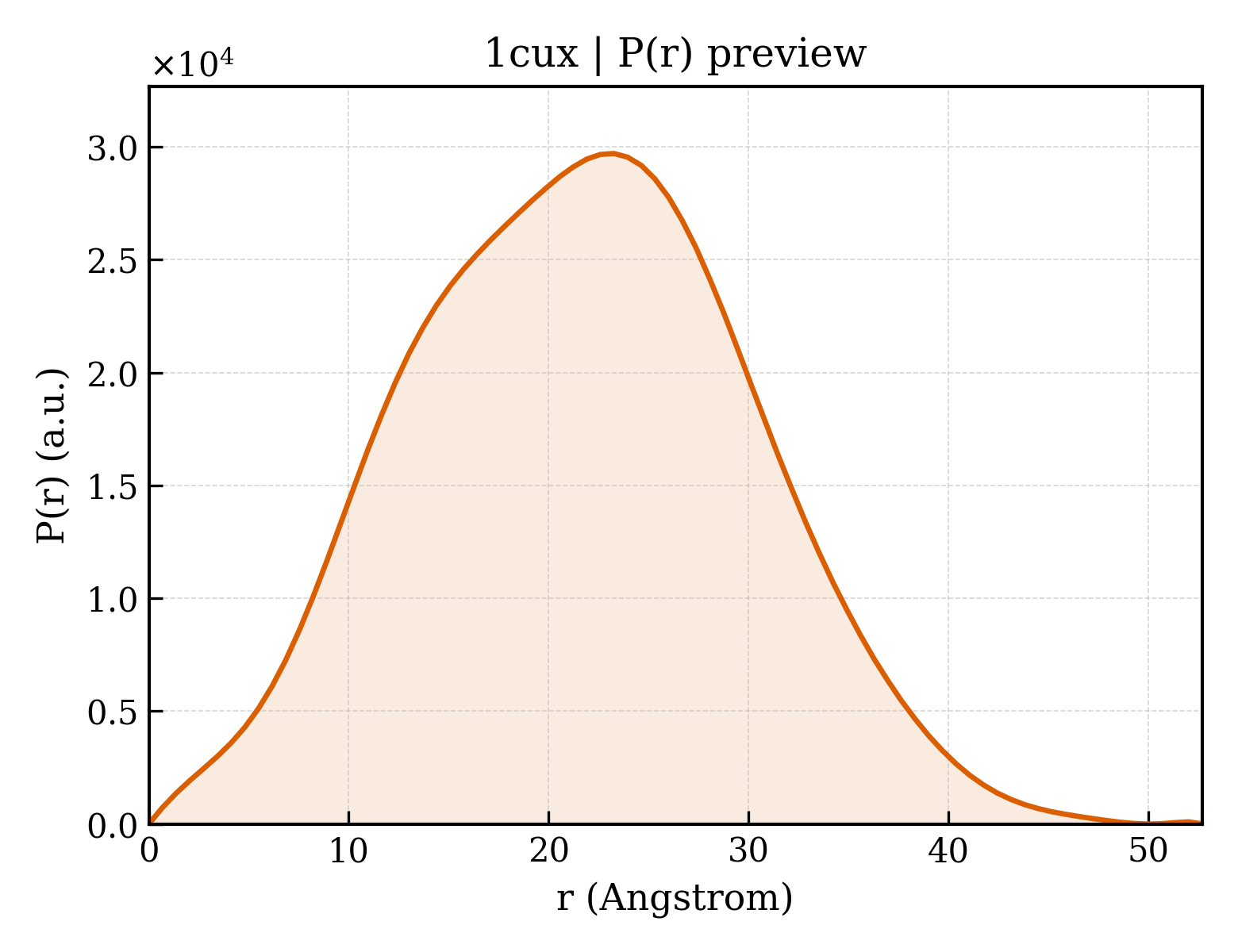

P(r) Distribution
1. Structure Basics
| entry_id | 1cux |
| deposition_date | 1995-11-16 |
| title | CUTINASE, L114Y MUTANT |
| keywords | HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.55 Å |
| rg_electron | 15.22 Å |
| i0 | 8352050.00 |
| molecular_weight | 20515.0 kDa |
| excluded_volume | 25428 ų |
| envelope_volume | 28131 ų |
| shell_volume | 15281 ų |
| envelope_diameter | 52.1 Å |
| shell_rg | 21.52 Å |
| envelope_rg | 15.53 Å |
| shape_rg | 15.18 Å |
| total_rg | 16.39 Å |
| total_atoms | 1780 |
| n_residues | 197 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.7 Å |
| rg_real | 16.40 Å |
| rg_real_error | 0.24 Å |
| i0_real | 8.3520e+06 |
| i0_real_error | 9.4740e+04 |
| rg_reciprocal | 16.42 Å |
| i0_reciprocal | 8352000.0000 |
| total_estimate | 0.8023 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | 0.086 |
| kurtosis | -0.383 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3152000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.000 |
