1cuy
CUTINASE, L189F MUTANT

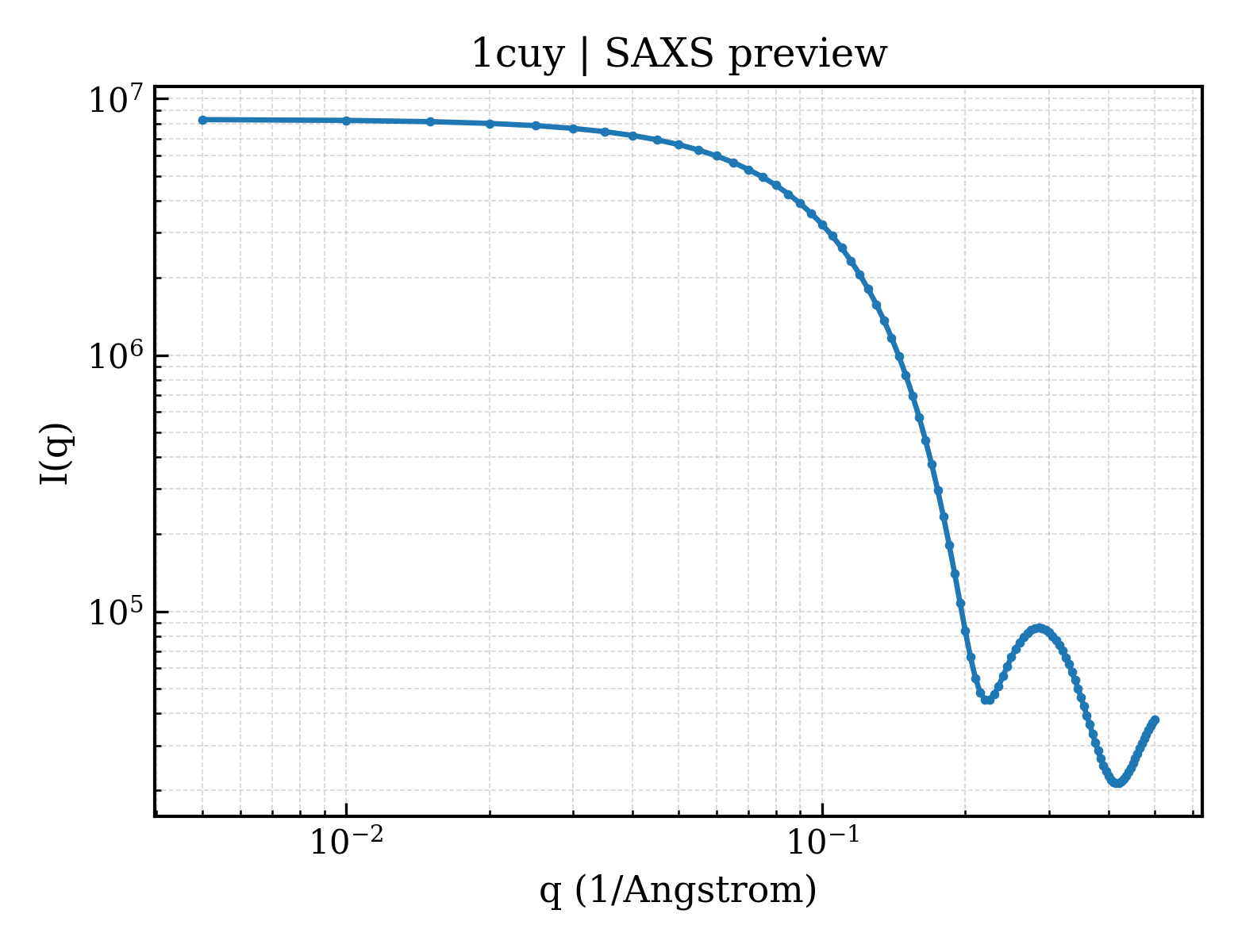

SAXS Profile

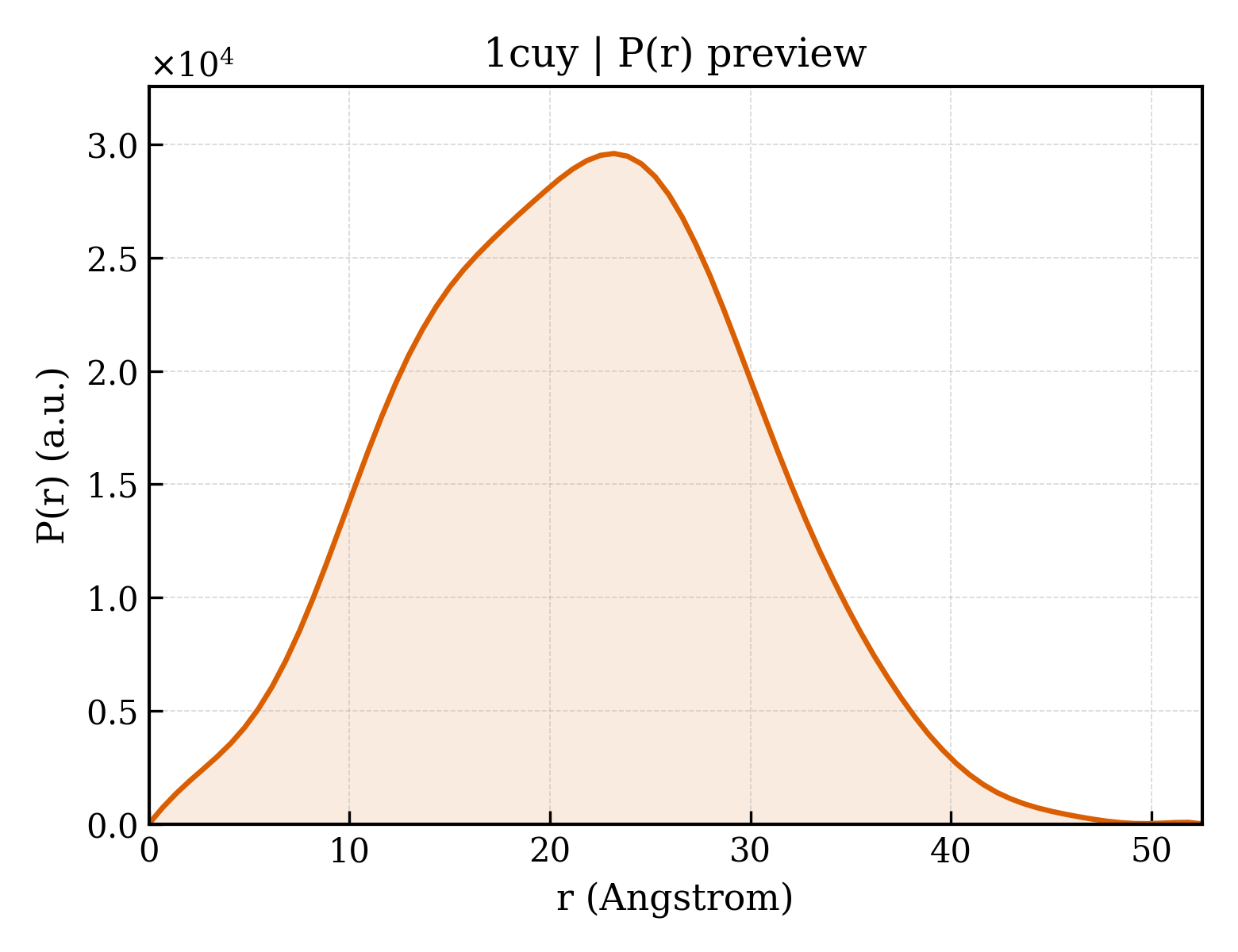

P(r) Distribution
1. Structure Basics
| entry_id | 1cuy |
| deposition_date | 1995-11-16 |
| title | CUTINASE, L189F MUTANT |
| keywords | HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.53 Å |
| rg_electron | 15.21 Å |
| i0 | 8306630.00 |
| molecular_weight | 20499.0 kDa |
| excluded_volume | 25419 ų |
| envelope_volume | 28076 ų |
| shell_volume | 15272 ų |
| envelope_diameter | 52.1 Å |
| shell_rg | 21.46 Å |
| envelope_rg | 15.50 Å |
| shape_rg | 15.18 Å |
| total_rg | 16.36 Å |
| total_atoms | 1778 |
| n_residues | 197 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.5 Å |
| rg_real | 16.38 Å |
| rg_real_error | 0.25 Å |
| i0_real | 8.3070e+06 |
| i0_real_error | 9.5010e+04 |
| rg_reciprocal | 16.40 Å |
| i0_reciprocal | 8307000.0000 |
| total_estimate | 0.8790 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.2 Å |
| skewness | 0.082 |
| kurtosis | -0.390 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3170000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.992 |
