CUTINASE, L81G, L182G MUTANT

Method: X-RAY DIFFRACTION D_max: 51.7 Å Quality: GOOD

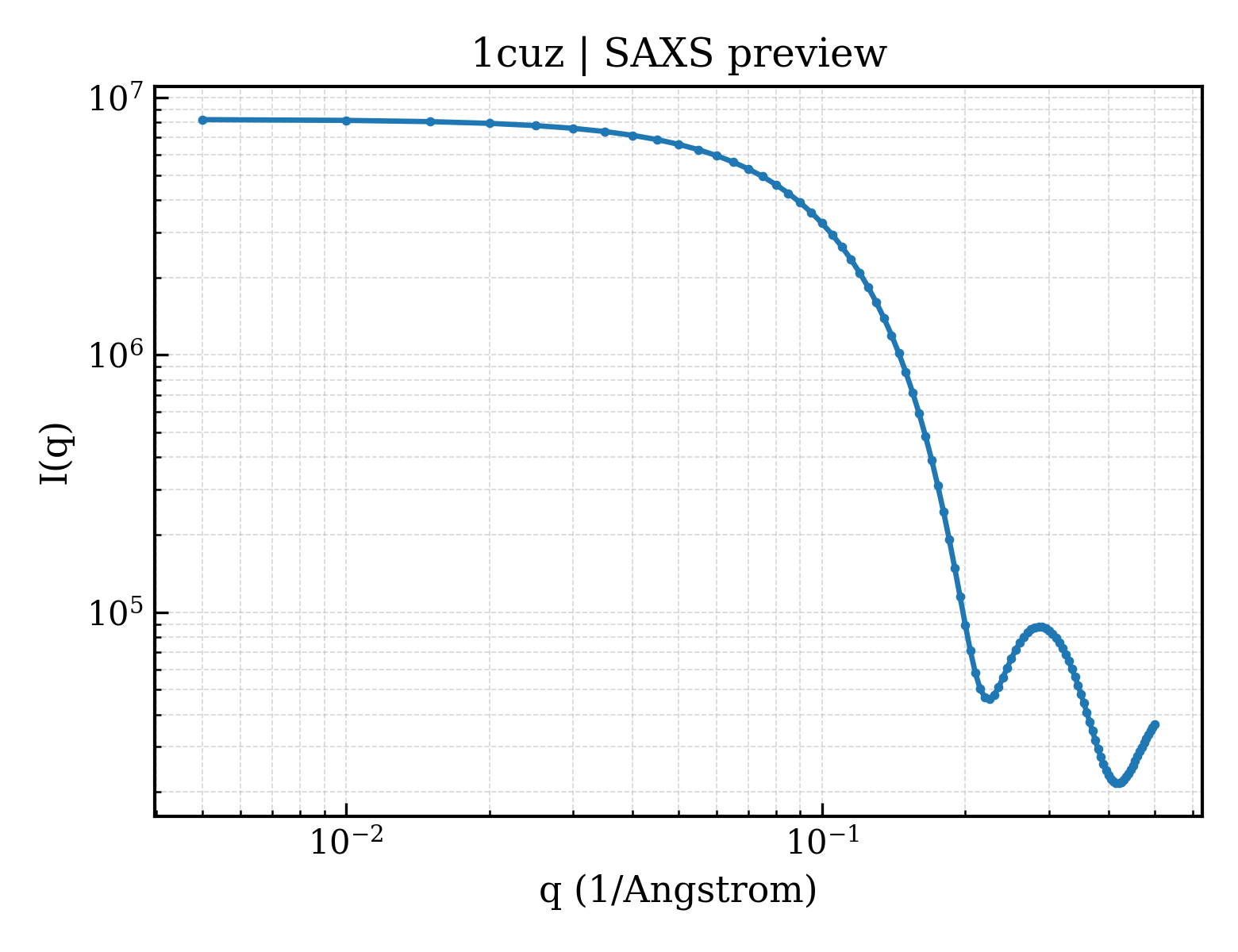

SAXS Profile

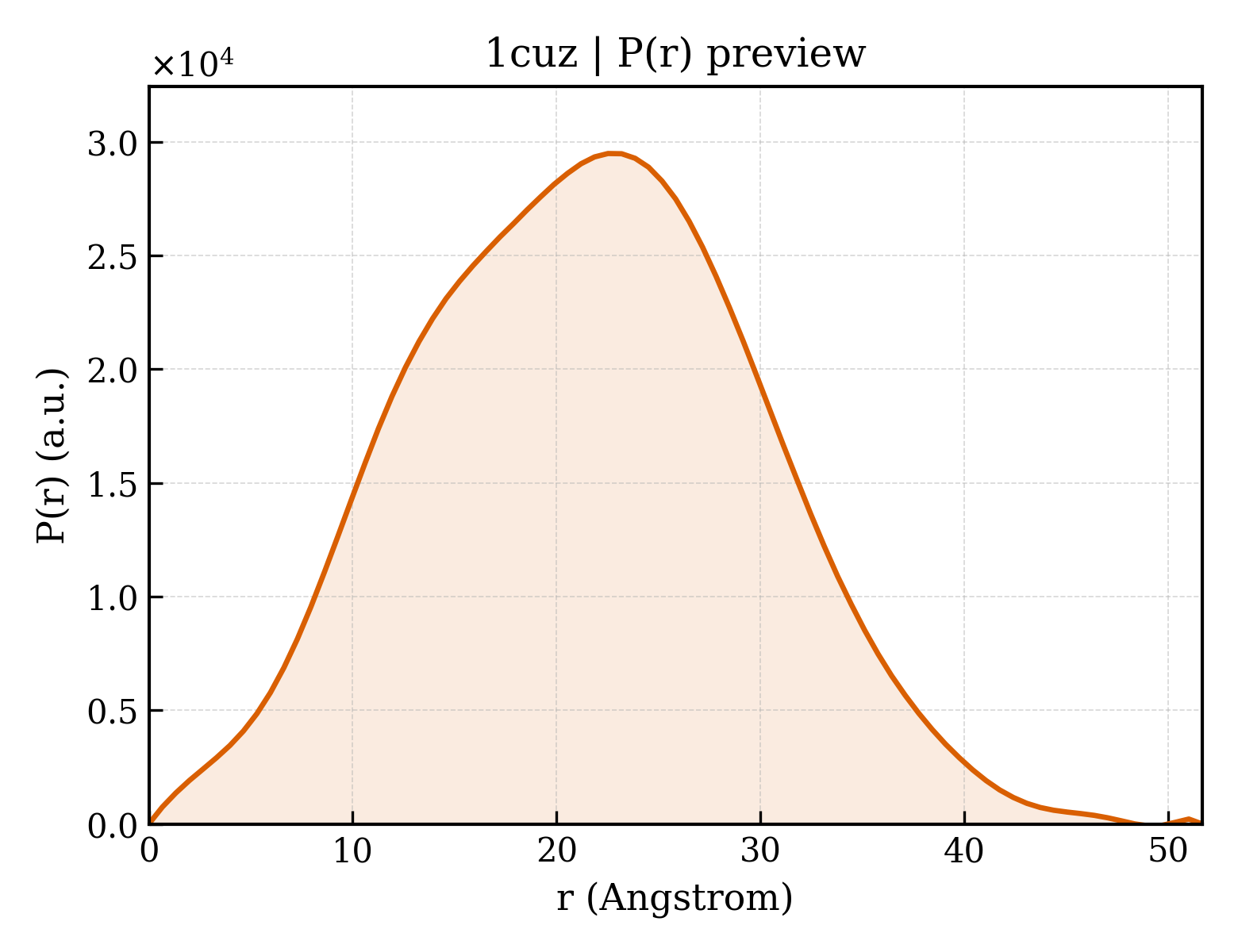

P(r) Distribution

▼

1. Structure Basics

entry_id	1cuz
deposition_date	1995-11-16
title	CUTINASE, L81G, L182G MUTANT
keywords	HYDROLASE, SERINE ESTERASE, GLYCOPROTEIN, HYDROLASE (SERINE ESTERASE); HYDROLASE (SERINE ESTERASE)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.41 Å
rg_electron	15.08 Å
i0	8224290.00
molecular_weight	20266.0 kDa
excluded_volume	25069 Å³
envelope_volume	27358 Å³
shell_volume	15040 Å³
envelope_diameter	51.8 Å
shell_rg	21.35 Å
envelope_rg	15.34 Å
shape_rg	15.05 Å
total_rg	16.22 Å
total_atoms	1759
n_residues	196
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	51.7 Å
rg_real	16.27 Å
rg_real_error	0.25 Å
i0_real	8.2240e+06
i0_real_error	8.2170e+04
rg_reciprocal	16.29 Å
i0_reciprocal	8224000.0000
total_estimate	0.8057
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	22.5 Å
skewness	0.081
kurtosis	-0.381
angular_range	— – 0.4850 Å⁻¹
current_alpha	0.0000
highest_alpha	2862000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.830; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (5)

▶

length_a	35.120 Å
length_b	67.360 Å
length_c	37.050 Å
angle_alpha	90.00 °
angle_beta	93.90 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.100 Å
resolution_low	6.000 Å
r_factor	0.1370
r_work	0.1370
r_free	—

description	CUTINASE
formula_weight	22166.7 kDa
ec_number	3.1.1.3
mutation	L81G, L182G
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2359

CUTINASE, L81G, L182G MUTANT

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (5)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Nectria haematococca mpVI
ncbi_taxonomy_id	70791
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	200

fit	/app/data/saxs_computation/cu/1cuz/1cuz.fit
pddf	/app/data/pr_computation/cu/1cuz/1cuz.pr.out
profile	/app/data/saxs_computation/cu/1cuz/1cuz.dat
