SAXSdb — 1cv8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

STAPHOPAIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–174	Not recorded	ACT ACETATE ION × 2 E64 N-[N-[1-HYDROXYCARBOXYETHYL-CARBONYL]LEUCYLAMINO-BUTYL]-GUANIDINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6；5 M AMMONIUM ACETATE, 2MM DTT, 5MM E-64, 50 MM MES/TRIS BUFFER PH 6.0 5MM E-64	Resolution 1.75 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	SSPP_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–174； UniProt 1–174

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cv8
Deposition date deposition_date	1998-05-08
Structure title title	STAPHOPAIN, CYSTEINE PROTEINASE FROM STAPHYLOCOCCUS AUREUS V8
Keywords keywords	CYSTEINE PROTEASE, THIOL PROTEASE, PAPAIN FAMILY; CYSTEINE PROTEASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.09 Å
Radius of gyration Rg (electron density) rg_electron	15.76 Å
Forward intensity I(0) i0	8176550.00
Molecular weight molecular_weight	20110.0 kDa
Excluded volume excluded_volume	24779 Å³
Envelope volume envelope_volume	28165 Å³
Hydration-shell volume shell_volume	15062 Å³
Envelope diameter envelope_diameter	57.4 Å
Shell Rg shell_rg	21.72 Å
Envelope Rg envelope_rg	16.17 Å
Shape Rg shape_rg	15.76 Å
Total Rg total_rg	16.76 Å
Total atoms total_atoms	1416
Residues n_residues	173
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.1 Å
Rg (real space) rg_real	17.01 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	8.1770e+06
I(0) uncertainty (real space) i0_real_error	8.5490e+04
Rg (reciprocal space) rg_reciprocal	17.02 Å
I(0) (reciprocal space) i0_reciprocal	8177000.0000
Solution quality estimate total_estimate	0.8629
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.2 Å
Skewness Skewness skewness	0.230
Kurtosis Kurtosis kurtosis	-0.210
Angular range angular_range	— – 0.4650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1989000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	STAPHOPAIN
Molecular weight formula_weight	19870.1 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1539

YNEQYVNKLENFKIRETQGNNGWCAGYTMSALLNATYNTNKYHAEAVMRFLHPNLQGQQFQFTGLTPREMIYFGQTQGRSPQLLNRMTTYNEVDNLTKNNKGIAILGSRVESRNGMHAGHAMAVVGNAKLNNGQEVIIIWNPWDNGFMTQDAKNNVIPVSNGDHYQWYSSIYGY

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	N-[N-[1-HYDROXYCARBOXYETHYL-CARBONYL]LEUCYLAMINO-BUTYL]-GUANIDINE
Molecular weight formula_weight	360.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1cv8a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.1 — Papain-like

CATH v4.4 (1 domains)

Domain ID domain_id	1cv8A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.139 Å
Unit-cell length b length_b	61.139 Å
Unit-cell length c length_c	195.063 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1830
R_work r_work	0.2000
R_free r_free	0.2390

fit	/app/data/saxs_computation/cv/1cv8/1cv8.fit
pddf	/app/data/pr_computation/cv/1cv8/1cv8.pr.out
profile	/app/data/saxs_computation/cv/1cv8/1cv8.dat

STAPHOPAIN, CYSTEINE PROTEINASE FROM STAPHYLOCOCCUS AUREUS V8

1. Protein Identity and Related Structures Protein Identity & Related Structures

STAPHOPAIN

State in the Current Structure

Other States of the Same Protein in the Database

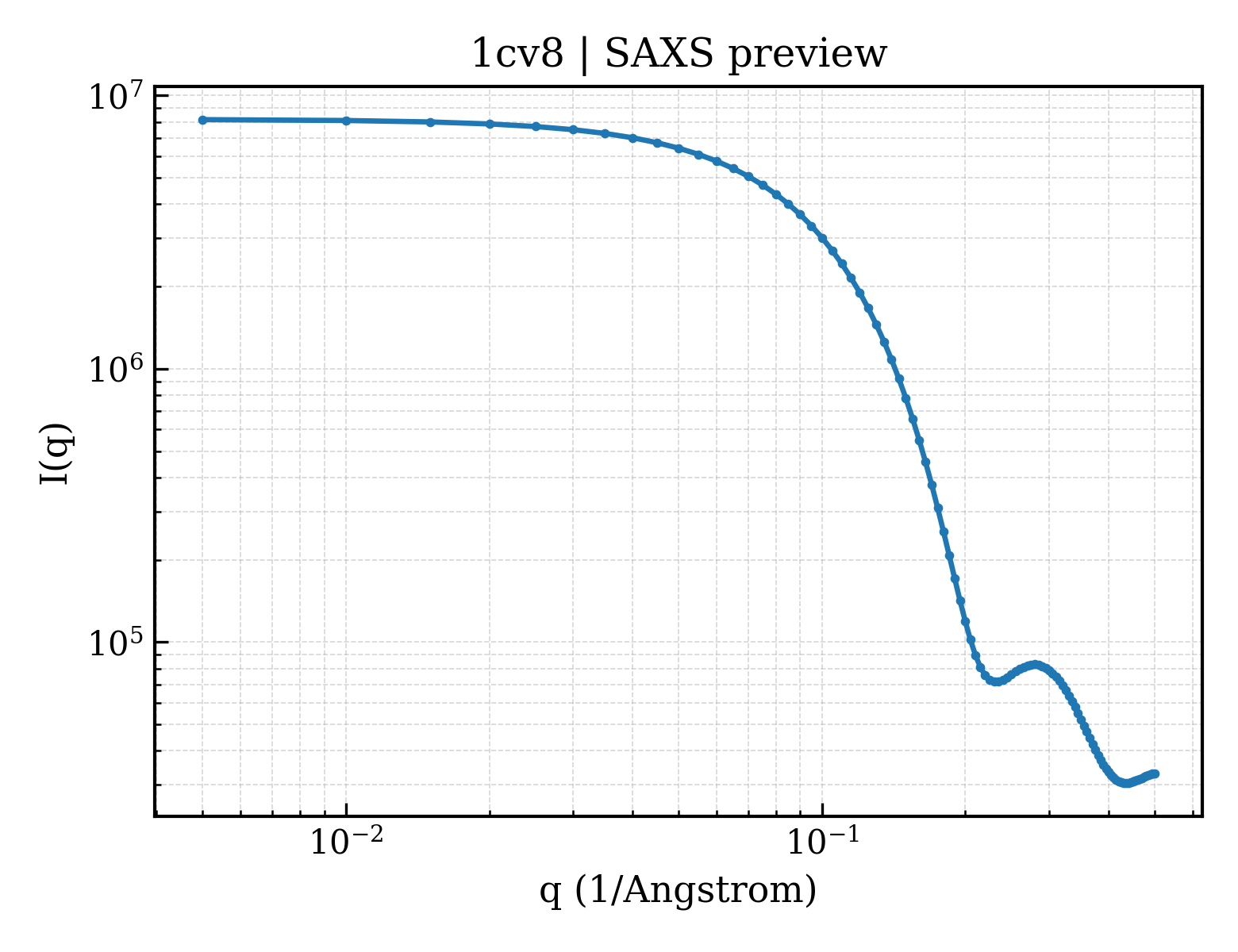

SAXS scattering curve SAXS Profile
