1cwh
HUMAN CYCLOPHILIN A COMPLEXED WITH 3-D-SER CYCLOSPORIN

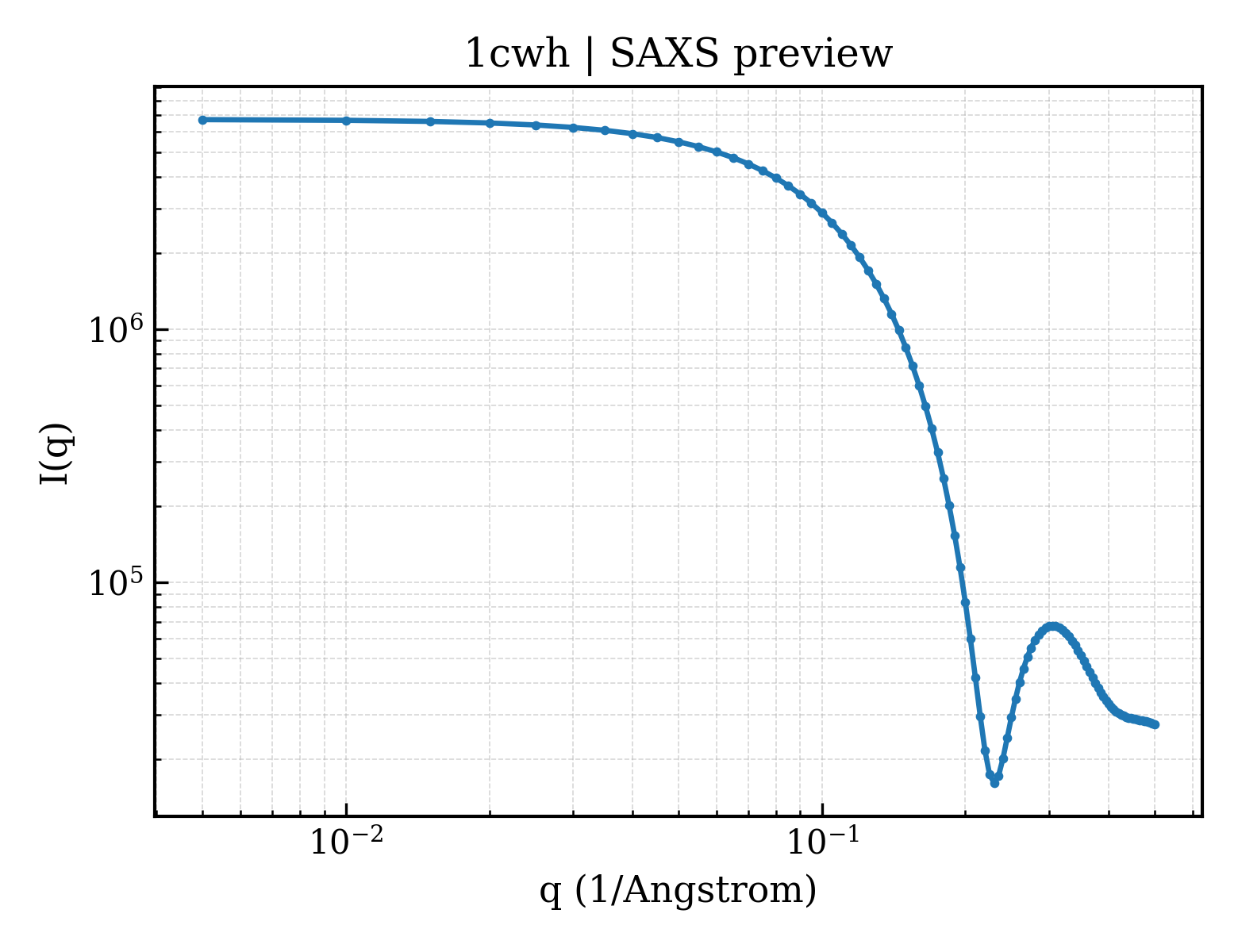

SAXS Profile

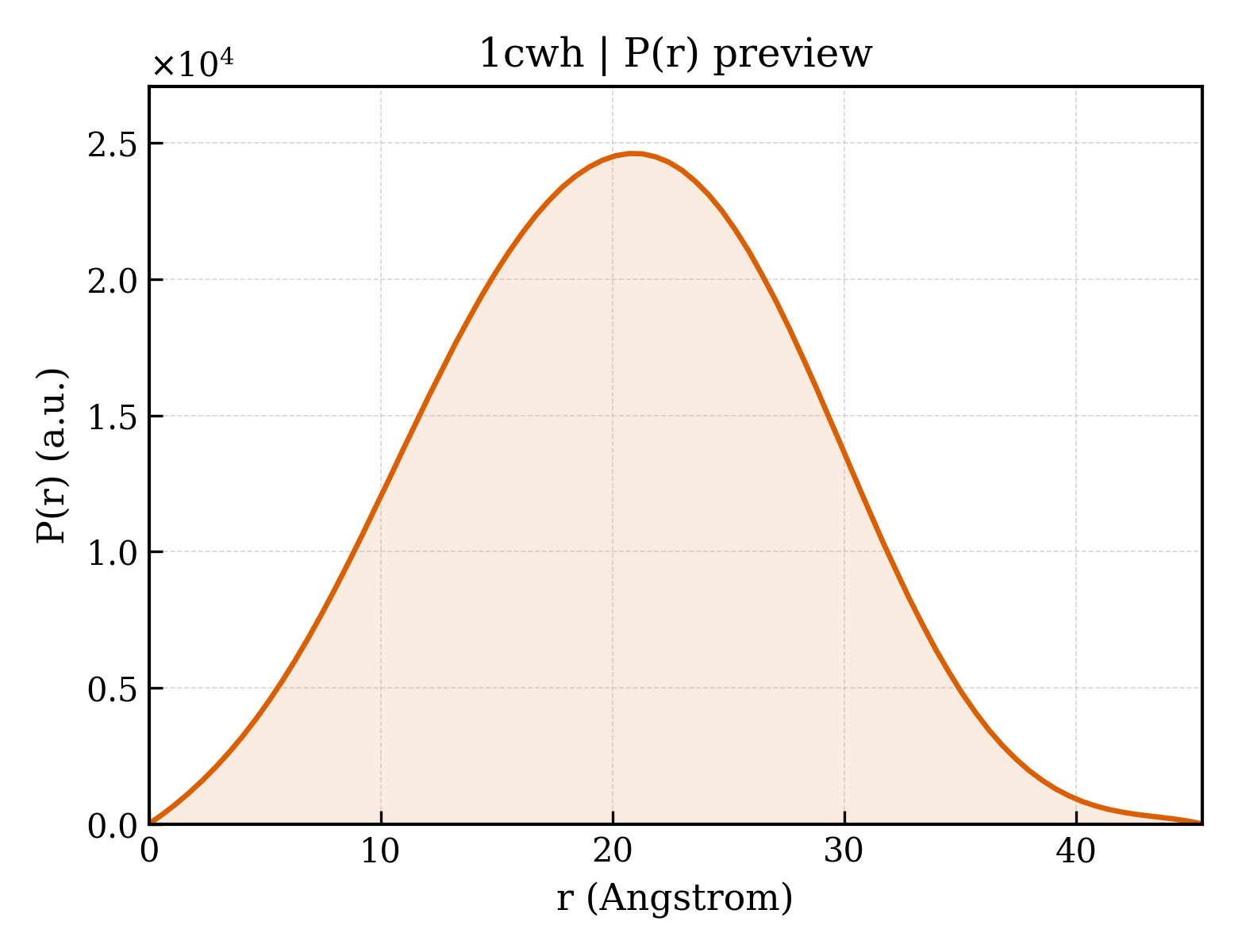

P(r) Distribution
1. Structure Basics
| entry_id | 1cwh |
| deposition_date | 1998-05-07 |
| title | HUMAN CYCLOPHILIN A COMPLEXED WITH 3-D-SER CYCLOSPORIN |
| keywords | ISOMERASE-IMMUNOSUPPRESSANT COMPLEX, CYCLOPHILIN-CYCLOSPORIN COMPLEX, CYCLOSPORIN A, IMMUNOSUPPRESSANT, CYCLOPHILIN; ISOMERASE/IMMUNOSUPPRESSANT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.68 Å |
| rg_electron | 14.55 Å |
| i0 | 6727980.00 |
| molecular_weight | 19255.0 kDa |
| excluded_volume | 24267 ų |
| envelope_volume | 25921 ų |
| shell_volume | 14635 ų |
| envelope_diameter | 47.2 Å |
| shell_rg | 20.88 Å |
| envelope_rg | 14.83 Å |
| shape_rg | 14.51 Å |
| total_rg | 15.80 Å |
| total_atoms | 1353 |
| n_residues | 167 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.5 Å |
| rg_real | 15.49 Å |
| rg_real_error | 0.05 Å |
| i0_real | 6.4790e+06 |
| i0_real_error | 4.9980e+04 |
| rg_reciprocal | 15.55 Å |
| i0_reciprocal | 6728000.0000 |
| total_estimate | 0.7212 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 20.7 Å |
| skewness | 0.033 |
| kurtosis | -0.433 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 12.7000 |
| highest_alpha | 2415000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.941; Stabil: 0.916; Sysdev: 0.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.852 |
