1cwm
HUMAN CYCLOPHILIN A COMPLEXED WITH 4 MEILE CYCLOSPORIN

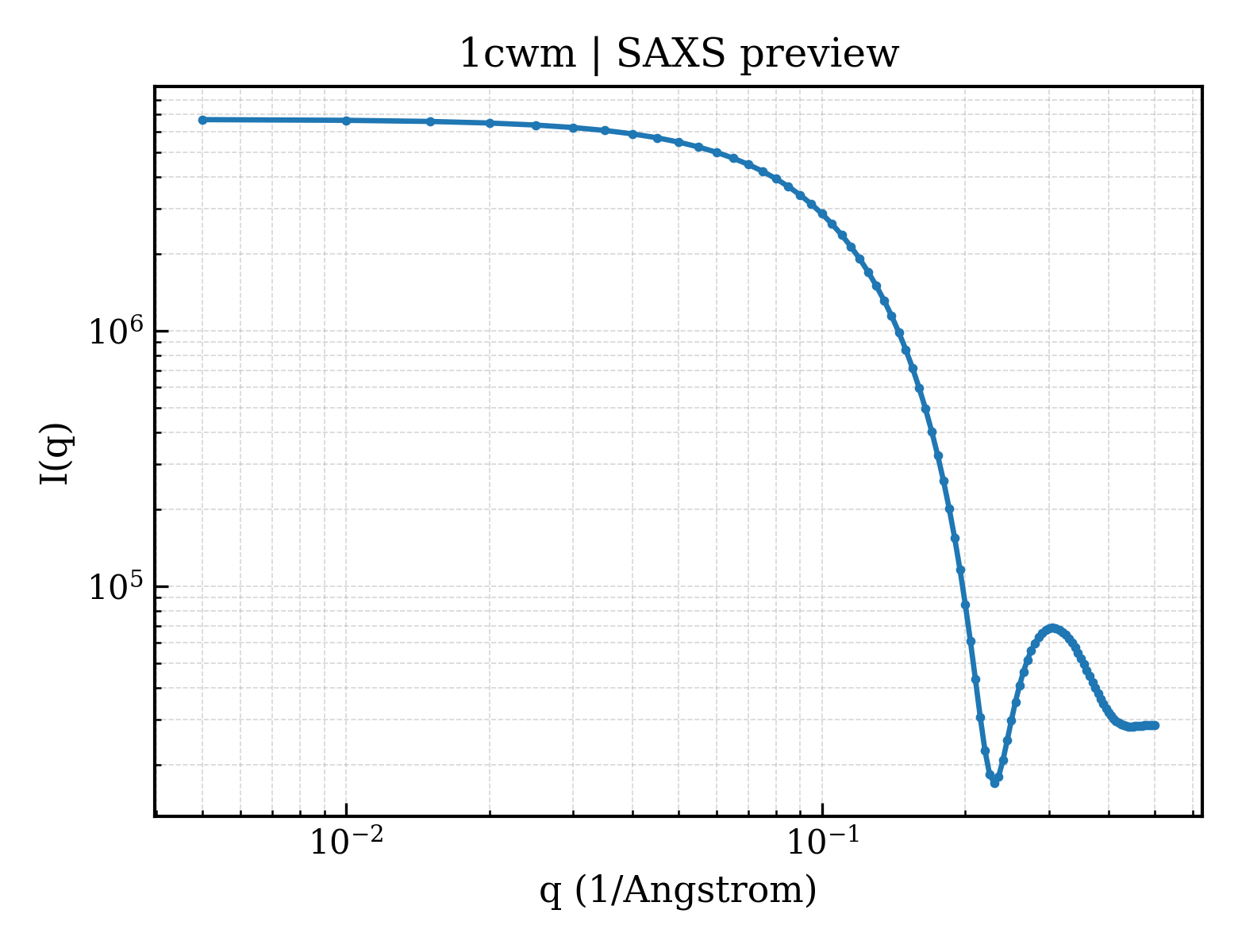

SAXS Profile

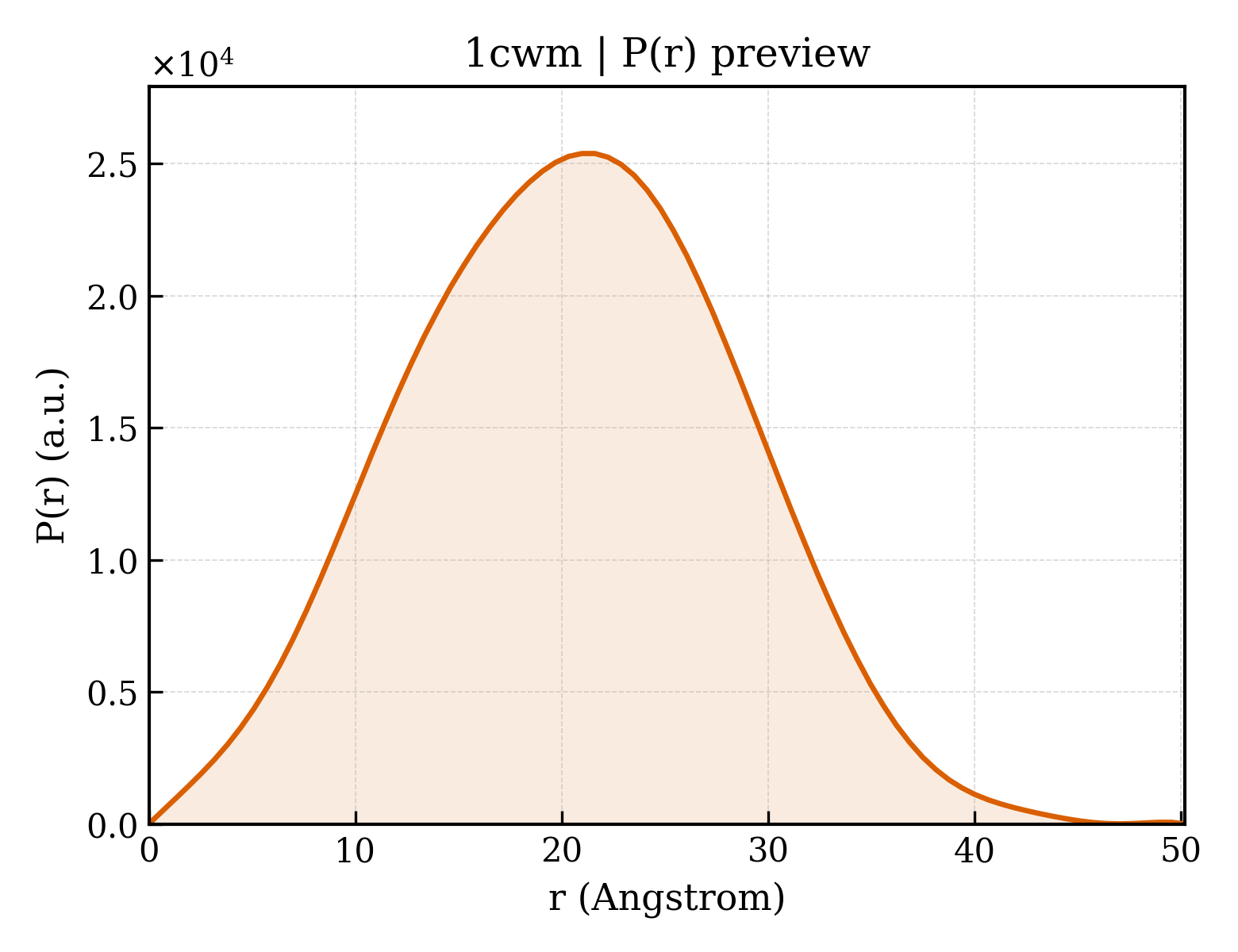

P(r) Distribution
1. Structure Basics
| entry_id | 1cwm |
| deposition_date | 1998-05-26 |
| title | HUMAN CYCLOPHILIN A COMPLEXED WITH 4 MEILE CYCLOSPORIN |
| keywords | ISOMERASE-IMMUNOSUPPRESSANT COMPLEX, CYCLOPHILIN-CYCLOSPORIN COMPLEX, CYCLOSPORIN A, IMMUNOSUPPRESSANT, CYCLOPHILIN; ISOMERASE/IMMUNOSUPPRESSANT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.70 Å |
| rg_electron | 14.55 Å |
| i0 | 6704110.00 |
| molecular_weight | 19225.0 kDa |
| excluded_volume | 24231 ų |
| envelope_volume | 25926 ų |
| shell_volume | 14644 ų |
| envelope_diameter | 51.1 Å |
| shell_rg | 20.96 Å |
| envelope_rg | 14.84 Å |
| shape_rg | 14.52 Å |
| total_rg | 15.81 Å |
| total_atoms | 1351 |
| n_residues | 167 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.2 Å |
| rg_real | 15.57 Å |
| rg_real_error | 0.21 Å |
| i0_real | 6.7040e+06 |
| i0_real_error | 5.9260e+04 |
| rg_reciprocal | 15.58 Å |
| i0_reciprocal | 6704000.0000 |
| total_estimate | 0.8785 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 48.9 Å |
| skewness | 0.058 |
| kurtosis | -0.380 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2566000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.993 |
