1cwo
HUMAN CYCLOPHILIN A COMPLEXED WITH THR2, LEU5, D-HIV8, LEU10 CYCLOSPORIN

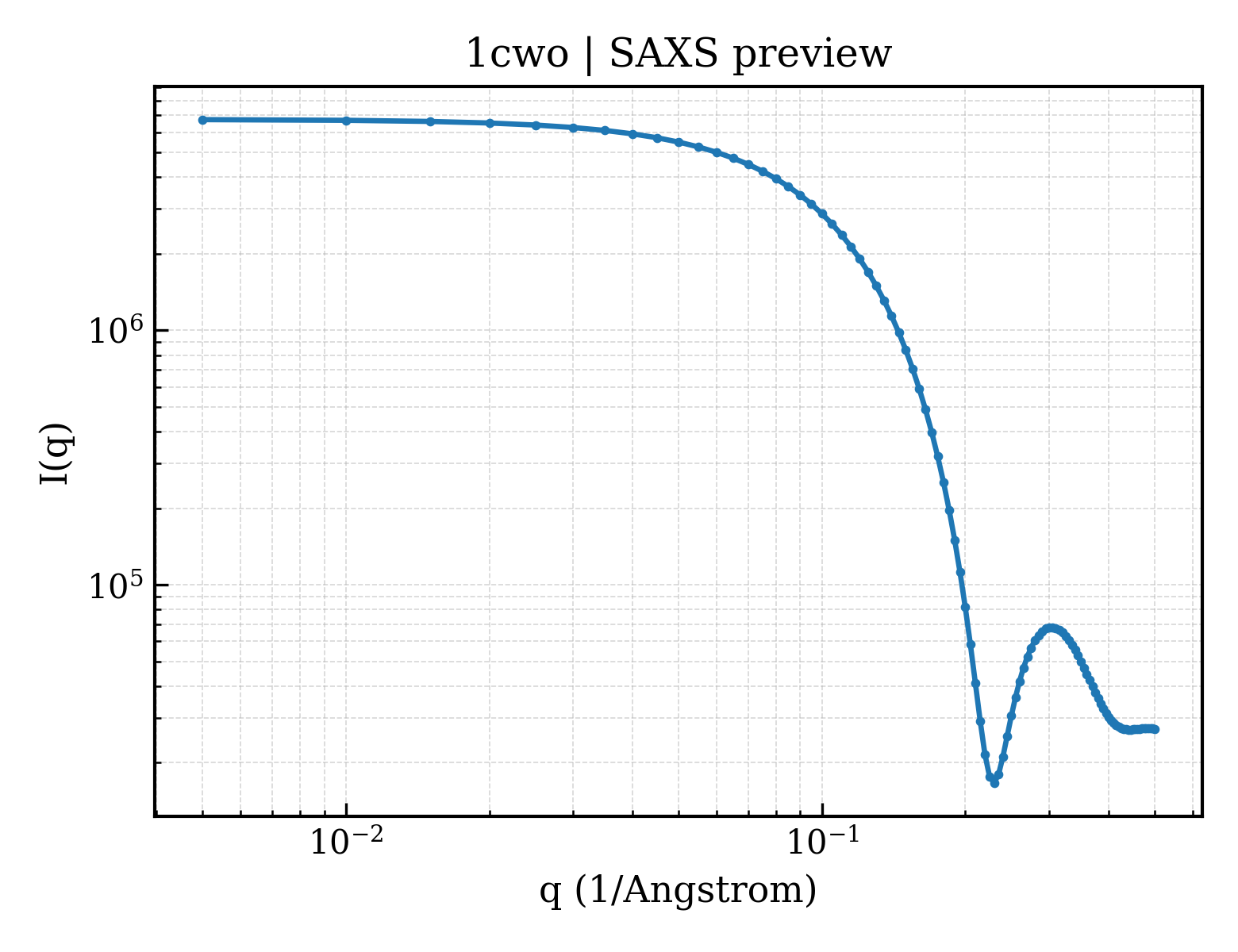

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cwo |
| deposition_date | 1998-06-05 |
| title | HUMAN CYCLOPHILIN A COMPLEXED WITH THR2, LEU5, D-HIV8, LEU10 CYCLOSPORIN |
| keywords | ISOMERASE-IMMUNOSUPPRESSANT COMPLEX, CYCLOPHILIN-CYCLOSPORIN COMPLEX, CYCLOSPORIN C, IMMUNOSUPPRESSANT; ISOMERASE/IMMUNOSUPPRESSANT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.73 Å |
| rg_electron | 14.60 Å |
| i0 | 6745980.00 |
| molecular_weight | 19268.0 kDa |
| excluded_volume | 24285 ų |
| envelope_volume | 26260 ų |
| shell_volume | 14768 ų |
| envelope_diameter | 50.2 Å |
| shell_rg | 20.97 Å |
| envelope_rg | 14.88 Å |
| shape_rg | 14.57 Å |
| total_rg | 15.87 Å |
| total_atoms | 1645 |
| n_residues | 169 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.0 Å |
| rg_real | 15.59 Å |
| rg_real_error | 0.23 Å |
| i0_real | 6.7460e+06 |
| i0_real_error | 6.7920e+04 |
| rg_reciprocal | 15.61 Å |
| i0_reciprocal | 6746000.0000 |
| total_estimate | 0.8106 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.1 Å |
| skewness | 0.047 |
| kurtosis | -0.400 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2682000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000 |
