1cwx
SOLUTION STRUCTURE OF THE HEPATITIS C VIRUS N-TERMINAL CAPSID PROTEIN 2-45 [C-HCV(2-45)]

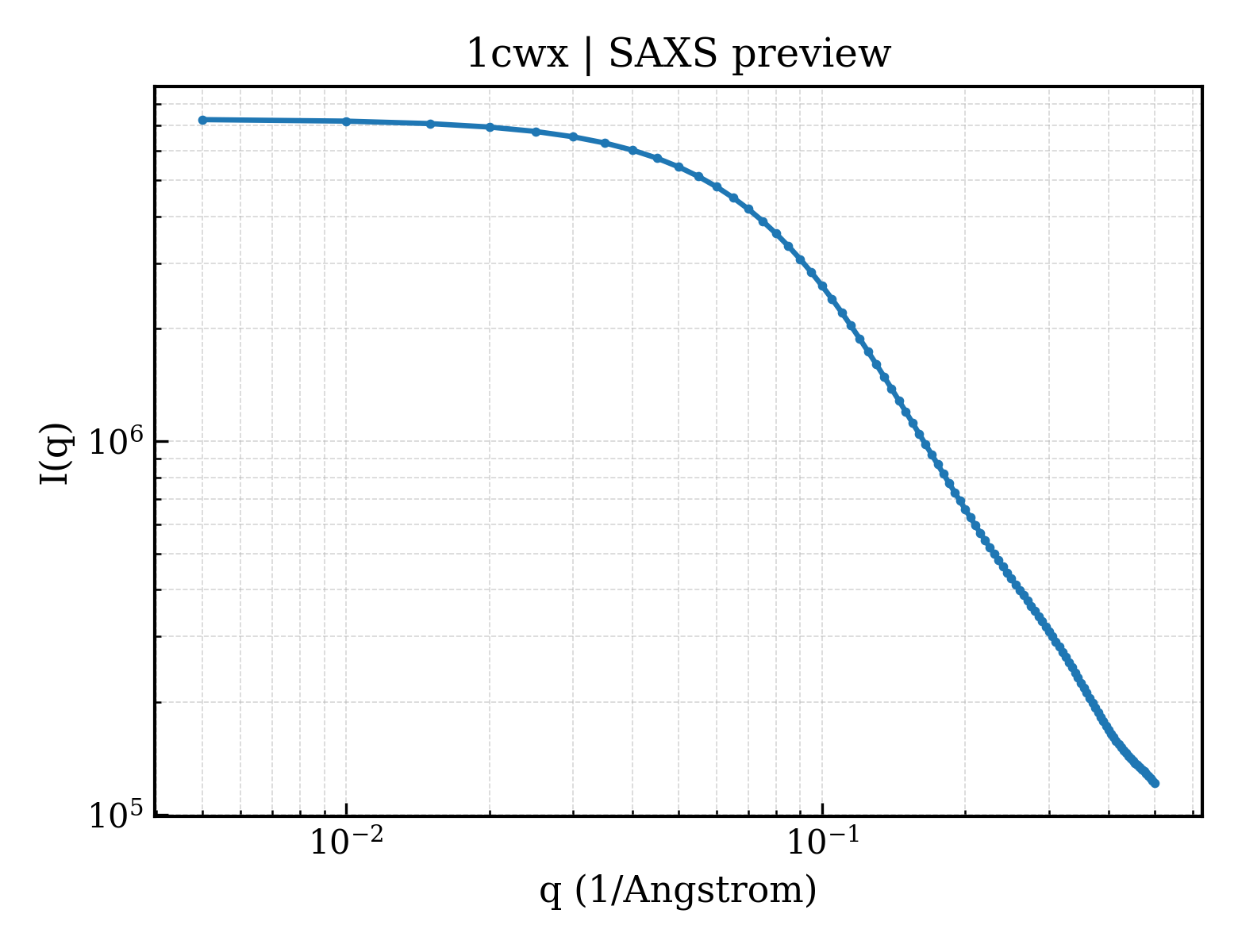

SAXS Profile

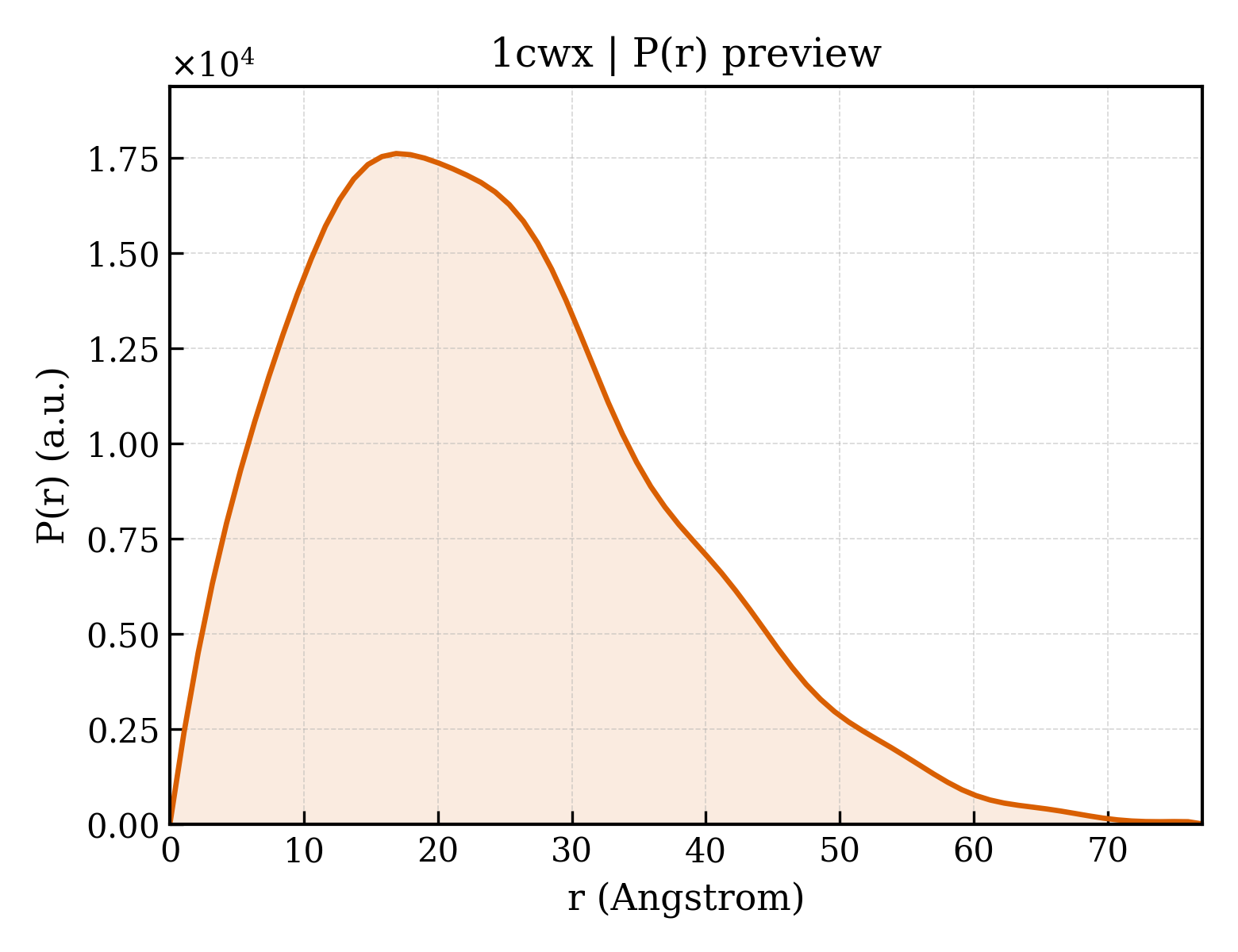

P(r) Distribution
1. Structure Basics
| entry_id | 1cwx |
| deposition_date | 1999-08-27 |
| title | SOLUTION STRUCTURE OF THE HEPATITIS C VIRUS N-TERMINAL CAPSID PROTEIN 2-45 [C-HCV(2-45)] |
| keywords | HELIX-LOOP-HELIX, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.80 Å |
| rg_electron | 18.08 Å |
| i0 | 7289680.00 |
| molecular_weight | 19635.0 kDa |
| excluded_volume | 24458 ų |
| envelope_volume | 23834 ų |
| shell_volume | 10875 ų |
| envelope_diameter | 79.7 Å |
| shell_rg | 24.40 Å |
| envelope_rg | 21.83 Å |
| shape_rg | 18.01 Å |
| total_rg | 19.15 Å |
| total_atoms | 2860 |
| n_residues | 176 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.1 Å |
| rg_real | 19.16 Å |
| rg_real_error | 1.07 Å |
| i0_real | 7.2900e+06 |
| i0_real_error | 1.1730e+05 |
| rg_reciprocal | 19.11 Å |
| i0_reciprocal | 7289000.0000 |
| total_estimate | 0.7334 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.9 Å |
| skewness | 0.630 |
| kurtosis | 0.076 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 77650.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.462; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.145; Smooth: 0.999 |
