EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS AT 1.85 A RESOLUTION

Method: X-RAY DIFFRACTION D_max: 63.5 Å Quality: EXCELLENT

SAXS Profile

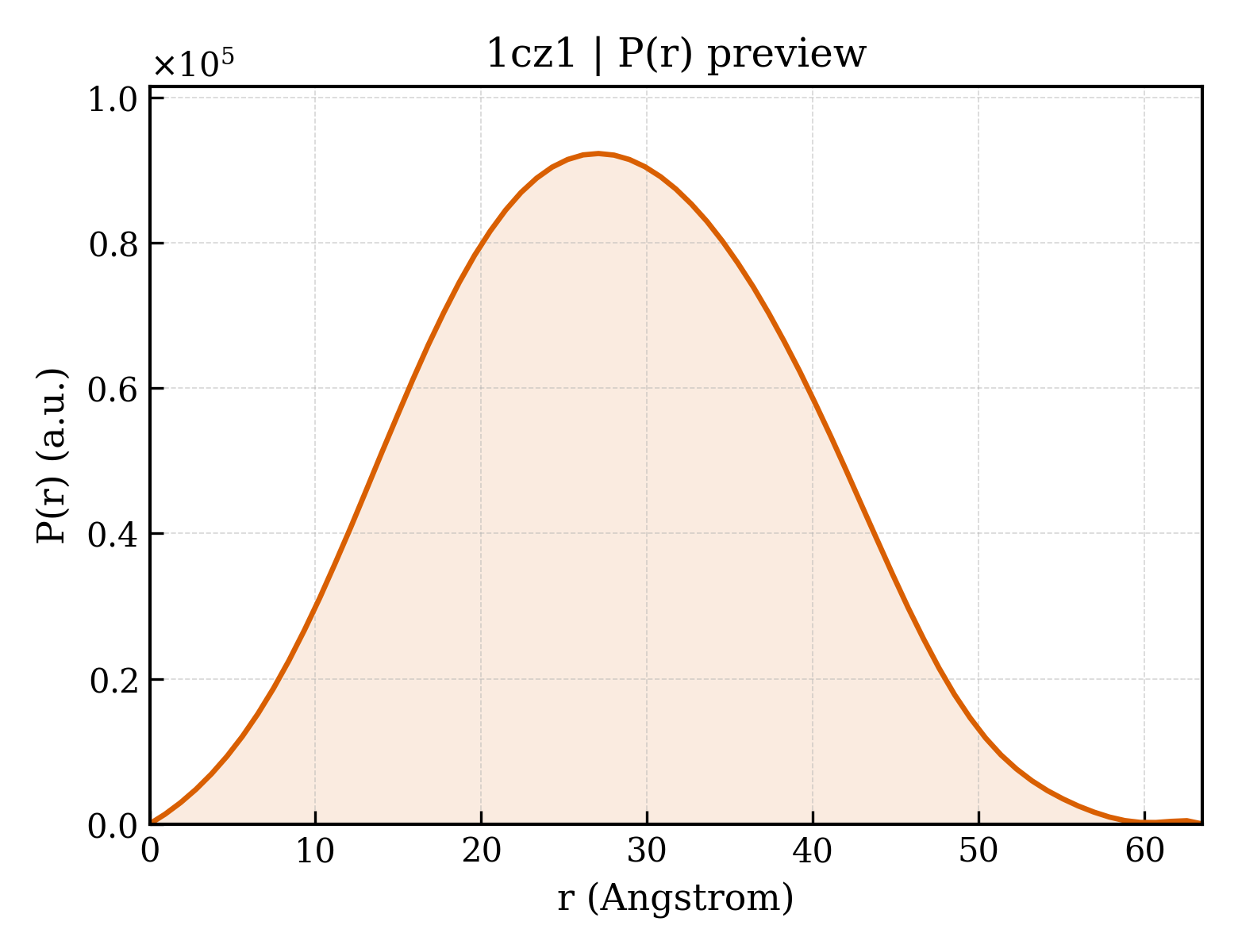

P(r) Distribution

▼

1. Structure Basics

entry_id	1cz1
deposition_date	1999-09-01
title	EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS AT 1.85 A RESOLUTION
keywords	EXOGLUCANASE, CANDIDA ALBICANS, GLYCOSIDE HYDROLASE FAMILY 5, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.33 Å
rg_electron	19.97 Å
i0	34328800.00
molecular_weight	45215.0 kDa
excluded_volume	56270 Å³
envelope_volume	62424 Å³
shell_volume	25020 Å³
envelope_diameter	66.1 Å
shell_rg	27.50 Å
envelope_rg	20.21 Å
shape_rg	19.93 Å
total_rg	20.95 Å
total_atoms	3214
n_residues	394
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	63.5 Å
rg_real	21.15 Å
rg_real_error	0.25 Å
i0_real	3.4330e+07
i0_real_error	4.0300e+05
rg_reciprocal	21.18 Å
i0_reciprocal	34330000.0000
total_estimate	0.9053
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	27.1 Å
skewness	0.072
kurtosis	-0.512
angular_range	— – 0.3750 Å⁻¹
current_alpha	0.0000
highest_alpha	8645000.0000
n_real_points	69
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	59.790 Å
length_b	64.540 Å
length_c	96.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.850 Å
resolution_low	15.000 Å
r_factor	—
r_work	0.1660
r_free	0.1960

description	PROTEIN (EXO-B-(1,3)-GLUCANASE)
formula_weight	45269.9 kDa
ec_number	3.2.1.58
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	3548

EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS AT 1.85 A RESOLUTION

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Candida albicans
ncbi_taxonomy_id	5476
host_organism	Saccharomyces cerevisiae

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	309

fit	/app/data/saxs_computation/cz/1cz1/1cz1.fit
pddf	/app/data/pr_computation/cz/1cz1/1cz1.pr.out
profile	/app/data/saxs_computation/cz/1cz1/1cz1.dat
