EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS

Method: X-RAY DIFFRACTION D_max: 63.6 Å Quality: EXCELLENT

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1eqp
deposition_date	2000-04-05
title	EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS
keywords	CANDIDA ALBICANS, EXOGLUCANASE, ALTERNATIVE CODON USAGE, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	21.47 Å
rg_electron	20.09 Å
i0	34448500.00
molecular_weight	45189.0 kDa
excluded_volume	56199 Å³
envelope_volume	63271 Å³
shell_volume	25231 Å³
envelope_diameter	65.7 Å
shell_rg	27.58 Å
envelope_rg	20.30 Å
shape_rg	20.06 Å
total_rg	21.08 Å
total_atoms	3212
n_residues	394
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

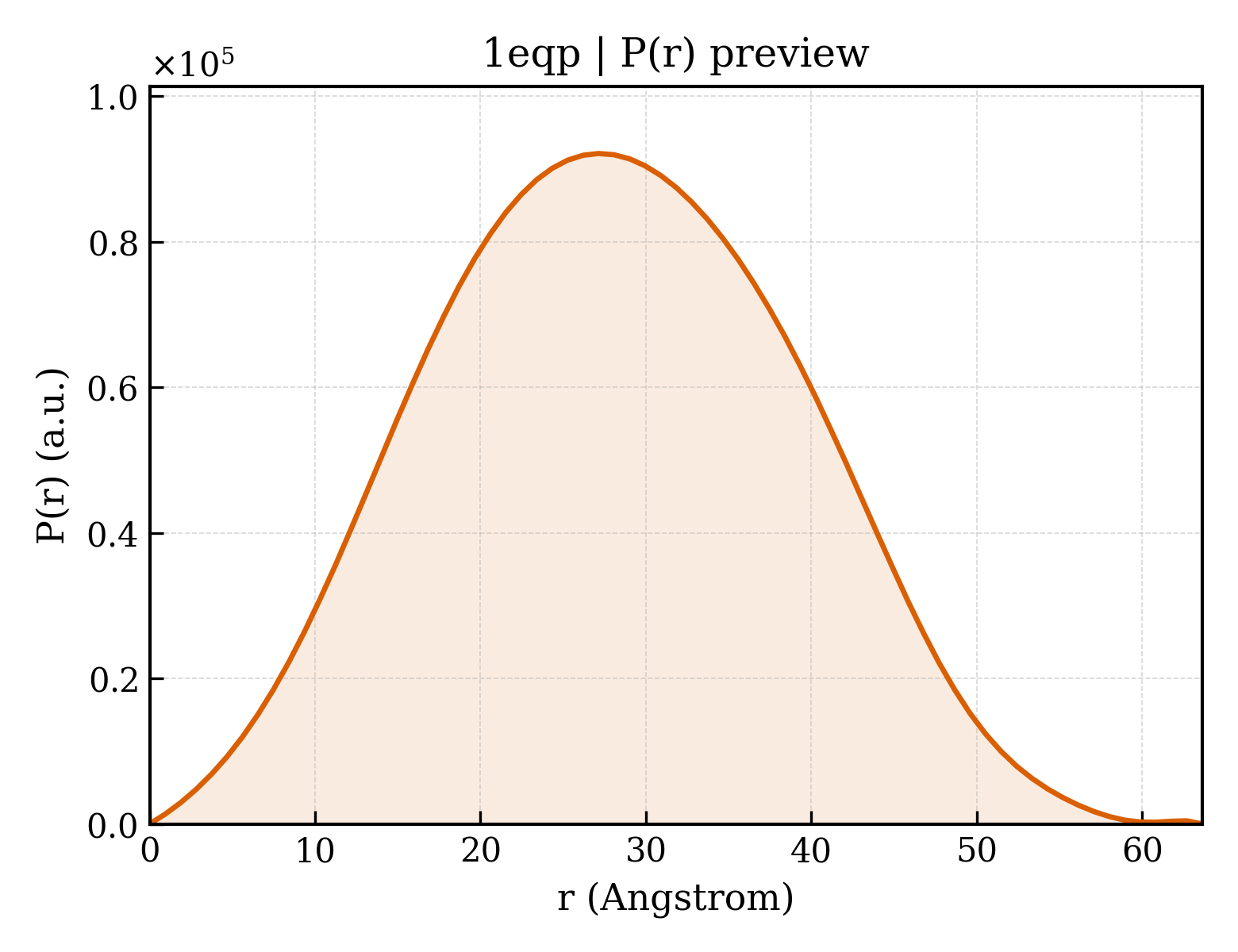

3. P(r) Analysis (GNOM)

dmax	63.6 Å
rg_real	21.29 Å
rg_real_error	0.24 Å
i0_real	3.4450e+07
i0_real_error	4.0240e+05
rg_reciprocal	21.32 Å
i0_reciprocal	34450000.0000
total_estimate	0.9068
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	27.1 Å
skewness	0.069
kurtosis	-0.516
angular_range	— – 0.3700 Å⁻¹
current_alpha	0.0000
highest_alpha	8455000.0000
n_real_points	69
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.987

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (2)

▶

length_a	60.100 Å
length_b	65.300 Å
length_c	96.400 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.900 Å
resolution_low	20.000 Å
r_factor	0.1540
r_work	0.1560
r_free	0.1950

description	EXO-B-(1,3)-GLUCANASE
formula_weight	45243.8 kDa
ec_number	3.2.1.58
src_method	nat
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	3507

EXO-B-(1,3)-GLUCANASE FROM CANDIDA ALBICANS

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Entity 2 water

6. Citations (2)

7. Files & Curves (10)

Files (7)

Curves (3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	282

fit	/app/data/saxs_computation/eq/1eqp/1eqp.fit
pddf	/app/data/pr_computation/eq/1eqp/1eqp.pr.out
profile	/app/data/saxs_computation/eq/1eqp/1eqp.dat
