1d1l
CRYSTAL STRUCTURE OF CRO-F58W MUTANT

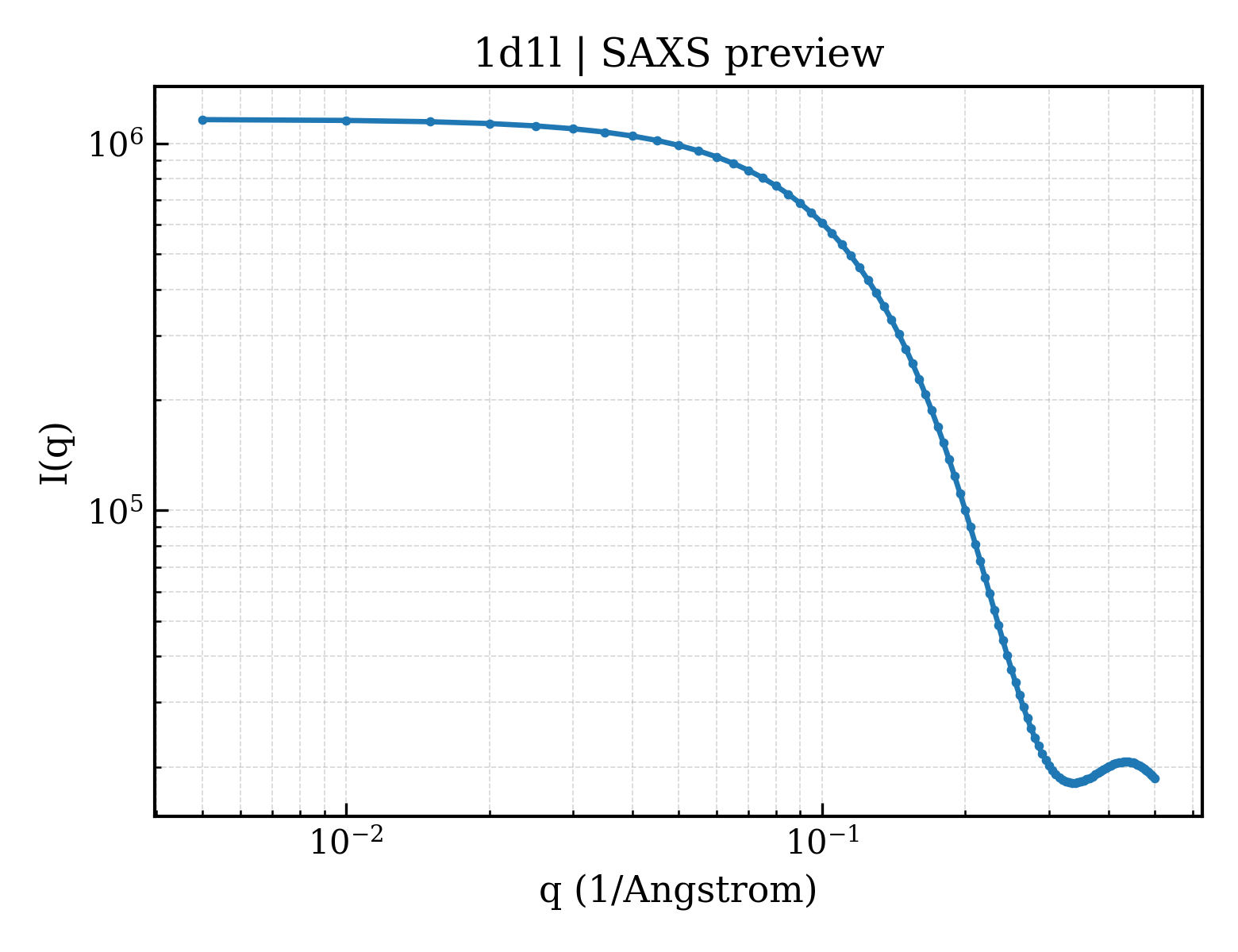

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d1l |
| deposition_date | 1999-09-17 |
| title | CRYSTAL STRUCTURE OF CRO-F58W MUTANT |
| keywords | HELIX-TURN-HELIX, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.97 Å |
| rg_electron | 12.60 Å |
| i0 | 1161610.00 |
| molecular_weight | 6972.0 kDa |
| excluded_volume | 8705 ų |
| envelope_volume | 10652 ų |
| shell_volume | 7913 ų |
| envelope_diameter | 47.4 Å |
| shell_rg | 17.08 Å |
| envelope_rg | 13.18 Å |
| shape_rg | 12.57 Å |
| total_rg | 13.88 Å |
| total_atoms | 489 |
| n_residues | 61 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.0 Å |
| rg_real | 13.99 Å |
| rg_real_error | 0.35 Å |
| i0_real | 1.1620e+06 |
| i0_real_error | 1.3610e+04 |
| rg_reciprocal | 13.98 Å |
| i0_reciprocal | 1162000.0000 |
| total_estimate | 0.7736 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.1 Å |
| skewness | 0.363 |
| kurtosis | -0.075 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 149400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.698; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.000 |
