1d1m
CRYSTAL STRUCTURE OF CRO K56-[DGEVK]-F58W MUTANT

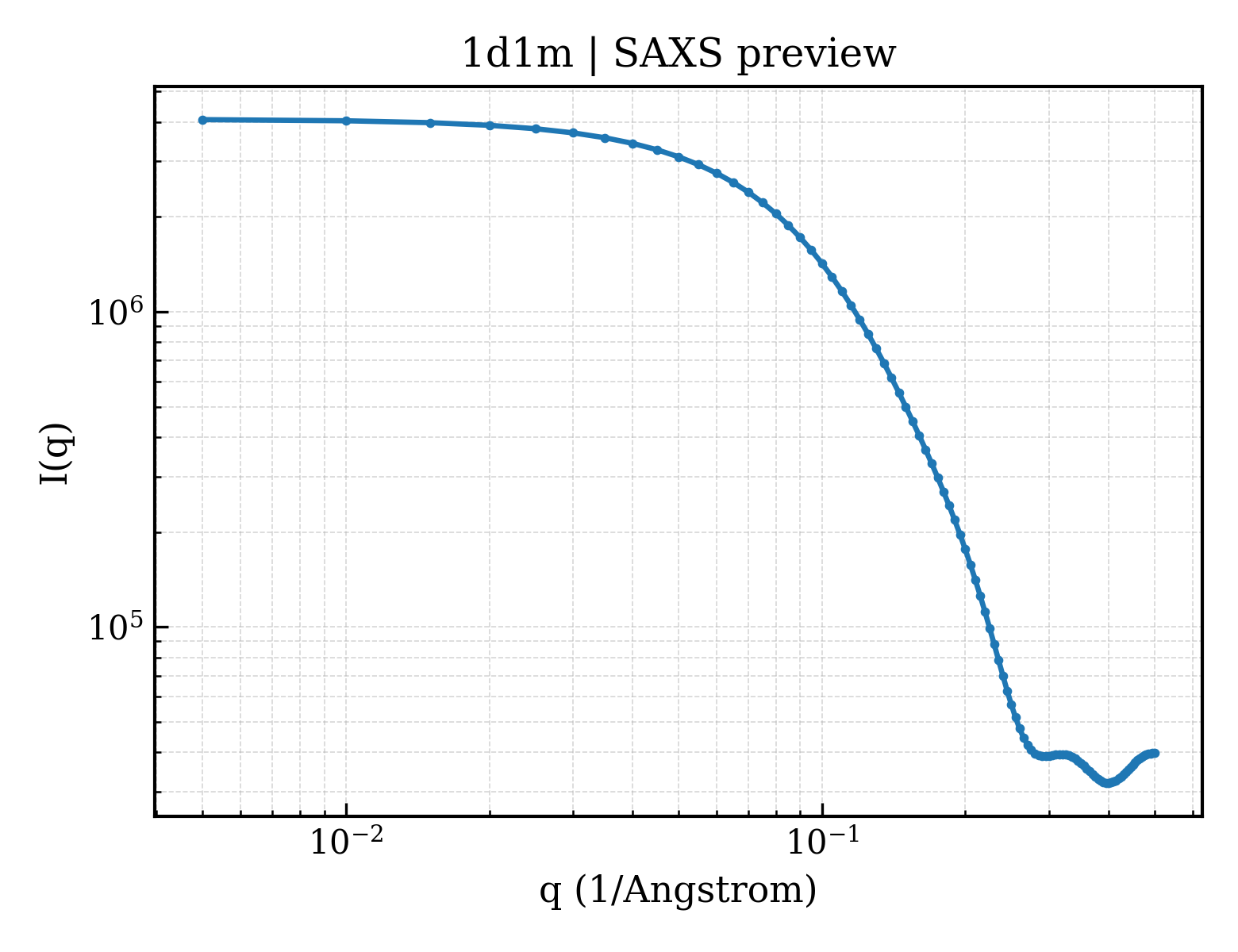

SAXS Profile

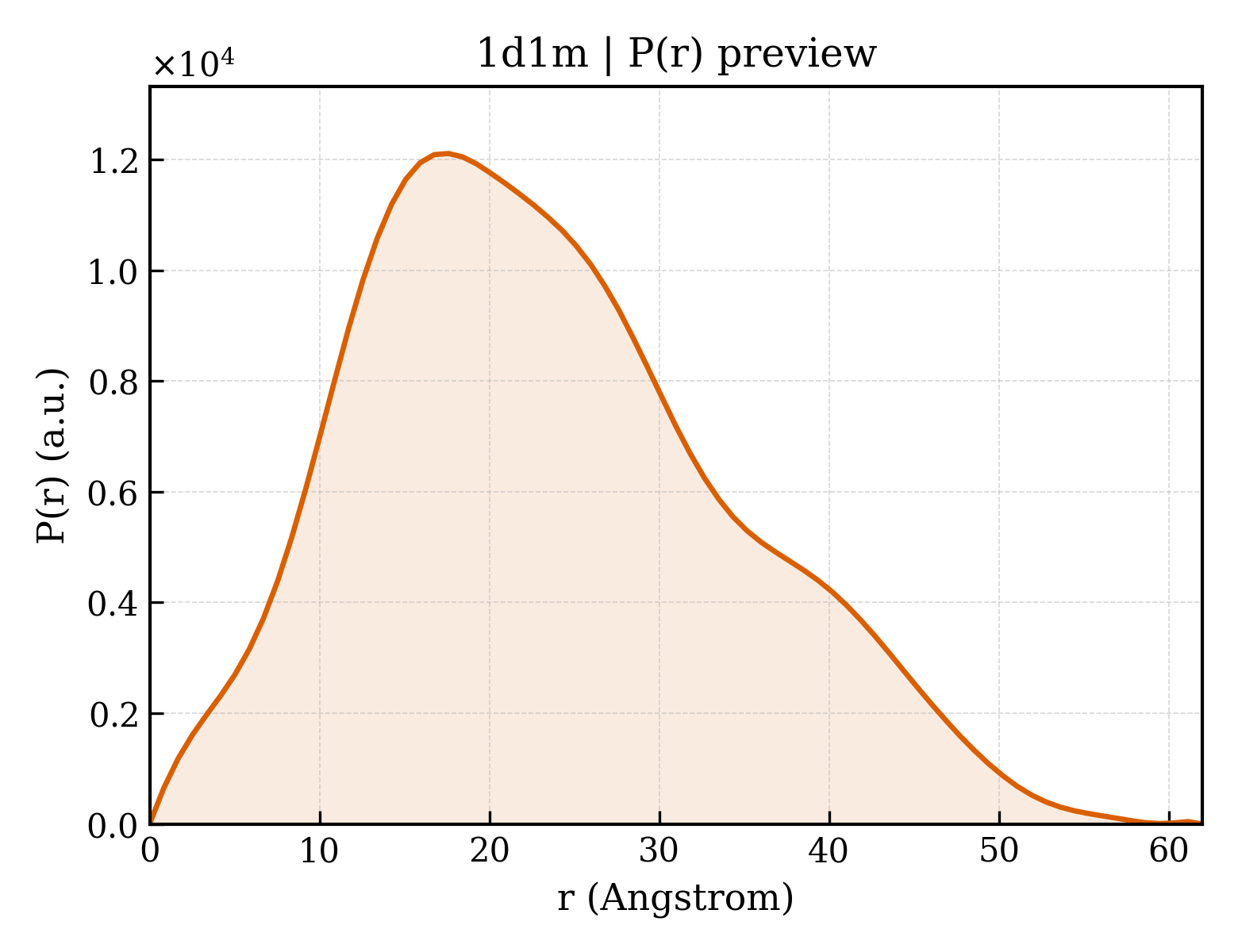

P(r) Distribution
1. Structure Basics
| entry_id | 1d1m |
| deposition_date | 1999-09-17 |
| title | CRYSTAL STRUCTURE OF CRO K56-[DGEVK]-F58W MUTANT |
| keywords | HELIX-TURN-HELIX, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.13 Å |
| rg_electron | 17.31 Å |
| i0 | 4081240.00 |
| molecular_weight | 14545.0 kDa |
| excluded_volume | 18306 ų |
| envelope_volume | 22816 ų |
| shell_volume | 12009 ų |
| envelope_diameter | 61.2 Å |
| shell_rg | 21.51 Å |
| envelope_rg | 17.58 Å |
| shape_rg | 17.30 Å |
| total_rg | 18.15 Å |
| total_atoms | 1024 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.0 Å |
| rg_real | 18.22 Å |
| rg_real_error | 0.53 Å |
| i0_real | 4.0810e+06 |
| i0_real_error | 5.8630e+04 |
| rg_reciprocal | 18.21 Å |
| i0_reciprocal | 4081000.0000 |
| total_estimate | 0.8490 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.6 Å |
| skewness | 0.432 |
| kurtosis | -0.346 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 753000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.909; Smooth: 0.944 |
