THREE-DIMENSIONAL STRUCTURE OF A COMPLEX BETWEEN THE DEATH DOMAINS OF PELLE AND TUBE

entry_id	1d2z
deposition_date	1999-09-28
title	THREE-DIMENSIONAL STRUCTURE OF A COMPLEX BETWEEN THE DEATH DOMAINS OF PELLE AND TUBE
keywords	SIX-HELIX BUNDLE, LINEAR ARRAY OF DEATH DOMAINS, PLASTIC INTERFACES, APOPTOSIS; APOPTOSIS
method	X-RAY DIFFRACTION

rg_guinier	32.01 Å
rg_electron	32.18 Å
i0	53806300.00
molecular_weight	58201.0 kDa
excluded_volume	73131 ų
envelope_volume	96648 ų
shell_volume	27612 ų
envelope_diameter	115.1 Å
shell_rg	35.45 Å
envelope_rg	32.09 Å
shape_rg	32.17 Å
total_rg	32.53 Å
total_atoms	4090
n_residues	513
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	108.8 Å
rg_real	32.44 Å
rg_real_error	0.98 Å
i0_real	5.3810e+07
i0_real_error	8.3670e+05
rg_reciprocal	32.26 Å
i0_reciprocal	53800000.0000
total_estimate	0.6189
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	26.6 Å
skewness	0.541
kurtosis	-0.462
angular_range	— – 0.2450 Å−1
current_alpha	0.0000
highest_alpha	13820000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.607; Smooth: 0.676

Unit Cell

length_a	58.123 Å
length_b	87.495 Å
length_c	117.662 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

Refinement

resolution	2.000 Å
resolution_low	25.000 Å
r_factor	0.2200
r_work	0.2110
r_free	0.2440

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/d2/1d2z/pr_distribution.json
• pr_output /app/data/pr_computation/d2/1d2z/1d2z.pr.out

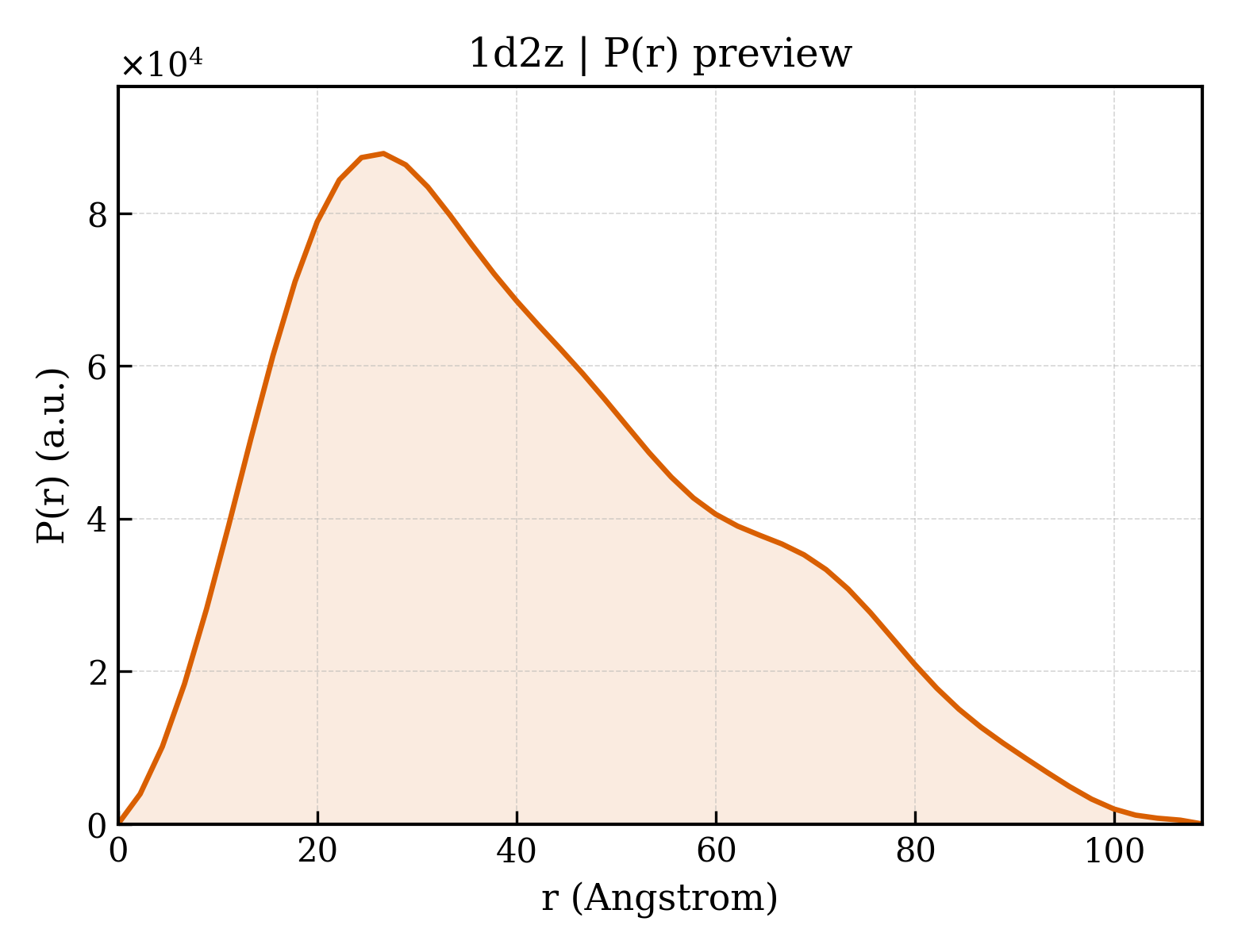

• pr_plot /app/data/visualization/pr_computation/d2/1d2z/1d2z_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/d2/1d2z/1d2z.dat
• saxs_fit /app/data/saxs_computation/d2/1d2z/1d2z.fit
• saxs_log /app/data/saxs_computation/d2/1d2z/1d2z.log
• saxs_plot /app/data/visualization/saxs_computation/d2/1d2z/1d2z_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/d2/1d2z/1d2z.fit
pddf	/app/data/pr_computation/d2/1d2z/1d2z.pr.out
profile	/app/data/saxs_computation/d2/1d2z/1d2z.dat
