1d3s
1.4 A crystal structure of nitrophorin 4 from Rhodnius prolixis at pH=5.6.

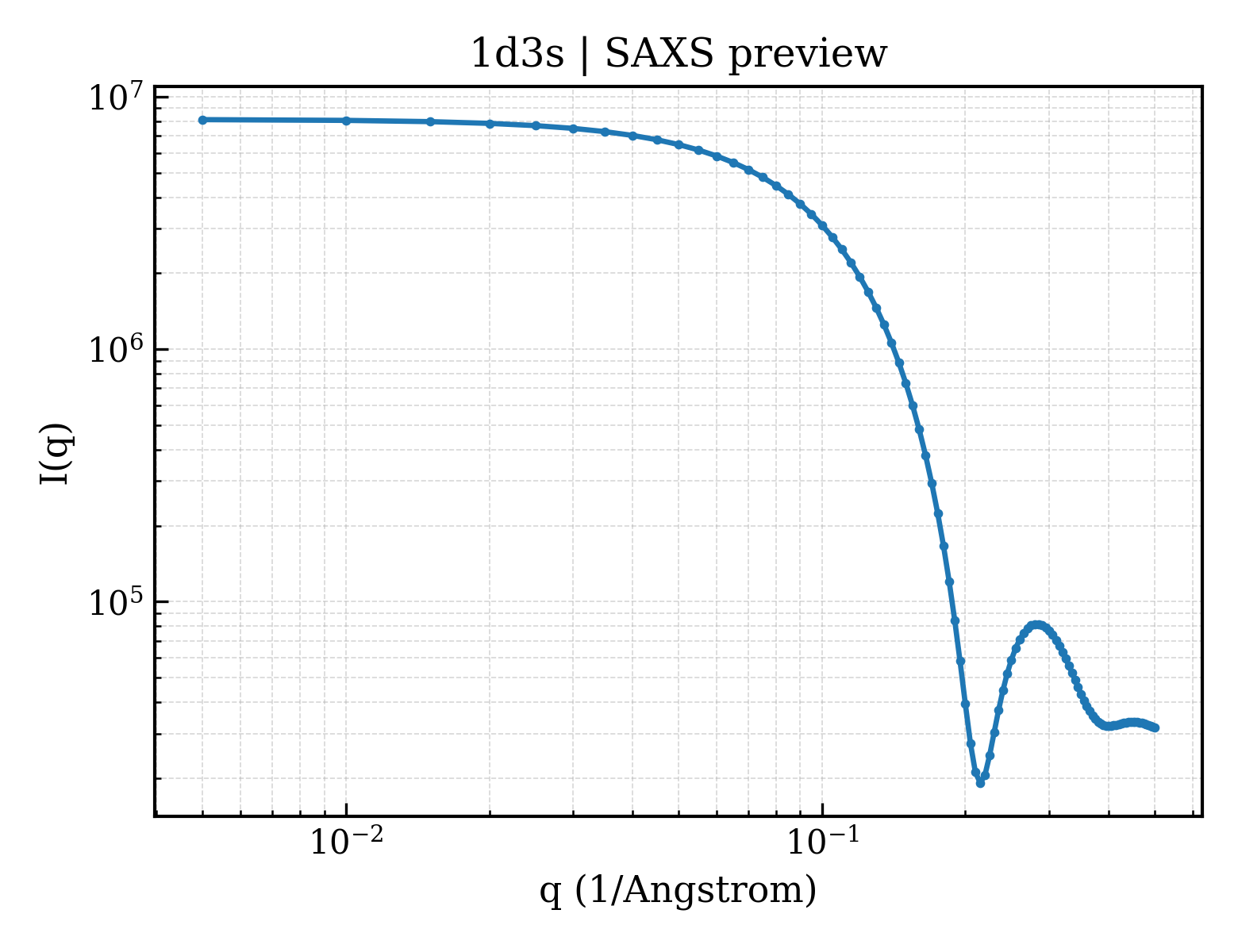

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d3s |
| deposition_date | 1999-09-30 |
| title | 1.4 A crystal structure of nitrophorin 4 from Rhodnius prolixis at pH=5.6. |
| keywords | NITRIC OXIDE TRANSPORT, FERRIC HEME, ANTIHISTAMINE, VASODILATOR, LIPOCALIN, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.66 Å |
| rg_electron | 15.19 Å |
| i0 | 8132610.00 |
| molecular_weight | 20882.0 kDa |
| excluded_volume | 26123 ų |
| envelope_volume | 29354 ų |
| shell_volume | 15769 ų |
| envelope_diameter | 48.2 Å |
| shell_rg | 21.61 Å |
| envelope_rg | 15.51 Å |
| shape_rg | 15.14 Å |
| total_rg | 16.49 Å |
| total_atoms | 1471 |
| n_residues | 184 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.0 Å |
| rg_real | 16.49 Å |
| rg_real_error | 0.20 Å |
| i0_real | 8.1330e+06 |
| i0_real_error | 8.7600e+04 |
| rg_reciprocal | 16.51 Å |
| i0_reciprocal | 8133000.0000 |
| total_estimate | 0.8975 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.013 |
| kurtosis | -0.458 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3296000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.900; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.997 |
