1d8a

E. COLI ENOYL REDUCTASE/NAD+/TRICLOSAN COMPLEX

Method: X-RAY DIFFRACTION D_max: 78.5 Å Quality: GOOD

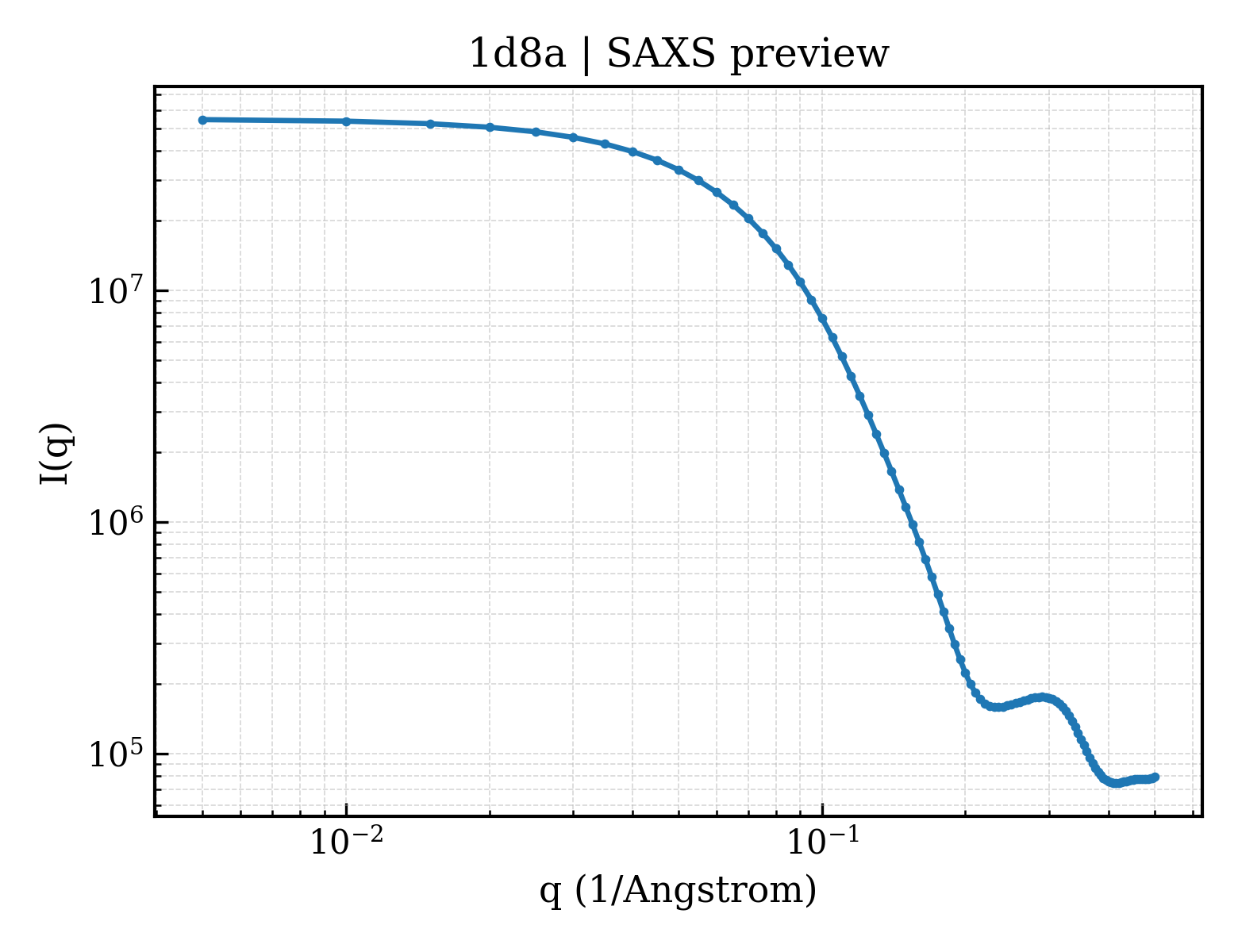

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1d8a
deposition_date	1999-10-21
title	E. COLI ENOYL REDUCTASE/NAD+/TRICLOSAN COMPLEX
keywords	E. COLI ENOYL REDUCTASE, TRICLOSAN, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.57 Å
rg_electron	23.72 Å
i0	54895200.00
molecular_weight	56127.0 kDa
excluded_volume	69619 Å³
envelope_volume	80216 Å³
shell_volume	27966 Å³
envelope_diameter	78.3 Å
shell_rg	31.09 Å
envelope_rg	23.89 Å
shape_rg	23.73 Å
total_rg	24.50 Å
total_atoms	3926
n_residues	514
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	78.5 Å
rg_real	24.54 Å
rg_real_error	0.45 Å
i0_real	5.4900e+07
i0_real_error	6.6140e+05
rg_reciprocal	24.55 Å
i0_reciprocal	54900000.0000
total_estimate	0.8913
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	27.4 Å
skewness	0.342
kurtosis	-0.353
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	13860000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.908

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	ENOYL-[ACYL-CARRIER-PROTEIN] REDUCTASE
formula_weight	27761.7 kDa
ec_number	1.3.1.9
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4045

GFLSGKRILVTGVASKLSIAYGIAQAMHREGAELAFTYQNDKLKGRVEEFAAQLGSDIVLQCDVAEDASIDTMFAELGKVWPKFDGFVHSIGFAPGDQLDGDYVNAVTREGFKIAHDISSYSFVAMAKACRSMLNPGSALLTLSYLGAERAIPNYNVMGLAKASLEANVRYMANAMGPEGVRVNAISAGPIRTLAASGIKDFRKMLAHCEAVTPIRRTVTIEDVGNSAAFLCSDLSAGISGEVVHVDGGFSIAAMNELELK

Entity 2 non-polymer

description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
formula_weight	663.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	TRICLOSAN
formula_weight	289.5 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	119

▶

6. Citations (2)

▶

length_a	80.600 Å
length_b	80.600 Å
length_c	327.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

resolution	2.200 Å
resolution_low	20.000 Å
r_factor	—
r_work	—
r_free	0.2940

fit	/app/data/saxs_computation/d8/1d8a/1d8a.fit
pddf	/app/data/pr_computation/d8/1d8a/1d8a.pr.out
profile	/app/data/saxs_computation/d8/1d8a/1d8a.dat
