1dfd
OXIDISED DESULFOVIBRIO AFRICANUS FERREDOXIN I, NMR, 19 STRUCTURES
SAXS Profile

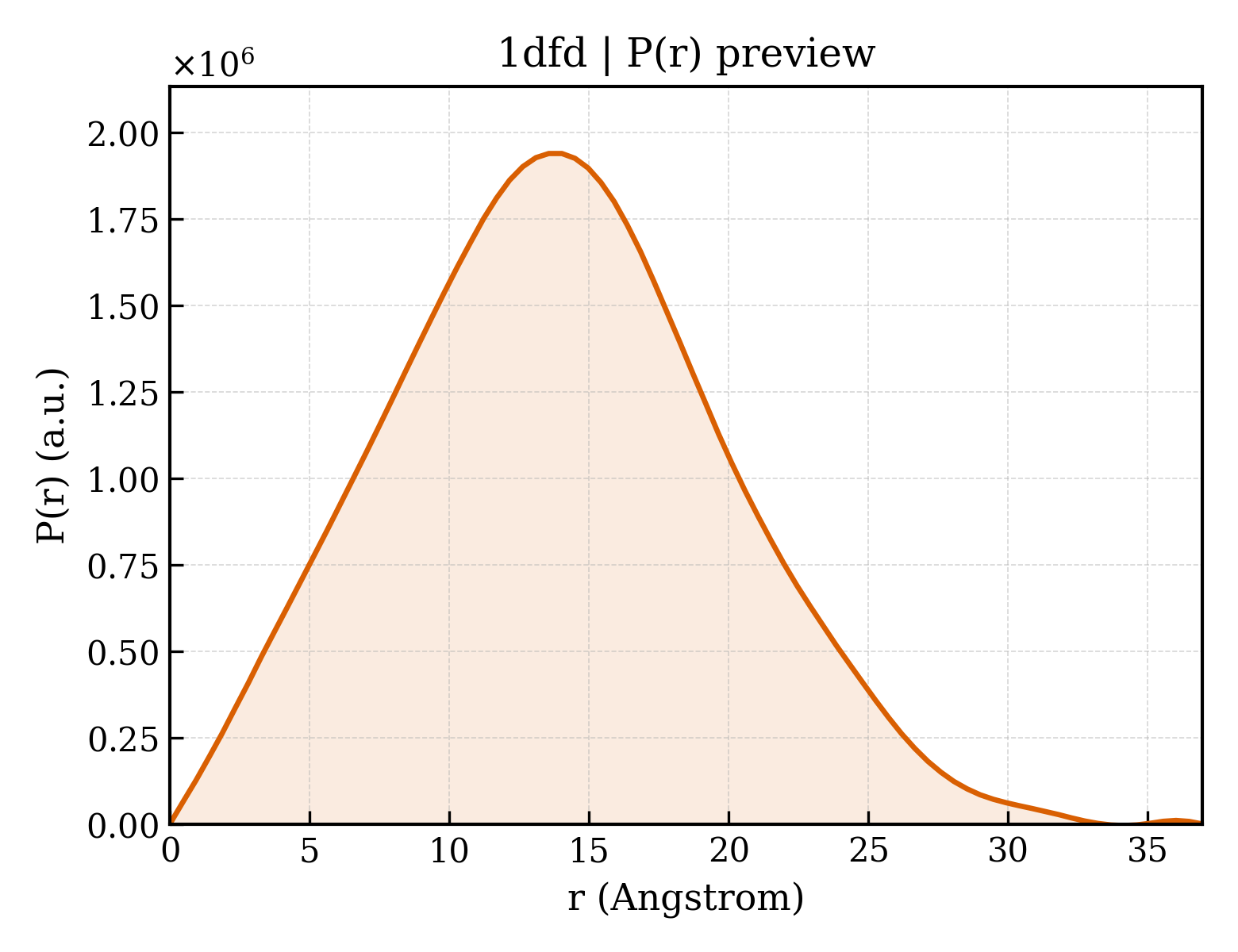

P(r) Distribution
1. Structure Basics
| entry_id | 1dfd |
| deposition_date | 1997-12-01 |
| title | OXIDISED DESULFOVIBRIO AFRICANUS FERREDOXIN I, NMR, 19 STRUCTURES |
| keywords | ELECTRON TRANSPORT, OXIDISED DESULFOVIBRIO AFRICANUS FERREDOXIN I, ELECTRON-TRANSFER PROTEIN, 4FE-4S CLUSTER; ELECTRON TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.72 Å |
| rg_electron | 10.75 Å |
| i0 | 362750000.00 |
| molecular_weight | 142620.0 kDa |
| excluded_volume | 169480 ų |
| envelope_volume | 15256 ų |
| shell_volume | 10417 ų |
| envelope_diameter | 40.9 Å |
| shell_rg | 18.29 Å |
| envelope_rg | 12.97 Å |
| shape_rg | 10.84 Å |
| total_rg | 10.65 Å |
| total_atoms | 18069 |
| n_residues | 1216 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.0 Å |
| rg_real | 10.69 Å |
| rg_real_error | 0.36 Å |
| i0_real | 3.6280e+08 |
| i0_real_error | 3.5910e+06 |
| rg_reciprocal | 10.69 Å |
| i0_reciprocal | 362800000.0000 |
| total_estimate | 0.8681 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 36.0 Å |
| skewness | 0.201 |
| kurtosis | -0.279 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 50670.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.778; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.963 |
