1dg7

DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND 4-BROMO WR99210

Method: X-RAY DIFFRACTION D_max: 54.2 Å Quality: GOOD

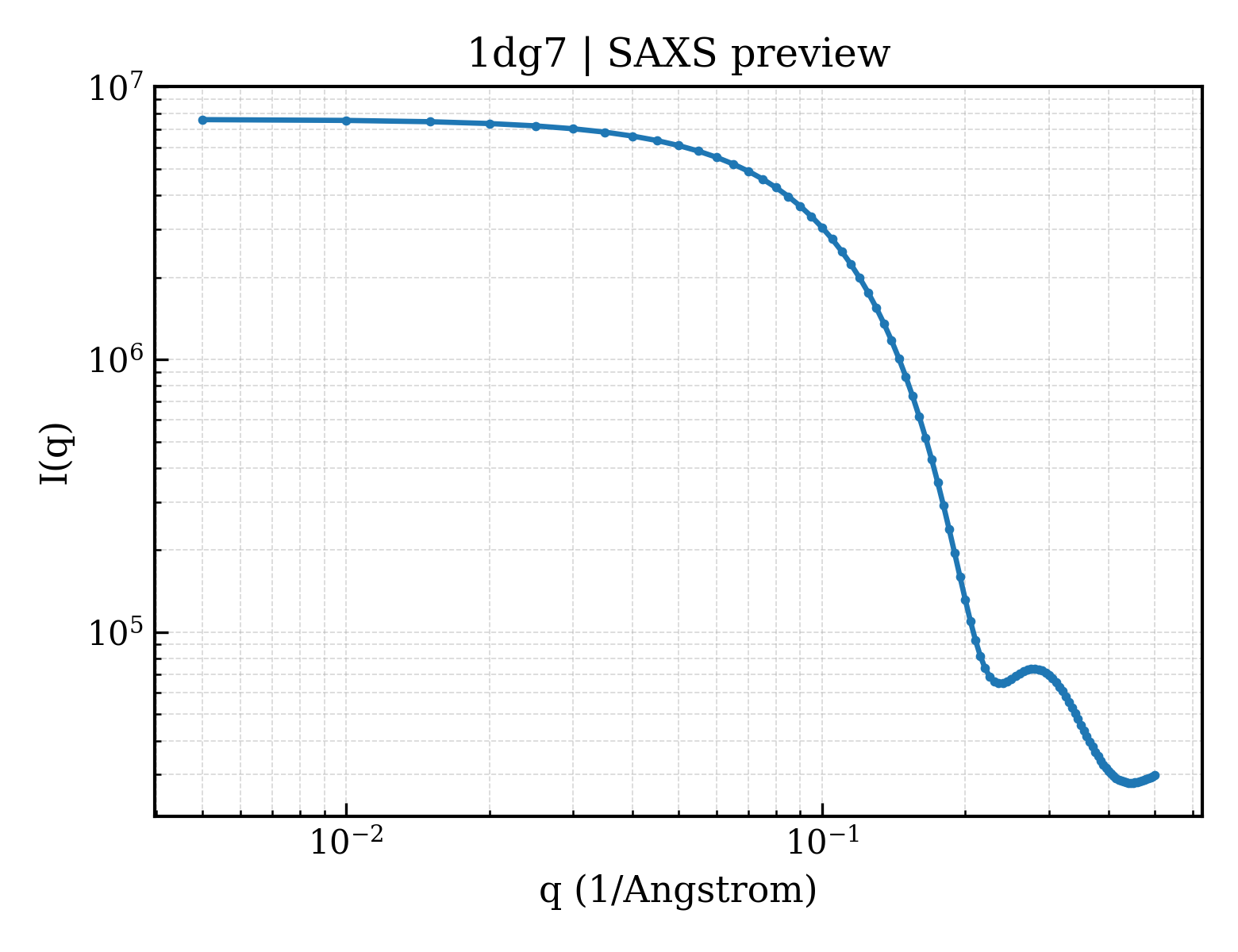

SAXS Profile

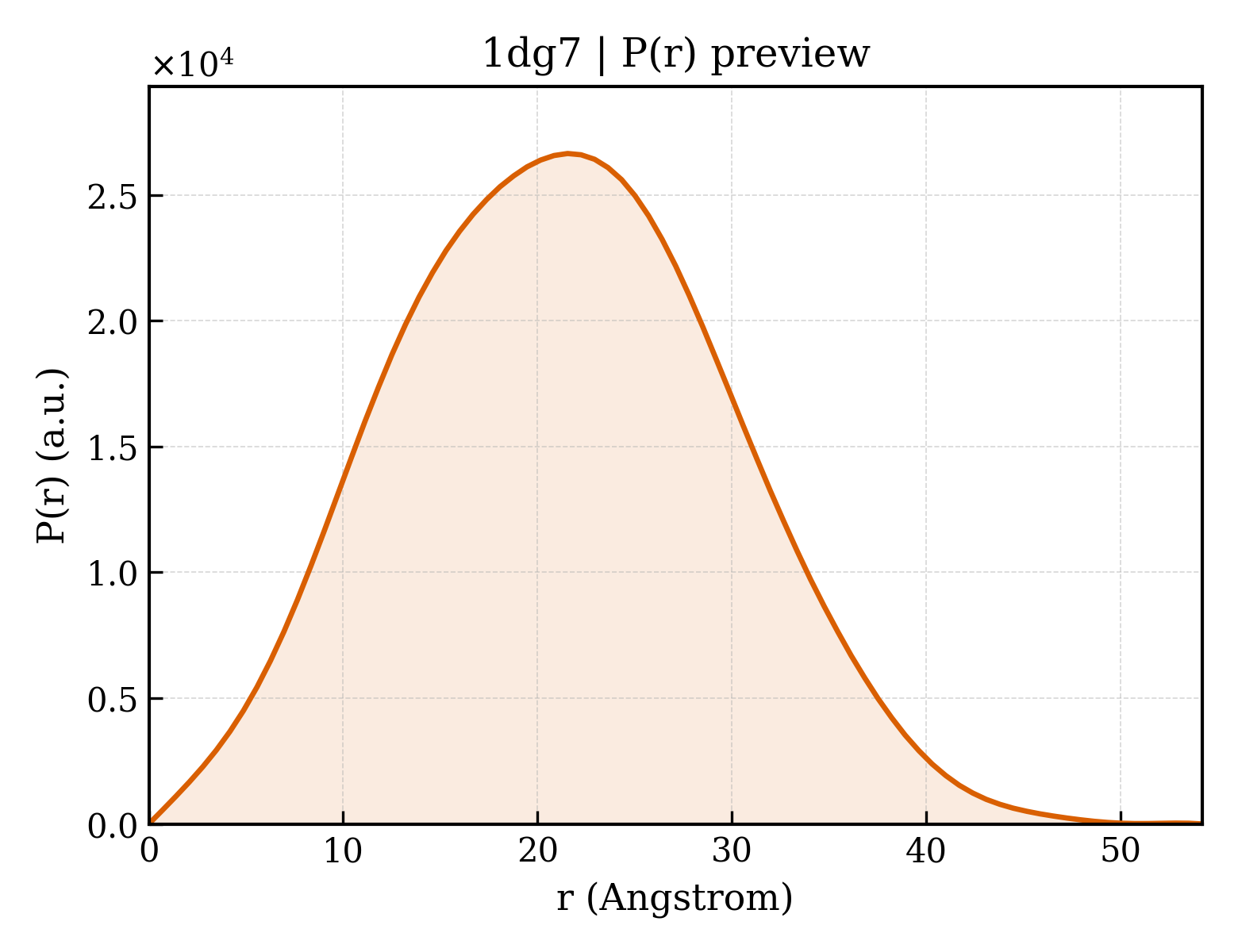

P(r) Distribution

▼

1. Structure Basics

entry_id	1dg7
deposition_date	1999-11-23
title	DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND 4-BROMO WR99210
keywords	;DIHYDROFOLATE REDUCTASE, STRUCTURE-BASED INHIBITOR DESIGN, FOLATEANALOGS, ROSSMANN FOLD, NICOTINAMIDE ADENINE DINUCLEOTIDE, WR99210, ANTI-MALARIA AGENT, TUBERCULOSIS, OXIDOREDUCTASE ;; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.32 Å
rg_electron	15.11 Å
i0	7594120.00
molecular_weight	19123.0 kDa
excluded_volume	23488 Å³
envelope_volume	25837 Å³
shell_volume	14351 Å³
envelope_diameter	53.0 Å
shell_rg	21.11 Å
envelope_rg	15.40 Å
shape_rg	15.10 Å
total_rg	16.15 Å
total_atoms	1338
n_residues	159
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	54.2 Å
rg_real	16.20 Å
rg_real_error	0.24 Å
i0_real	7.5940e+06
i0_real_error	8.6590e+04
rg_reciprocal	16.22 Å
i0_reciprocal	7594000.0000
total_estimate	0.8759
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.6 Å
skewness	0.138
kurtosis	-0.376
angular_range	— – 0.4900 Å⁻¹
current_alpha	0.0000
highest_alpha	2010000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	DIHYDROFOLATE REDUCTASE
formula_weight	17661.0 kDa
ec_number	1.5.1.3
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1528

MVGLIWAQATSGVIGRGGDIPWRLPEDQAHFREITMGHTIVMGRRTWDSLPAKVRPLPGRRNVVLSRQADFMASGAEVVGSLEEALTSPETWVIGGGQVYALALPYATRCEVTEVDIGLPREAGDALAPVLDETWRGETGEWRFSRSGLRYRLYSYHRS

Entity 2 non-polymer

description	1-[3-(4-BROMO-PHENOXY)-PROPOXY]-6,6-DIMETHYL-1.6-DIHYDRO-[1,3,5]TRIAZINE-2,4-DIAMINE
formula_weight	370.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
formula_weight	745.4 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	4

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	175

▶

6. Citations (2)

▶

length_a	60.630 Å
length_b	60.630 Å
length_c	59.130 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 41
int_tables_number	76
crystal_system	—

resolution	1.800 Å
resolution_low	50.000 Å
r_factor	0.1980
r_work	0.1980
r_free	0.2460

fit	/app/data/saxs_computation/dg/1dg7/1dg7.fit
pddf	/app/data/pr_computation/dg/1dg7/1dg7.pr.out
profile	/app/data/saxs_computation/dg/1dg7/1dg7.dat
