1. Protein Identity and Related Structures Protein Identity & Related Structures

Dihydrofolate reductase

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–159	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；Mes, PEGMME 2000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.39 Å R-free 0.202

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4KL9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DF7 DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND METHOTREXATE Deposited 1999-11-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 MTX METHOTREXATE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.5；277 K；AMMONIUM SULFATE, SODIUM ACETATE, GLYCEROL, NADPH, METHOTREXATE, POTASSIUM PHOSPHATE, DTT, POTASSIUM CHLORIDE, pH 4.5, VAPOR DIFFUSION, temperature 277K	Resolution 1.70 Å R-free 0.246
1DG5 DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND TRIMETHOPRIM Deposited 1999-11-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TOP TRIMETHOPRIM × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；AMMONIUM SULFATE, SODIUM ACETATE, GLYCEROL, NADPH, TRIMETHOPRIM, POTASSIUM PHOSPHATE, DTT, POTASSIUM CHLORIDE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.243
1DG7 DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND 4-BROMO WR99210 Deposited 1999-11-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	WRB 1-[3-(4-BROMO-PHENOXY)-PROPOXY]-6,6-DIMETHYL-1.6-DIHYDRO-[1,3,5]TRIAZINE-2,4-DIAMINE × 1 NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；AMMONIUM SULFATE, SODIUM ACETATE, GLYCEROL, NADPH, BROMO-WR99210, POTASSIUM PHOSPHATE, DTT, POTASSIUM CHLORIDE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.246
1DG8 DIHYDROFOLATE REDUCTASE OF MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH Deposited 1999-11-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；277 K；AMMONIUM SULFATE, SODIUM ACETATE, GLYCEROL, NADPH, POTASSIUM PHOSPHATE, DTT, POTASSIUM CHLORIDE, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.244
2CIG Dihydrofolate reductase from Mycobacterium tuberculosis inhibited by the acyclic 4R isomer of INH-NADP a derivative of the prodrug isoniazid. Deposited 2006-03-20	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	1DG (4R)-ISONICOTINIC-ACETYL-NICOTINAMIDE-ADENINE DINUCLEOTIDE × 1 GOL GLYCEROL × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；1.6 M AMMONIUM SULFATE, 100 MM SODIUM ACETATE, PH 4.6, 10 % GLYCEROL	Resolution 1.90 Å R-free 0.212
4KLX Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in an open conformation. Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1 ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.23 Å R-free 0.244
4KLX Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in an open conformation. Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–159（159 aa）	Not recorded	ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.23 Å R-free 0.244
4KM0 Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in complex with pyrimethamine Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	CP6 5-(4-CHLORO-PHENYL)-6-ETHYL-PYRIMIDINE-2,4-DIAMINE × 1 ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.30 Å R-free 0.210
4KM0 Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in complex with pyrimethamine Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–159（159 aa）	Not recorded	CP6 5-(4-CHLORO-PHENYL)-6-ETHYL-PYRIMIDINE-2,4-DIAMINE × 1 ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.30 Å R-free 0.210
4KM2 Crystal structure of Dihydrofolate reductase from Mycobacterium tuberculosis in an open conformation in complex with trimethoprim Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1 TOP TRIMETHOPRIM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.05M KCl, 0.01M MgCl2, 15% PEG 6000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.40 Å R-free 0.201
4KM2 Crystal structure of Dihydrofolate reductase from Mycobacterium tuberculosis in an open conformation in complex with trimethoprim Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–159（159 aa）	Not recorded	ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1 TOP TRIMETHOPRIM × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.05M KCl, 0.01M MgCl2, 15% PEG 6000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.40 Å R-free 0.201
4KNE Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in complex with cycloguanil Deposited 2013-05-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	1CY 1-(4-chlorophenyl)-6,6-dimethyl-1,6-dihydro-1,3,5-triazine-2,4-diamine × 1 ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, SITTING DROP	Resolution 2.00 Å R-free 0.270
4KNE Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in complex with cycloguanil Deposited 2013-05-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–159（159 aa）	Not recorded	1CY 1-(4-chlorophenyl)-6,6-dimethyl-1,6-dihydro-1,3,5-triazine-2,4-diamine × 1 ATR 2'-MONOPHOSPHOADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；8% PEG 4000, pH 7.0, VAPOR DIFFUSION, SITTING DROP	Resolution 2.00 Å R-free 0.270
4M2X Mycobacterium tuberculosis dihydrofolate reductase complexed with trimetrexate (TMQ) Deposited 2013-08-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TMQ TRIMETREXATE × 1 ACT ACETATE ION × 6 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；289 K；15% PEG 6000, 100 mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.26 Å R-free 0.261
4M2X Mycobacterium tuberculosis dihydrofolate reductase complexed with trimetrexate (TMQ) Deposited 2013-08-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TMQ TRIMETREXATE × 1 ACT ACETATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；289 K；15% PEG 6000, 100 mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.26 Å R-free 0.261
4M2X Mycobacterium tuberculosis dihydrofolate reductase complexed with trimetrexate (TMQ) Deposited 2013-08-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TMQ TRIMETREXATE × 1 ACT ACETATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；289 K；15% PEG 6000, 100 mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.26 Å R-free 0.261
4M2X Mycobacterium tuberculosis dihydrofolate reductase complexed with trimetrexate (TMQ) Deposited 2013-08-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 1–159（159 aa）	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 TMQ TRIMETREXATE × 1 ACT ACETATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；289 K；15% PEG 6000, 100 mM sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.26 Å R-free 0.261

10 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DYR_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–179； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4kl9
Deposition date deposition_date	2013-05-07
Structure title title	Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in the space group C2
Keywords keywords	reductase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.48 Å
Radius of gyration Rg (electron density) rg_electron	15.25 Å
Forward intensity I(0) i0	7226070.00
Molecular weight molecular_weight	18781.0 kDa
Excluded volume excluded_volume	23164 Å³
Envelope volume envelope_volume	26175 Å³
Hydration-shell volume shell_volume	14432 Å³
Envelope diameter envelope_diameter	51.7 Å
Shell Rg shell_rg	21.14 Å
Envelope Rg envelope_rg	15.45 Å
Shape Rg shape_rg	15.24 Å
Total Rg total_rg	16.30 Å
Total atoms total_atoms	1319
Residues n_residues	160
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.2 Å
Rg (real space) rg_real	16.35 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	7.2260e+06
I(0) uncertainty (real space) i0_real_error	8.0470e+04
Rg (reciprocal space) rg_reciprocal	16.36 Å
I(0) (reciprocal space) i0_reciprocal	7226000.0000
Solution quality estimate total_estimate	0.8864
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.8 Å
Skewness Skewness skewness	0.091
Kurtosis Kurtosis kurtosis	-0.426
Angular range angular_range	— – 0.4850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1367000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.845; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Dihydrofolate reductase
Molecular weight formula_weight	19832.4 kDa
EC 编号 ec_number	1.5.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1503

MGSSHHHHHHSSGLVPRGSHMVGLIWAQATSGVIGRGGDIPWRLPEDQAHFREITMGHTIVMGRRTWDSLPAKVRPLPGRRNVVLSRQADFMASGAEVVGSLEEALTSPETWVIGGGQVYALALPYATRCEVTEVDIGLPREAGDALAPVLDETWRGETGEWRFSRSGLRYRLYSYHRS

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI Class编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
Molecular weight formula_weight	326.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4kl9a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.71 — Dihydrofolate reductase-like
Superfamily Superfamily superfamily	c.71.1 — Dihydrofolate reductase-like
Family Family family	c.71.1.0 — automated matches

Domain ID domain_id	d4kl9a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4kl9A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	430 — Dihydrofolate Reductase, subunit A
Homologous superfamily homologous superfamily	10 — Dihydrofolate Reductase, subunit A

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.580 Å
Unit-cell length b length_b	73.590 Å
Unit-cell length c length_c	36.830 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.77 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.390 Å
Low-resolution limit resolution_low	23.030 Å
R factor r_factor	0.1570
R_work r_work	0.1546
R_free r_free	0.2018

fit	/app/data/saxs_computation/kl/4kl9/4kl9.fit
pddf	/app/data/pr_computation/kl/4kl9/4kl9.pr.out
profile	/app/data/saxs_computation/kl/4kl9/4kl9.dat

Crystal structure of dihydrofolate reductase from Mycobacterium tuberculosis in the space group C2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dihydrofolate reductase

State in the Current Structure

Other States of the Same Protein in the Database

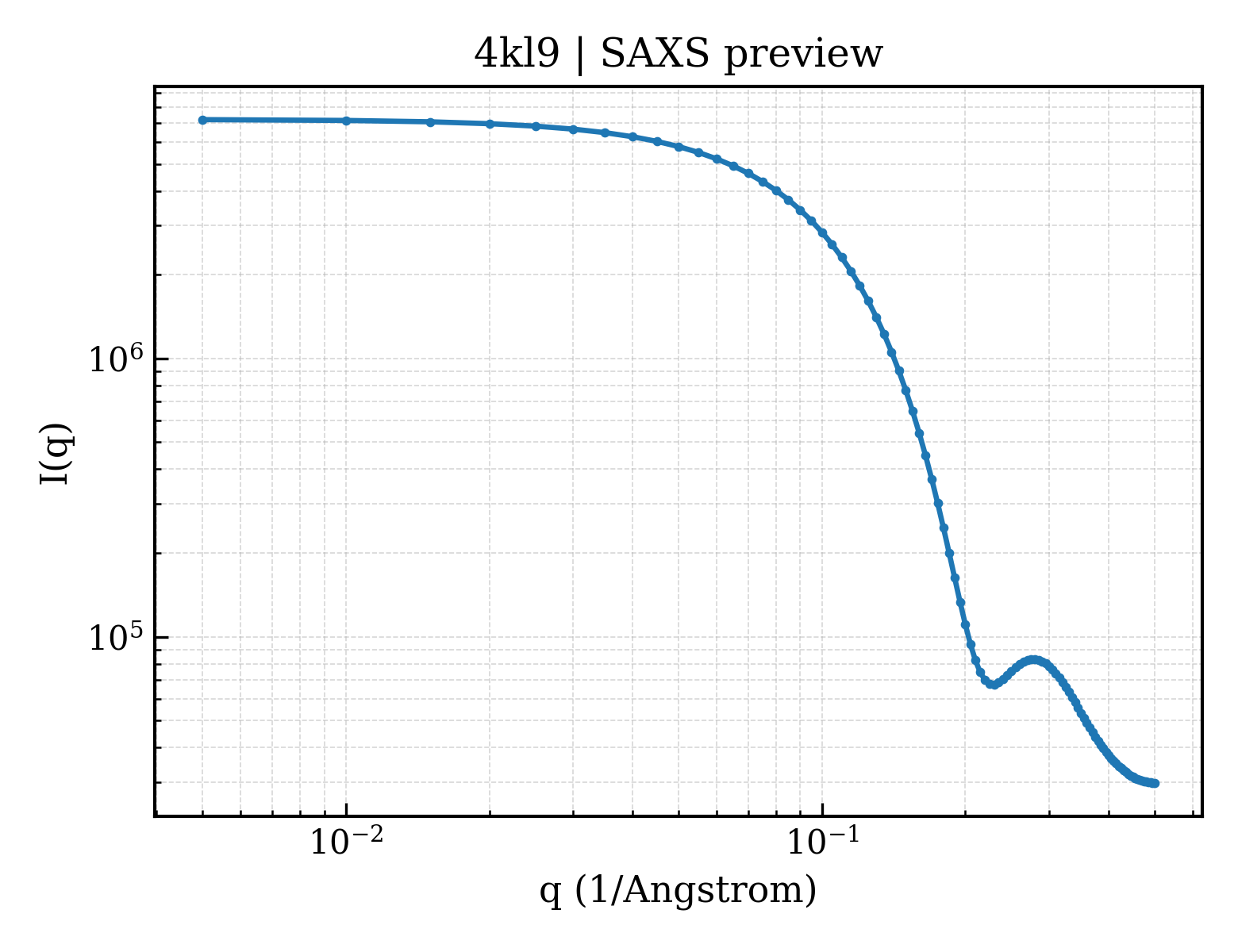

SAXS scattering curve SAXS Profile
