1dgc
THE X-RAY STRUCTURE OF THE GCN4-BZIP BOUND TO ATF/CREB SITE DNA SHOWS THE COMPLEX DEPENDS ON DNA FLEXIBILITY

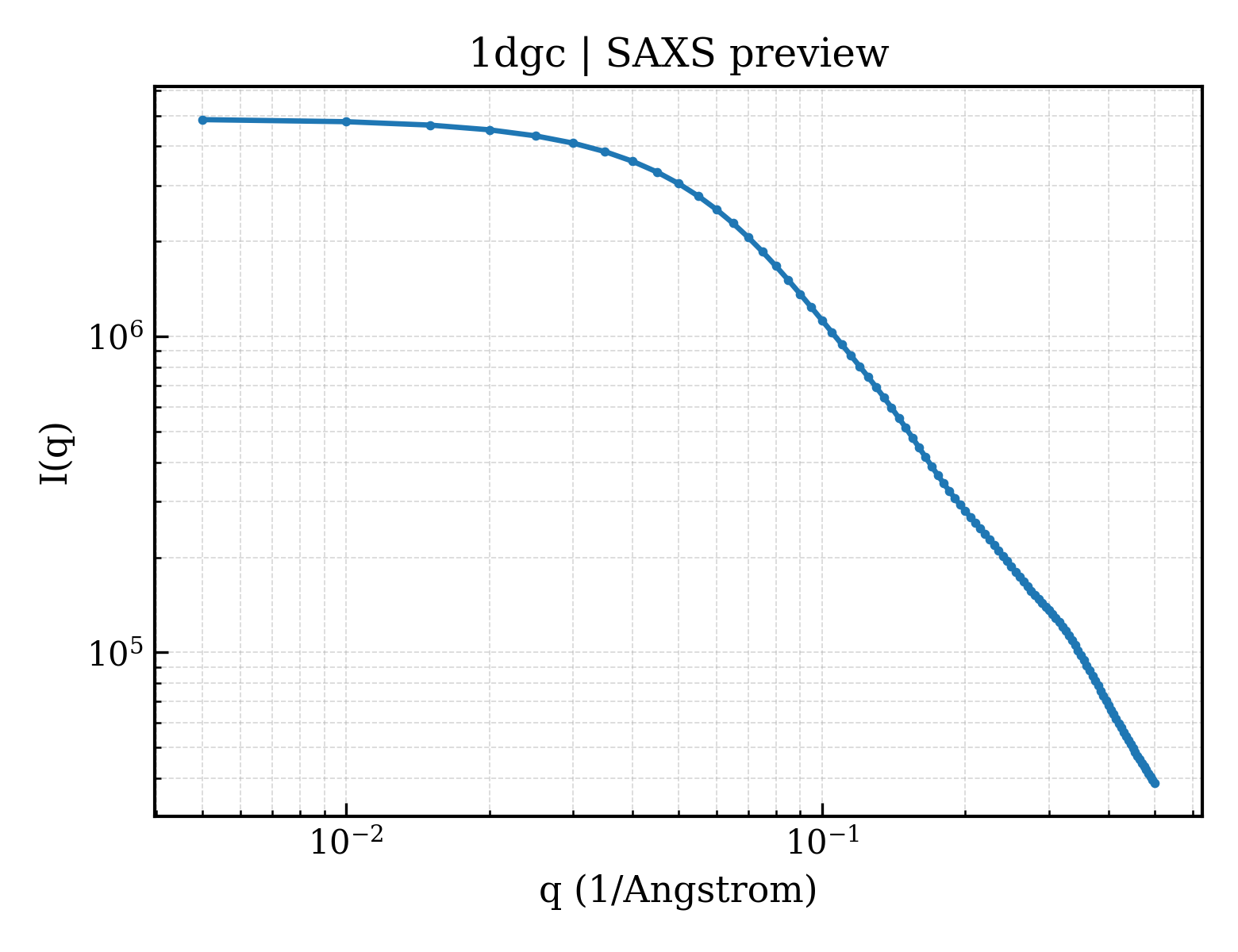

SAXS Profile

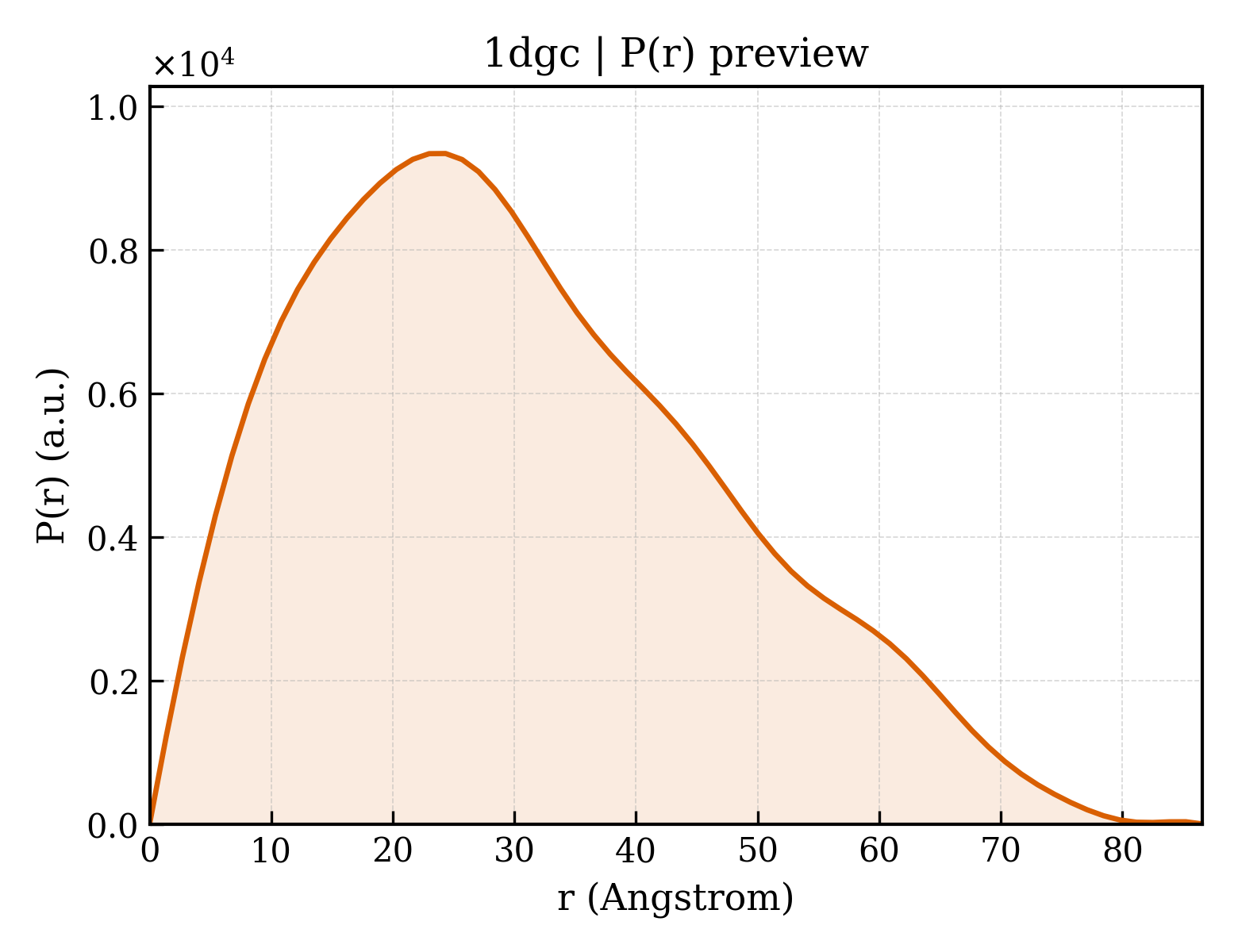

P(r) Distribution
1. Structure Basics
| entry_id | 1dgc |
| deposition_date | 1993-07-15 |
| title | THE X-RAY STRUCTURE OF THE GCN4-BZIP BOUND TO ATF/CREB SITE DNA SHOWS THE COMPLEX DEPENDS ON DNA FLEXIBILITY |
| keywords | PROTEIN-DNA COMPLEX, DOUBLE HELIX, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.04 Å |
| rg_electron | 25.03 Å |
| i0 | 4884280.00 |
| molecular_weight | 12329.0 kDa |
| excluded_volume | 13749 ų |
| envelope_volume | 23042 ų |
| shell_volume | 9670 ų |
| envelope_diameter | 87.0 Å |
| shell_rg | 26.23 Å |
| envelope_rg | 24.94 Å |
| shape_rg | 25.03 Å |
| total_rg | 25.18 Å |
| total_atoms | 842 |
| n_residues | 74 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 86.6 Å |
| rg_real | 24.43 Å |
| rg_real_error | 0.93 Å |
| i0_real | 4.8840e+06 |
| i0_real_error | 8.2170e+04 |
| rg_reciprocal | 24.34 Å |
| i0_reciprocal | 4884000.0000 |
| total_estimate | 0.8112 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.3 Å |
| skewness | 0.486 |
| kurtosis | -0.446 |
| angular_range | — – 0.3300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 127100.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.730; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.355; Smooth: 0.997 |
