SAXSdb — 1di0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

LUMAZINE SYNTHASE

Brucella abortus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–158 Chain B； UniProt 1–158 Chain C； UniProt 1–158 Chain D； UniProt 1–158 Chain E； UniProt 1–158	Not recorded	PO4 PHOSPHATE ION × 13	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；1.2 M ammonium sulfate, 0.1M phoshate buffer, pH 5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.70 Å R-free 0.230
2	Protein homooligomer Homooligomer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain A； UniProt 1–158 Chain B； UniProt 1–158 Chain C； UniProt 1–158 Chain D； UniProt 1–158 Chain E； UniProt 1–158	Not recorded	PO4 PHOSPHATE ION × 26	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；1.2 M ammonium sulfate, 0.1M phoshate buffer, pH 5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.70 Å R-free 0.230

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DI0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XN1 Crystal Structure Of Lumazine Synthase From Brucella Abortus (Orthorhombic Form At 3.05 Angstroms) Deposited 2004-10-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 1–158（158 aa） Chain B 1–158（158 aa） Chain C 1–158（158 aa） Chain D 1–158（158 aa） Chain E 1–158（158 aa） Chain F 1–158（158 aa） Chain G 1–158（158 aa） Chain H 1–158（158 aa） Chain I 1–158（158 aa） Chain J 1–158（158 aa）	Not recorded	PO4 PHOSPHATE ION × 24 NA SODIUM ION × 7 SO4 SULFATE ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；1.3M AMMONIUM SULFATE, 0.1M NA MES, PH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.05 Å R-free 0.256
8UAV Cryo-EM Structure of Brucella Abortus Lumazine Synthase (BLS) Engineered with Shiga Toxin I subunit B (Stx1B) Deposited 2023-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 8–158（151 aa） Chain B 8–158（151 aa） Chain C 8–158（151 aa） Chain D 8–158（151 aa） Chain E 8–158（151 aa） Chain F 8–158（151 aa） Chain G 8–158（151 aa） Chain H 8–158（151 aa） Chain I 8–158（151 aa） Chain J 8–158（151 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.37 Å
8UAW Cryo-EM Structure of Brucella Abortus Lumazine Synthase (BLS) Engineered with Shiga Toxin II subunit B (Stx2B) Deposited 2023-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 8–158（151 aa） Chain B 8–158（151 aa） Chain C 8–158（151 aa） Chain D 8–158（151 aa） Chain E 8–158（151 aa） Chain F 8–158（151 aa） Chain G 8–158（151 aa） Chain H 8–158（151 aa） Chain I 8–158（151 aa） Chain J 8–158（151 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.97 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RISB_BRUAB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–158； UniProt 1–158 Author chain B； PDBConstruct 1–158； UniProt 1–158 Author chain C； PDBConstruct 1–158； UniProt 1–158 Author chain D； PDBConstruct 1–158； UniProt 1–158 Author chain E； PDBConstruct 1–158； UniProt 1–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1di0
Deposition date deposition_date	1999-11-28
Structure title title	CRYSTAL STRUCTURE OF LUMAZINE SYNTHASE FROM BRUCELLA ABORTUS
Keywords keywords	transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.24 Å
Radius of gyration Rg (electron density) rg_electron	26.15 Å
Forward intensity I(0) i0	108063000.00
Molecular weight molecular_weight	81704.0 kDa
Excluded volume excluded_volume	102010 Å³
Envelope volume envelope_volume	120530 Å³
Hydration-shell volume shell_volume	36787 Å³
Envelope diameter envelope_diameter	80.1 Å
Shell Rg shell_rg	34.96 Å
Envelope Rg envelope_rg	26.07 Å
Shape Rg shape_rg	26.17 Å
Total Rg total_rg	26.96 Å
Total atoms total_atoms	5771
Residues n_residues	735
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

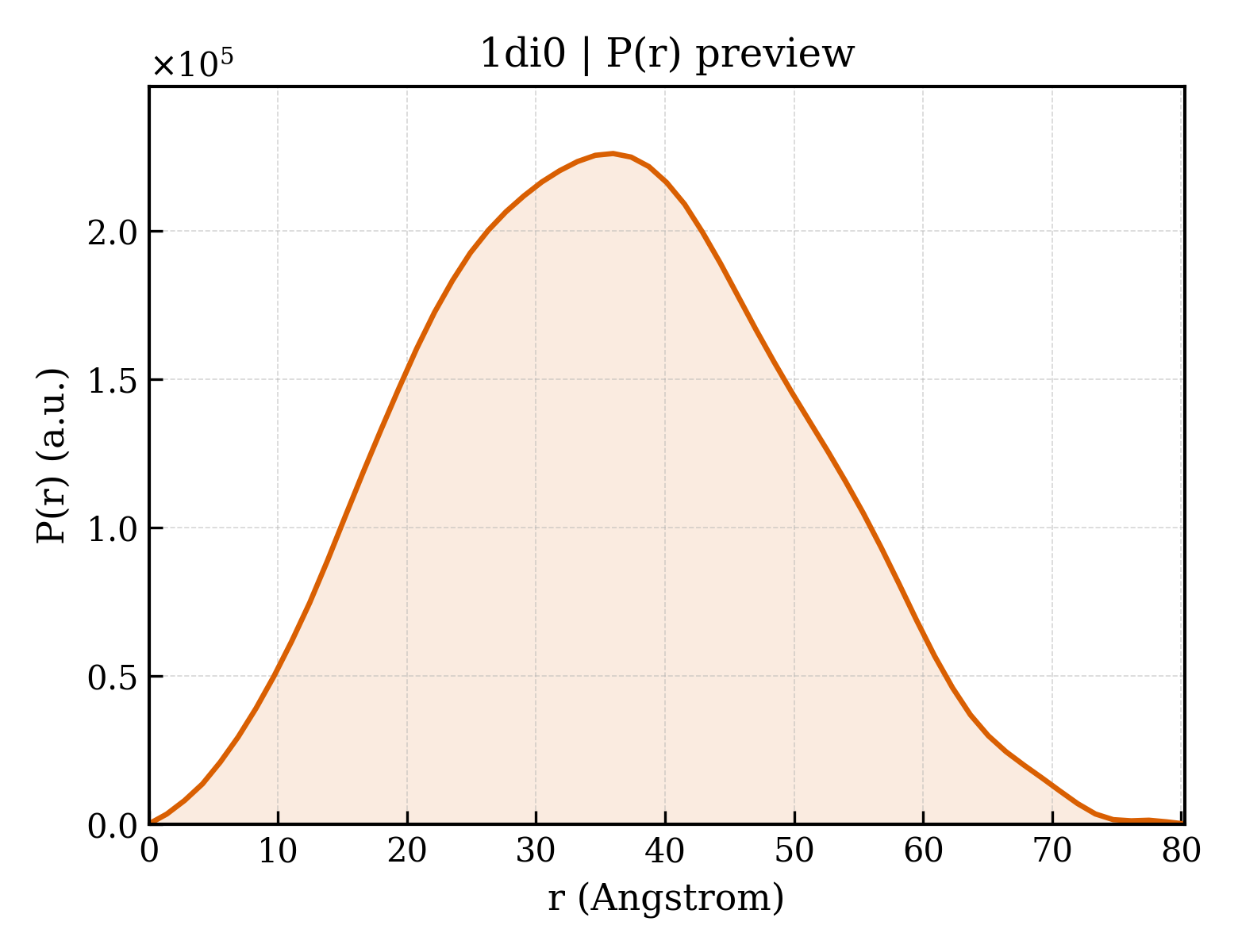

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.3 Å
Rg (real space) rg_real	27.05 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	1.0810e+08
I(0) uncertainty (real space) i0_real_error	1.4600e+06
Rg (reciprocal space) rg_reciprocal	27.11 Å
I(0) (reciprocal space) i0_reciprocal	108100000.0000
Solution quality estimate total_estimate	0.9078
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.0 Å
Skewness Skewness skewness	0.118
Kurtosis Kurtosis kurtosis	-0.526
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	28570000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.946

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LUMAZINE SYNTHASE
Molecular weight formula_weight	17339.8 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	5818

MNQSCPNKTSFKIAFIQARWHADIVDEARKSFVAELAAKTGGSVEVEIFDVPGAYEIPLHAKTLARTGRYAAIVGAAFVIDGGIYDHDFVATAVINGMMQVQLETEVPVLSVVLTPHHFHESKEHHDFFHAHFKVKGVEAAHAALQIVSERSRIAALV

来源 Source

来源生物 organism	Brucella abortus
NCBI Class编号 ncbi_taxonomy_id	235
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	13

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	47

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1di0a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1di0b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1di0c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1di0d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

Domain ID domain_id	d1di0e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.16 — Lumazine synthase
Superfamily Superfamily superfamily	c.16.1 — Lumazine synthase
Family Family family	c.16.1.1 — Lumazine synthase

CATH v4.4 (5 domains)

Domain ID domain_id	1di0A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1di0B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1di0C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1di0D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

Domain ID domain_id	1di0E00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	960 — Lumazine/riboflavin synthase

▶

8. Citations (2)

▶

Unit-cell length a length_a	142.250 Å
Unit-cell length b length_b	142.250 Å
Unit-cell length c length_c	242.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	90

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	150.000 Å
R factor r_factor	0.1800
R_work r_work	0.1800
R_free r_free	0.2300

fit	/app/data/saxs_computation/di/1di0/1di0.fit
pddf	/app/data/pr_computation/di/1di0/1di0.pr.out
profile	/app/data/saxs_computation/di/1di0/1di0.dat
