1dir
CRYSTAL STRUCTURE OF A MONOCLINIC FORM OF DIHYDROPTERIDINE REDUCTASE FROM RAT LIVER
SAXS Profile

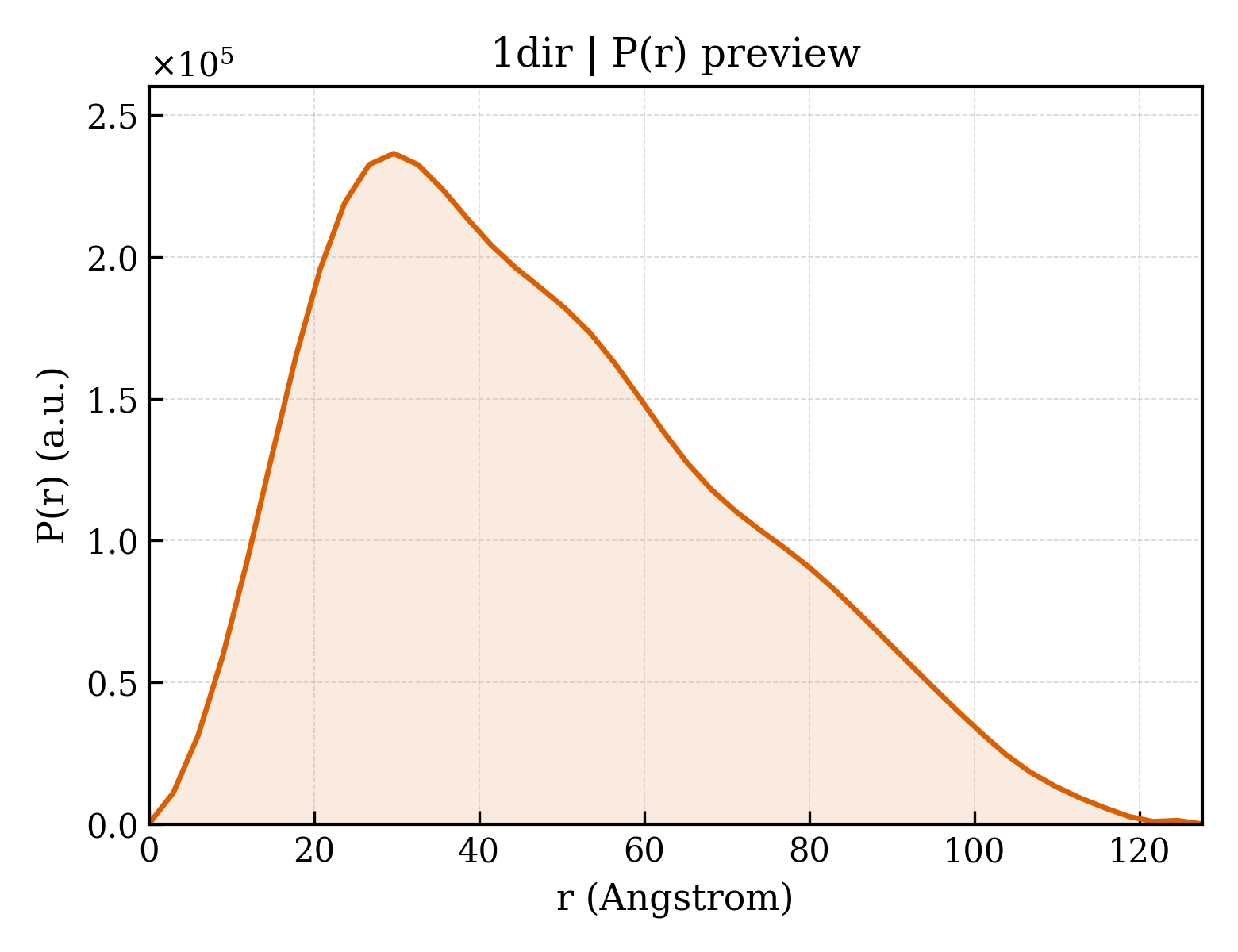

P(r) Distribution
1. Structure Basics
| entry_id | 1dir |
| deposition_date | 1994-04-18 |
| title | CRYSTAL STRUCTURE OF A MONOCLINIC FORM OF DIHYDROPTERIDINE REDUCTASE FROM RAT LIVER |
| keywords | OXIDOREDUCTASE(ACTING ON NADH OR NADPH); OXIDOREDUCTASE(ACTING ON NADH OR NADPH) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.01 Å |
| rg_electron | 37.08 Å |
| i0 | 169956000.00 |
| molecular_weight | 103060.0 kDa |
| excluded_volume | 128150 ų |
| envelope_volume | 162810 ų |
| shell_volume | 39171 ų |
| envelope_diameter | 134.0 Å |
| shell_rg | 39.98 Å |
| envelope_rg | 36.94 Å |
| shape_rg | 37.09 Å |
| total_rg | 37.23 Å |
| total_atoms | 8848 |
| n_residues | 944 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 127.6 Å |
| rg_real | 37.43 Å |
| rg_real_error | 1.37 Å |
| i0_real | 1.7000e+08 |
| i0_real_error | 3.1460e+06 |
| rg_reciprocal | 37.18 Å |
| i0_reciprocal | 169900000.0000 |
| total_estimate | 0.7854 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 29.7 Å |
| skewness | 0.534 |
| kurtosis | -0.425 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 163800000.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.669; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.533; Smooth: 0.665 |
