1dmc
;THE THREE-DIMENSIONAL SOLUTION STRUCTURE OF CALLINECTES SAPIDUS METALLOTHIONEIN-I DETERMINED BY HOMONUCLEAR AND HETERONUCLEAR MAGNETIC RESONANCE SPECTROSCOPY ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dmc |
| deposition_date | 1994-11-22 |
| title | ;THE THREE-DIMENSIONAL SOLUTION STRUCTURE OF CALLINECTES SAPIDUS METALLOTHIONEIN-I DETERMINED BY HOMONUCLEAR AND HETERONUCLEAR MAGNETIC RESONANCE SPECTROSCOPY ; |
| keywords | METALLOTHIONEIN; METALLOTHIONEIN |
| method | SOLUTION NMR |
Download Data

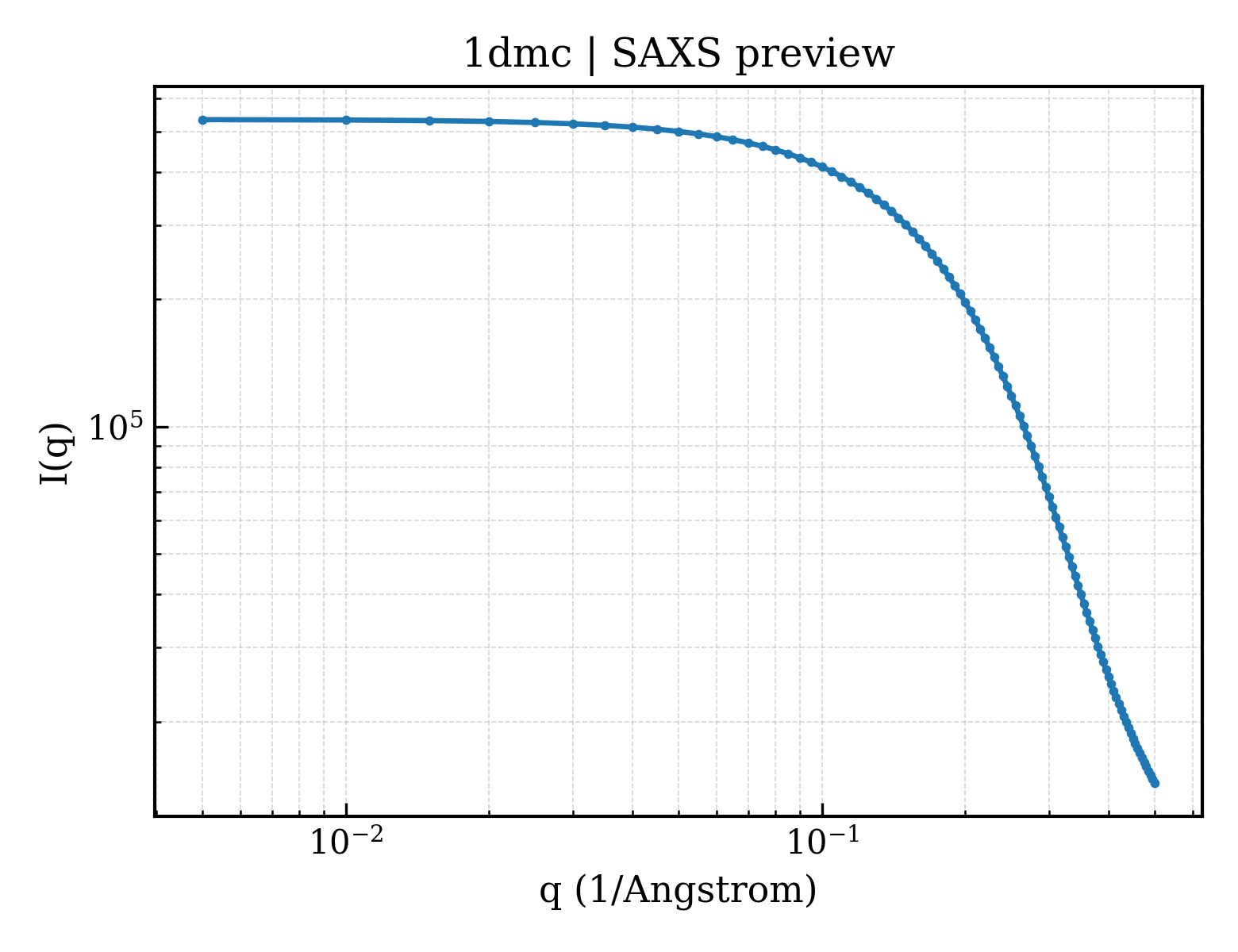

2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.79 Å |
| rg_electron | 8.17 Å |
| i0 | 533516.00 |
| molecular_weight | 3615.0 kDa |
| excluded_volume | 4022 ų |
| envelope_volume | 4636 ų |
| shell_volume | 5030 ų |
| envelope_diameter | 28.5 Å |
| shell_rg | 13.14 Å |
| envelope_rg | 9.02 Å |
| shape_rg | 8.48 Å |
| total_rg | 9.14 Å |
| total_atoms | 434 |
| n_residues | 31 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

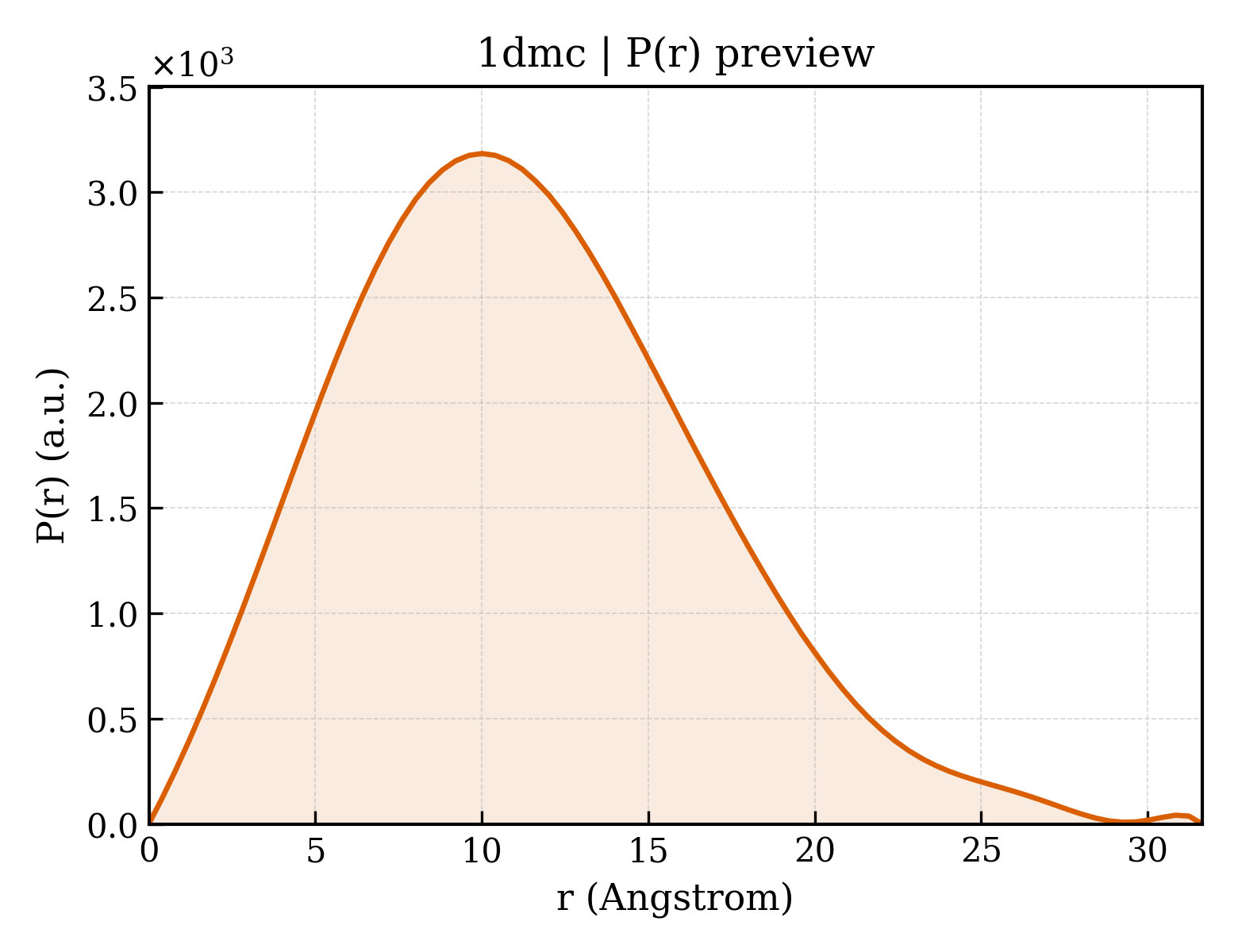

3. P(r) Analysis (GNOM)
| dmax | 31.6 Å |
| rg_real | 8.83 Å |
| rg_real_error | 0.40 Å |
| i0_real | 5.3350e+05 |
| i0_real_error | 6.2720e+03 |
| rg_reciprocal | 8.83 Å |
| i0_reciprocal | 533500.0000 |
| total_estimate | 0.8484 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.0 Å |
| skewness | 0.462 |
| kurtosis | -0.004 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10860.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.781; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.781; Smooth: 0.902 |
