1dmf
;THE THREE-DIMENSIONAL SOLUTION STRUCTURE OF CALLINECTES SAPIDUS METALLOTHIONEIN-I DETERMINED BY HOMONUCLEAR AND HETERONUCLEAR MAGNETIC RESONANCE SPECTOSCOPY ;

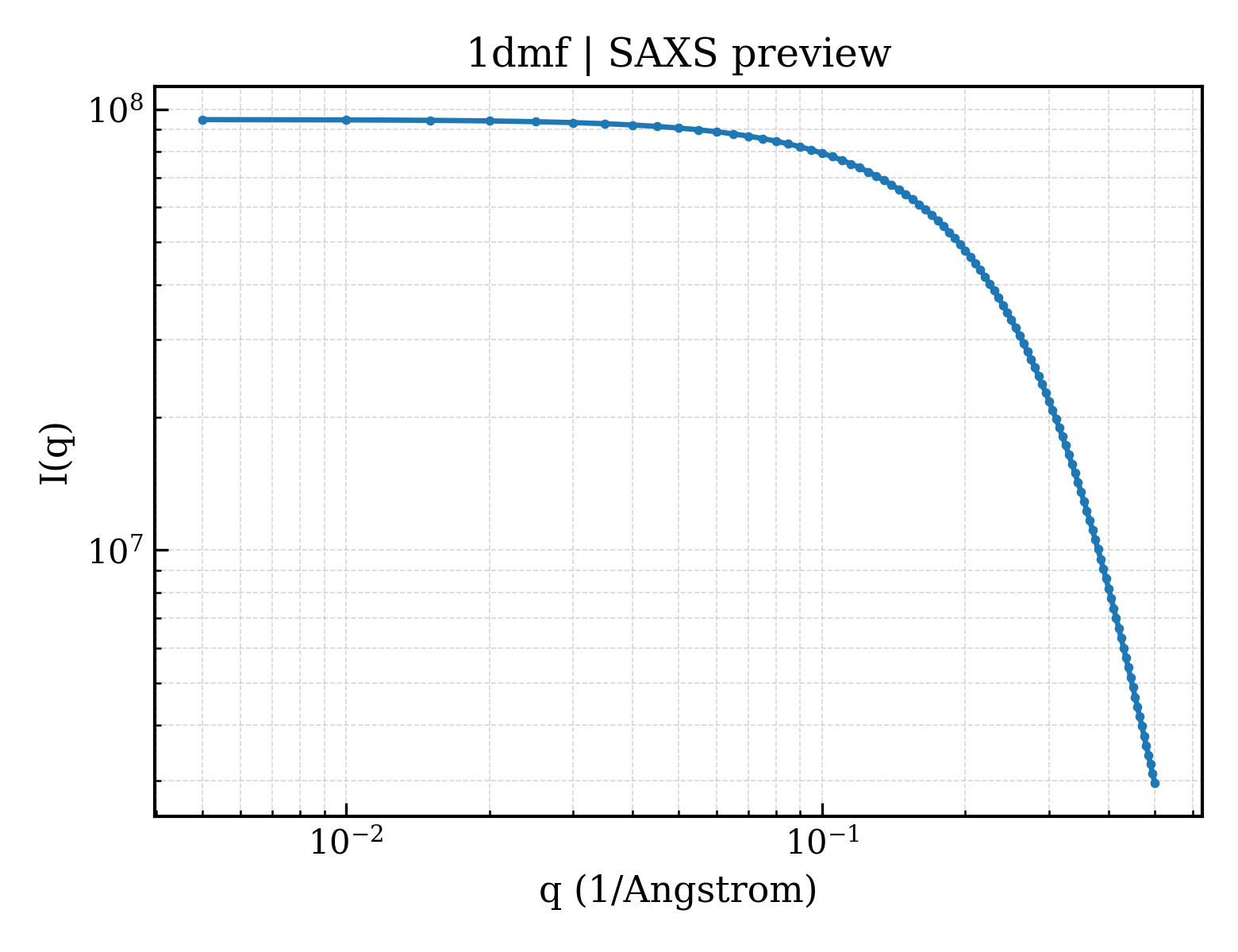

SAXS Profile

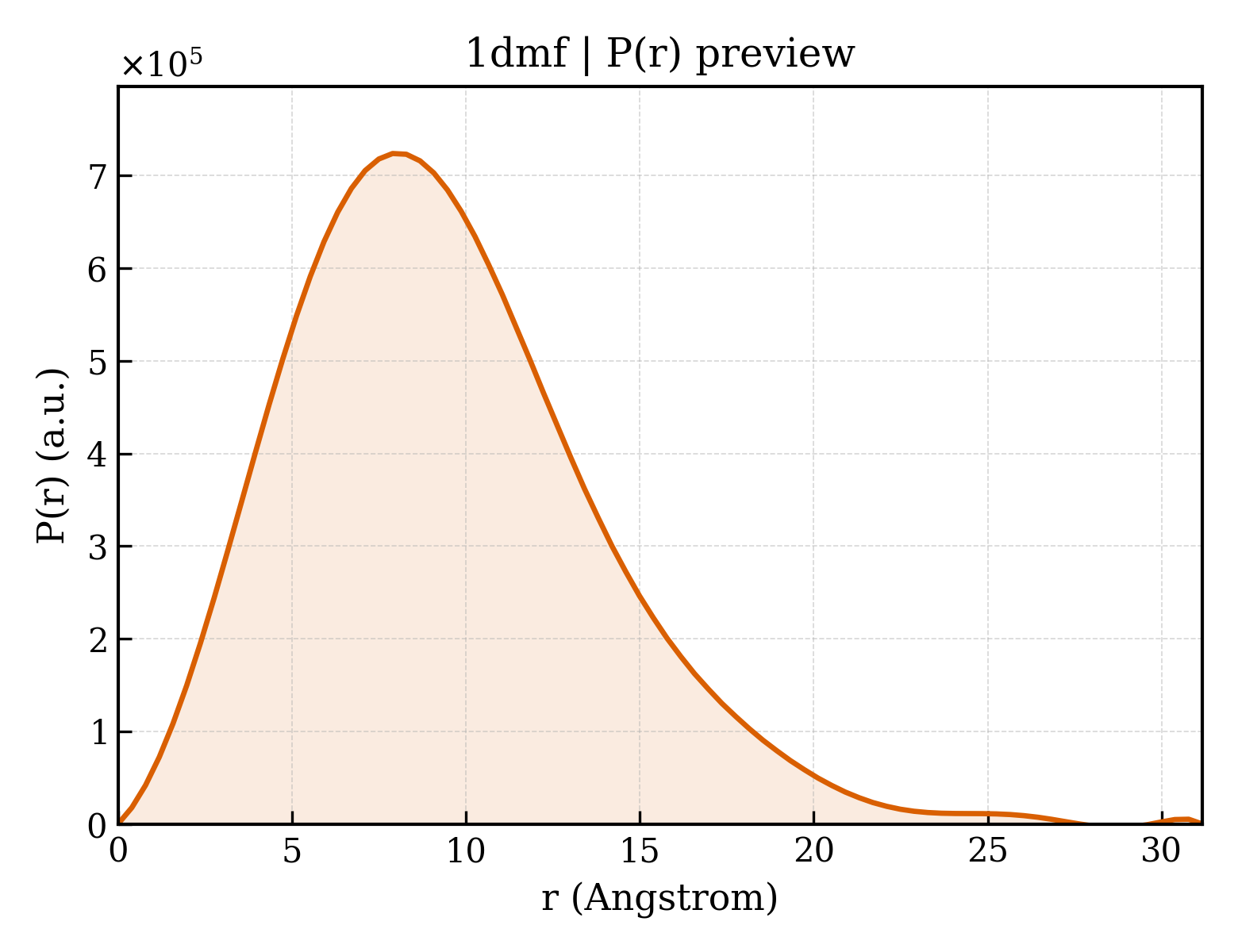

P(r) Distribution
1. Structure Basics
| entry_id | 1dmf |
| deposition_date | 1994-11-22 |
| title | ;THE THREE-DIMENSIONAL SOLUTION STRUCTURE OF CALLINECTES SAPIDUS METALLOTHIONEIN-I DETERMINED BY HOMONUCLEAR AND HETERONUCLEAR MAGNETIC RESONANCE SPECTOSCOPY ; |
| keywords | METALLOTHIONEIN; METALLOTHIONEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.23 Å |
| rg_electron | 7.82 Å |
| i0 | 94734600.00 |
| molecular_weight | 57232.0 kDa |
| excluded_volume | 60515 ų |
| envelope_volume | 9658 ų |
| shell_volume | 8008 ų |
| envelope_diameter | 34.1 Å |
| shell_rg | 16.00 Å |
| envelope_rg | 10.81 Å |
| shape_rg | 8.20 Å |
| total_rg | 7.31 Å |
| total_atoms | 6426 |
| n_residues | 504 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.2 Å |
| rg_real | 7.29 Å |
| rg_real_error | 0.53 Å |
| i0_real | 9.4730e+07 |
| i0_real_error | 1.0470e+06 |
| rg_reciprocal | 7.28 Å |
| i0_reciprocal | 94730000.0000 |
| total_estimate | 0.6246 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 7.9 Å |
| skewness | 0.650 |
| kurtosis | 0.516 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4858.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.292; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.241; Smooth: 0.000 |
