1dob

THE MOBIL FLAVIN OF 4-OH BENZOATE HYDROXYLASE: MOTION OF A PROSTHETIC GROUP REGULATES CATALYSIS

Method: X-RAY DIFFRACTION D_max: 72.0 Å Quality: GOOD

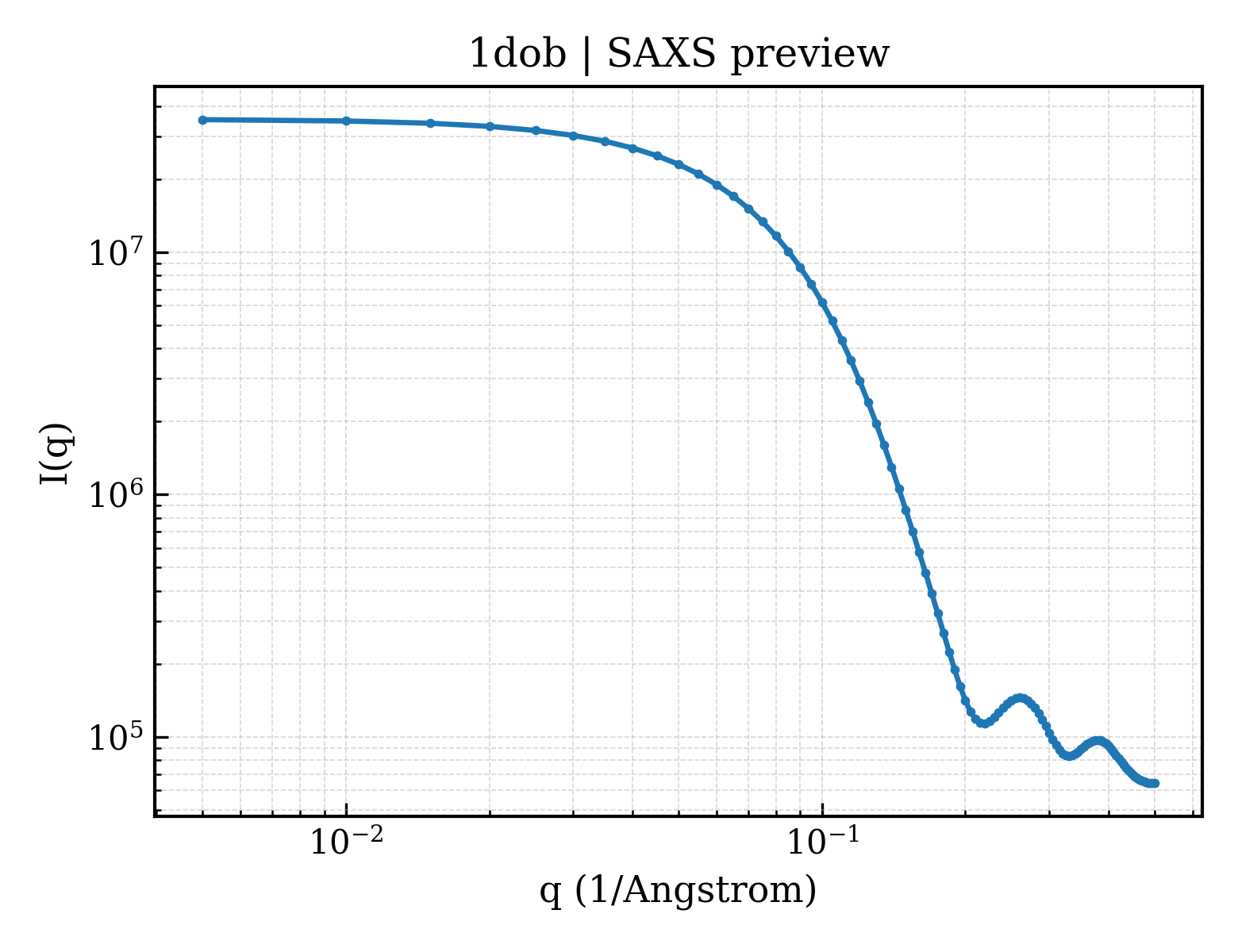

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1dob
deposition_date	1994-09-06
title	THE MOBIL FLAVIN OF 4-OH BENZOATE HYDROXYLASE: MOTION OF A PROSTHETIC GROUP REGULATES CATALYSIS
keywords	OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.67 Å
rg_electron	21.58 Å
i0	35310900.00
molecular_weight	45211.0 kDa
excluded_volume	56395 Å³
envelope_volume	66004 Å³
shell_volume	25188 Å³
envelope_diameter	74.0 Å
shell_rg	28.74 Å
envelope_rg	21.81 Å
shape_rg	21.59 Å
total_rg	22.44 Å
total_atoms	3186
n_residues	394
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	72.0 Å
rg_real	22.61 Å
rg_real_error	0.34 Å
i0_real	3.5310e+07
i0_real_error	4.7670e+05
rg_reciprocal	22.63 Å
i0_reciprocal	35310000.0000
total_estimate	0.8967
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.2 Å
skewness	0.299
kurtosis	-0.377
angular_range	— – 0.3500 Å⁻¹
current_alpha	0.0000
highest_alpha	11670000.0000
n_real_points	67
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.996

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	P-HYDROXYBENZOATE HYDROXYLASE
formula_weight	44366.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3368

MKTQVAIIGAGPSGLLLGQLLHKAGIDNVILERQTPDYVLGRIRAGVLEQGMVDLLREAGVDRRMARDGLVHEGVEIAFAGQRRRIDLKRLSGGKTVTVYGQTEVTRDLMEAREACGATTVYQAAEVRLHDLQGERPYVTFERDGERLRLDCDYIAGCDGFHGISRQSIPAERLKVFERVYPFGWLGLLADTPPVSHELIYANHPRGFALCSQRSATRSRYFVQVPLSEKVEDWSDERFWTELKARLPSEVAEKLVTGPSLEKSIAPLRSFVVEPMQHGRLFLAGDAAHIVPPTGAKGLNLAASDVSTLYRLLLKAYREGRGELLERYSAICLRRIWKAERFSWWMTSVLHRFPDTDAFSQRIQQTELEYYLGSEAGLATIAENYVGLPYEEIE

Source

organism	Pseudomonas aeruginosa
ncbi_taxonomy_id	287

Entity 2 non-polymer

description	FLAVIN-ADENINE DINUCLEOTIDE
formula_weight	785.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	P-HYDROXYBENZOIC ACID
formula_weight	138.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	159

▶

6. Citations (2)

▶

length_a	71.900 Å
length_b	145.940 Å
length_c	88.400 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.000 Å
resolution_low	15.000 Å
r_factor	0.2050
r_work	0.2050
r_free	—
