1d7l

;STRUCTURE-FUNCTION CORRELATIONS OF THE REACTION OF REDUCED NICOTINAMIDE ANALOGS WITH P-HYDROXYBENZOATE HYDROXYLASE SUBSTITUTED WITH A SERIES OF 8-SUBSTITUTED FLAVINS ;

Method: X-RAY DIFFRACTION Dmax: 81.5 Å Quality: GOOD

SAXS Profile

SAXS profile for 1d7l

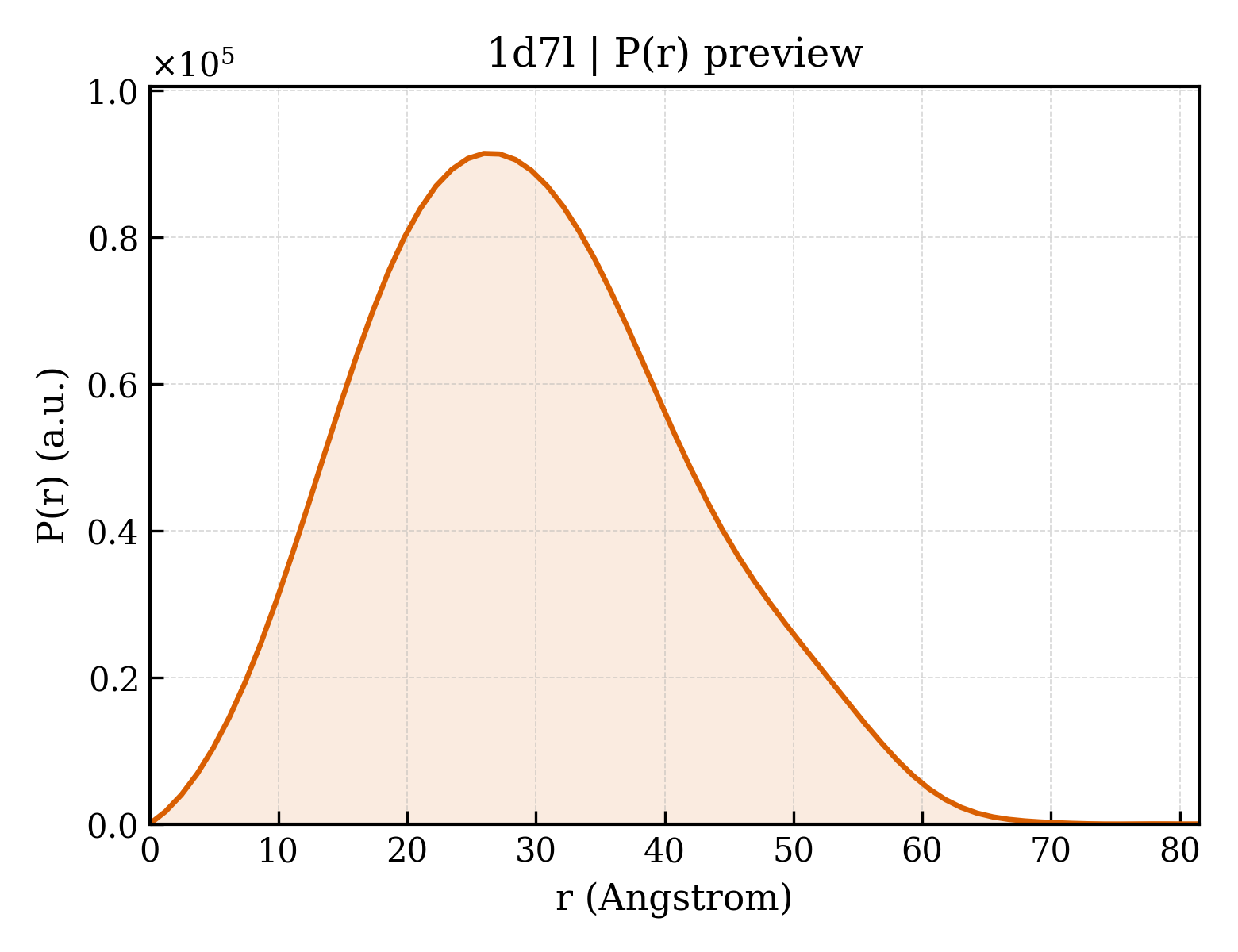

P(r) Distribution

P(r) distribution for 1d7l
▼

1. Structure Basics

entry_id1d7l
deposition_date1999-10-18
title;STRUCTURE-FUNCTION CORRELATIONS OF THE REACTION OF REDUCED NICOTINAMIDE ANALOGS WITH P-HYDROXYBENZOATE HYDROXYLASE SUBSTITUTED WITH A SERIES OF 8-SUBSTITUTED FLAVINS ;
keywordsPHBH, FLAVIN, SUBSTITUTED FLAVINS, OXIDOREDUCTASE; OXIDOREDUCTASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier22.47 Å
rg_electron21.44 Å
i036354800.00
molecular_weight45562.0 kDa
excluded_volume56622 ų
envelope_volume65310 ų
shell_volume25038 ų
envelope_diameter74.0 Å
shell_rg28.56 Å
envelope_rg21.73 Å
shape_rg21.45 Å
total_rg22.25 Å
total_atoms3205
n_residues394
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax81.5 Å
rg_real22.41 Å
rg_real_error0.71 Å
i0_real3.6350e+07
i0_real_error5.9320e+05
rg_reciprocal22.43 Å
i0_reciprocal36360000.0000
total_estimate0.7630
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary25.9 Å
skewness0.304
kurtosis-0.356
angular_range— – 0.3550 Å−1
current_alpha0.0000
highest_alpha13930000.0000
n_real_points67
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.646; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
