1dpd
;CRYSTALLOGRAPHIC AND ENZYMATIC INVESTIGATIONS ON THE ROLE OF SER558, HIS610 AND ASN614 IN THE CATALYTIC MECHANISM OF AZOTOBACTER VINELANDII DIHYDROLIPOAMIDE ACETYLTRANSFERASE (E2P) ;

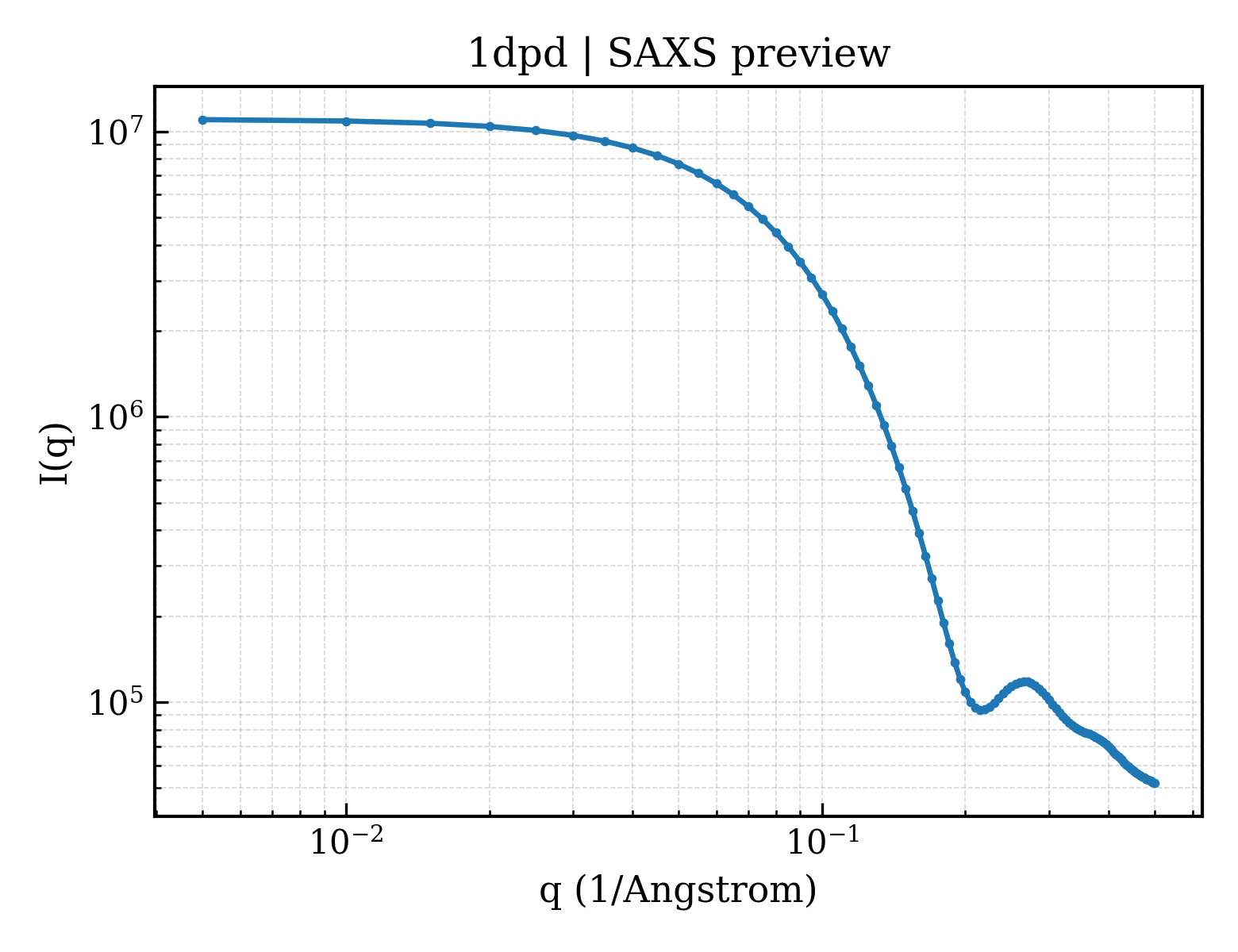

SAXS Profile

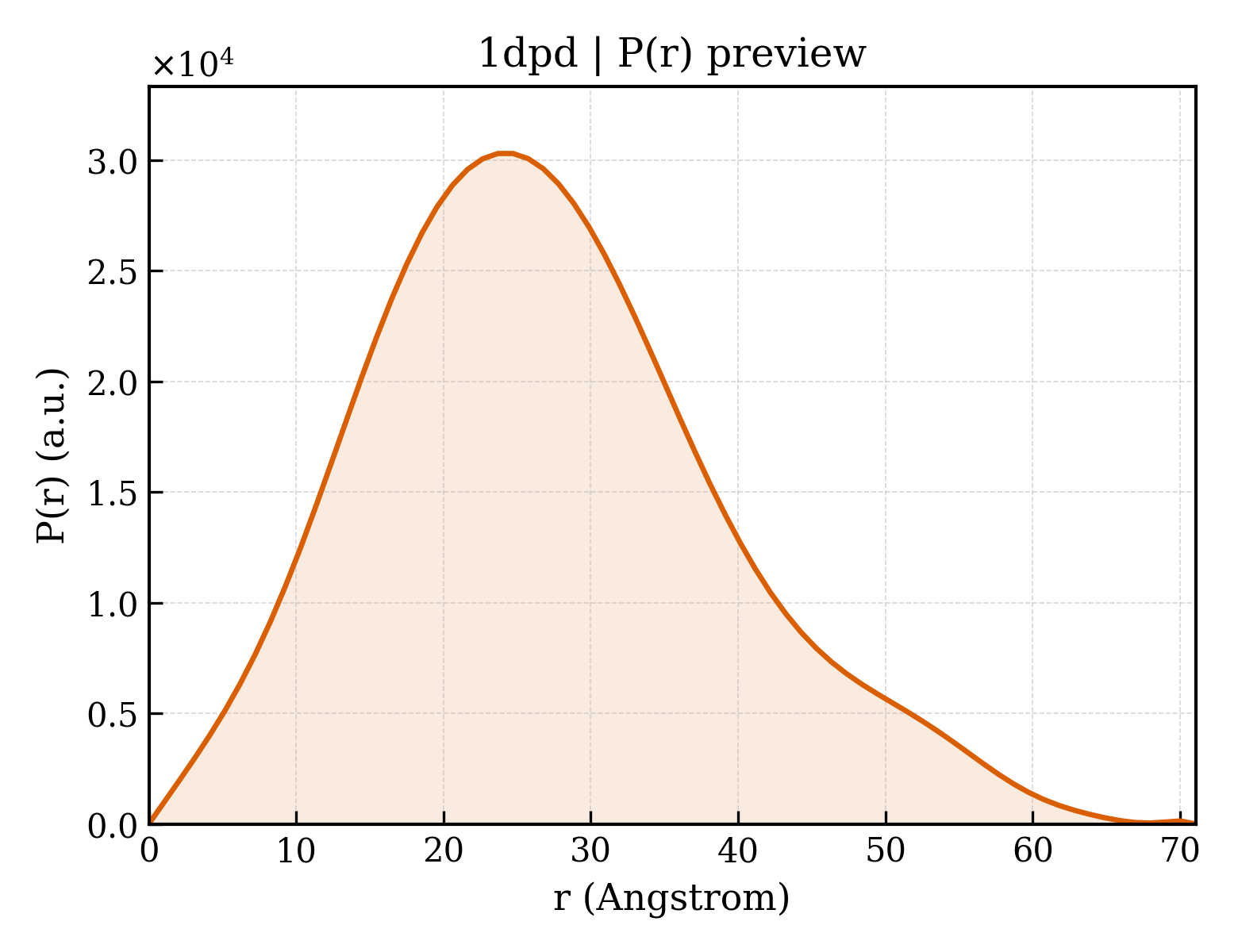

P(r) Distribution
1. Structure Basics
| entry_id | 1dpd |
| deposition_date | 1995-02-03 |
| title | ;CRYSTALLOGRAPHIC AND ENZYMATIC INVESTIGATIONS ON THE ROLE OF SER558, HIS610 AND ASN614 IN THE CATALYTIC MECHANISM OF AZOTOBACTER VINELANDII DIHYDROLIPOAMIDE ACETYLTRANSFERASE (E2P) ; |
| keywords | DIHYDROLIPOAMIDE ACETYLTRANSFERASE; DIHYDROLIPOAMIDE ACETYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.83 Å |
| rg_electron | 19.86 Å |
| i0 | 11034600.00 |
| molecular_weight | 25700.0 kDa |
| excluded_volume | 32772 ų |
| envelope_volume | 42435 ų |
| shell_volume | 18557 ų |
| envelope_diameter | 73.7 Å |
| shell_rg | 25.70 Å |
| envelope_rg | 20.83 Å |
| shape_rg | 19.89 Å |
| total_rg | 20.78 Å |
| total_atoms | 1811 |
| n_residues | 243 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 71.1 Å |
| rg_real | 20.86 Å |
| rg_real_error | 0.50 Å |
| i0_real | 1.1030e+07 |
| i0_real_error | 1.5480e+05 |
| rg_reciprocal | 20.86 Å |
| i0_reciprocal | 11030000.0000 |
| total_estimate | 0.8608 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 70.0 Å |
| skewness | 0.451 |
| kurtosis | -0.064 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1489000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.746; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.965 |
