1dpp

DIPEPTIDE BINDING PROTEIN COMPLEX WITH GLYCYL-L-LEUCINE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIPEPTIDE BINDING PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	GLYCINE × 1 LEUCINE × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	GLYCINE × 1 LEUCINE × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	GLYCINE × 1 LEUCINE × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	GLYCINE × 1 LEUCINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPPA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–507； UniProt 29–535 Author chain C； PDBConstruct 1–507； UniProt 29–535 Author chain E； PDBConstruct 1–507； UniProt 29–535 Author chain G； PDBConstruct 1–507； UniProt 29–535

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dpp
Deposition date deposition_date	1995-08-11
Structure title title	DIPEPTIDE BINDING PROTEIN COMPLEX WITH GLYCYL-L-LEUCINE
Keywords keywords	CHEMOTAXIS, COMPLEX (BINDING PROTEIN-PEPTIDE) COMPLEX, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dpp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dpp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

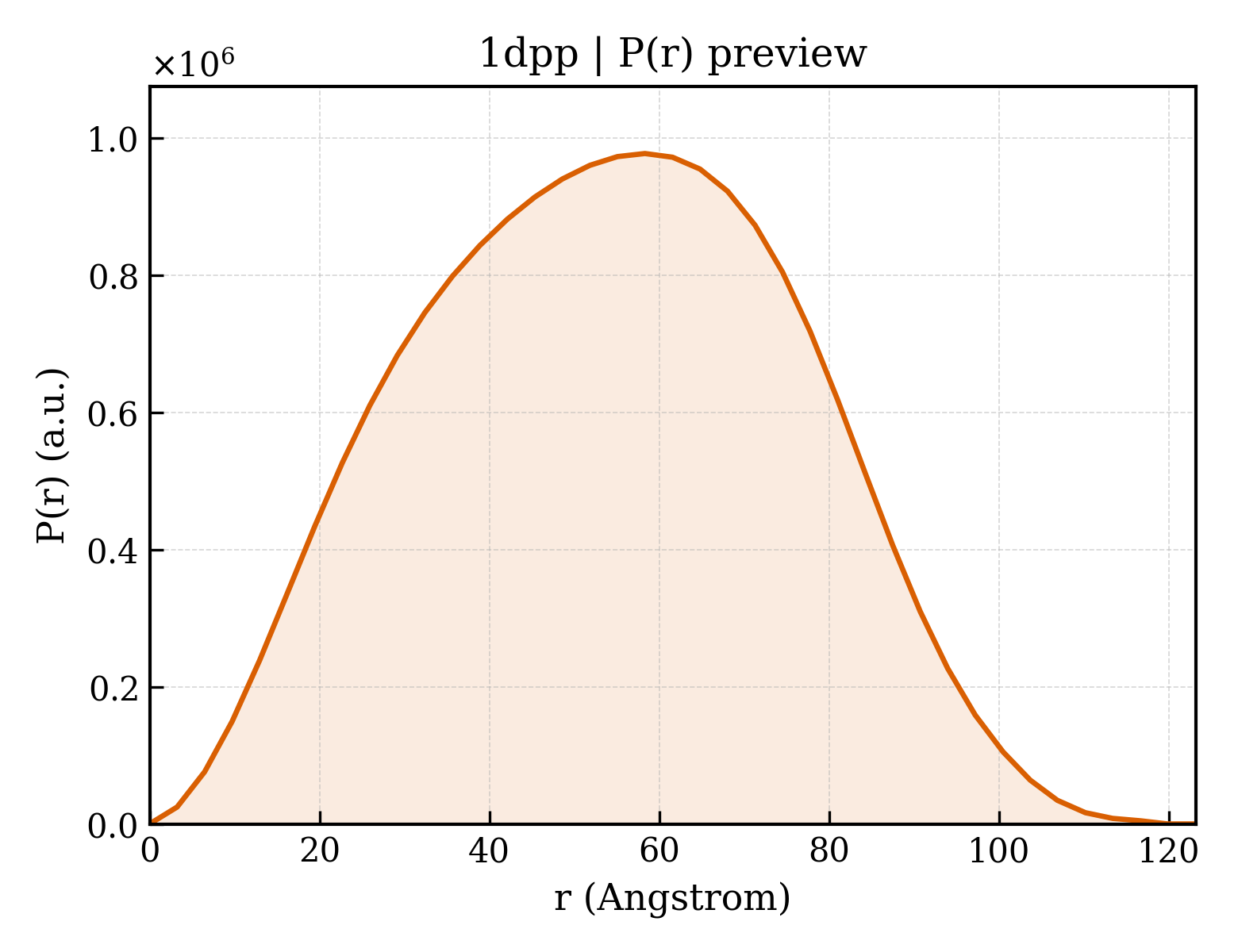

1dpp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.90 Å
Rg (electron density)	22.94 Å
Total Rg	23.93 Å
Atom count	4061
Residues	507
Excluded volume	72200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dpp__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1dpp__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1dpp__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1dpp__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DIPEPTIDE BINDING PROTEIN
Molecular weight formula_weight	57475.9 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	16244

KTLVYCSEGSPEGFNPQLFTSGTTYDASSVPLYNRLVEFKIGTTEVIPGLAEKWEVSEDGKTYTFHLRKGVKWHDNKEFKPTRELNADDVVFSFDRQKNAQNPYHKVSGGSYEYFEGMGLPELISEVKKVDDNTVQFVLTRPEAPFLADLAMDFASILSKEYADAMMKAGTPEKLDLNPIGTGPFQLQQYQKDSRIRYKAFDGYWGTKPQIDTLVFSITPDASVRYAKLQKNECQVMPYPNPADIARMKQDKSINLMEMPGLNVGYLSYNVQKKPLDDVKVRQALTYAVNKDAIIKAVYQGAGVSAKNLIPPTMWGYNDDVQDYTYDPEKAKALLKEAGLEKGFSIDLWAMPVQRPYNPNARRMAEMIQADWAKVGVQAKIVTYEWGEYLKRAKDGEHQTVMMGWTGDNGDPDNFFATLFSCAASEQGSNYSKWCYKPFEDLIQPARATDDHNKRVELYKQAQVVMHDQAPALIIAHSTVFEPVRKEVKGYVVDPLGKHHFENVSIE

Entity 2 Entity 2 non-polymer

Description description	GLYCINE
Molecular weight formula_weight	75.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	LEUCINE
Molecular weight formula_weight	131.2 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1dppa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1dppc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1dppe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

Domain ID domain_id	d1dppg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

CATH v4.4 (12 domains)

Domain ID domain_id	1dppA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	76 — Dipeptide-binding Protein; domain 1
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 1

Domain ID domain_id	1dppA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1dppA03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	105 — Dipeptide-binding Protein; domain 3
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 3

Domain ID domain_id	1dppC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	76 — Dipeptide-binding Protein; domain 1
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 1

Domain ID domain_id	1dppC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1dppC03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	105 — Dipeptide-binding Protein; domain 3
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 3

Domain ID domain_id	1dppE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	76 — Dipeptide-binding Protein; domain 1
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 1

Domain ID domain_id	1dppE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1dppE03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	105 — Dipeptide-binding Protein; domain 3
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 3

Domain ID domain_id	1dppG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	76 — Dipeptide-binding Protein; domain 1
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 1

Domain ID domain_id	1dppG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1dppG03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	105 — Dipeptide-binding Protein; domain 3
Homologous superfamily homologous superfamily	10 — Dipeptide-binding Protein; Domain 3

▶

Unit-cell length a length_a	182.570 Å
Unit-cell length b length_b	182.570 Å
Unit-cell length c length_c	211.880 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2400
